Overview

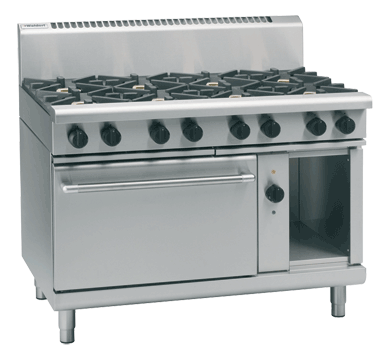

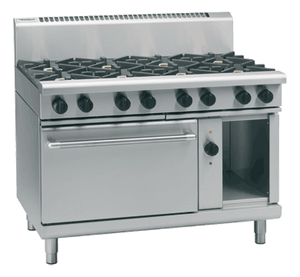

Waldorf RNL8810GEC 800 Series 1200mm Gas Range Electric Convection Oven Low Back Version

The Waldorf RNL8810GEC is a heavy-duty 1200mm wide gas range and electric convection oven combination from the respected 800 Series, designed and built in New Zealand for the demands of high-volume commercial kitchens. The cooktop features eight open burners each rated at 28MJ/hr, while the underbench 2/1 GN electric convection oven delivers consistent, fan-forced heat across four shelves with a temperature range of 150 to 300°C.

Constructed from 304 stainless steel throughout, this unit combines practical features including flame failure protection on all burners, a vitreous enamel-lined oven cavity, removable cast iron burners and pot stands, and a storage cabinet on the right-hand side. Adjustable feet and two additional rollers make positioning straightforward, while the low back configuration suits kitchens where overhead clearance or ventilation canopy height is a consideration.

Key Benefits

• Eight high-output open burners at 28MJ/hr each provide rapid, responsive heat for woks, stockpots and sauté pans simultaneously, supporting fast-paced service.
• The 2/1 GN electric convection oven with fan-forced airflow ensures even heat distribution across all four shelves, reducing hot spots and delivering consistent baking and roasting results in every batch.
• Flame failure protection on every burner automatically cuts gas flow if a flame is extinguished, improving safety for kitchen staff throughout service.
• Removable cast iron burners and vitreous enamel pot stands simplify day-to-day cleaning and maintenance, minimising downtime between services.
• A welded, vitreous enamel-lined oven cavity resists staining and is straightforward to wipe down, supporting food safety and hygiene standards.
• The storage cabinet on the right-hand side keeps essential items within reach at the cooking station, improving workflow efficiency.
• Adjustable feet and two additional rollers allow the unit to be levelled on uneven floors and repositioned during kitchen reconfiguration or deep cleaning.
• The cool touch stainless steel door handle reduces burn risk when accessing the oven during continuous use.
• The low back design offers flexibility in kitchen layouts where canopy height or overhead clearance is limited, without compromising cooking performance.

Key Features

• Eight open burners, each rated at 28MJ/hr, totalling 224MJ/hr combined cooktop output
• 2/1 GN capacity electric convection oven with fan-forced heat distribution
• Four oven shelves included
• Thermostatic oven temperature control ranging from 150 to 300°C
• Flame failure safety protection fitted to all burners
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands for durable, easy-clean burner surrounds
• Oven cavity welded construction with vitreous enamel lining for hygiene and longevity
• Drop down oven door with welded frame for robust, long-term use
• Cool touch stainless steel oven door handle
• Heavy-duty reinforced control knobs suited to intensive daily use
• Storage cabinet located on the right-hand side
• Splashback included
• 304 stainless steel construction throughout
• Low back configuration for flexible installation in height-restricted spaces
• Adjustable feet for levelling on uneven surfaces
• Two additional rollers for ease of repositioning
• Compatible with both natural gas and LPG; gas connection R 3/4 (BSP) male
• Electrical supply: 415V 3-phase, 6.6kW power rating
• Analog display type
• Country of origin: New Zealand
• Note: product image may depict the standard back version (RN8810GEC)

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
