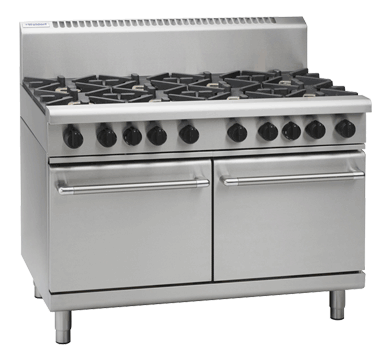

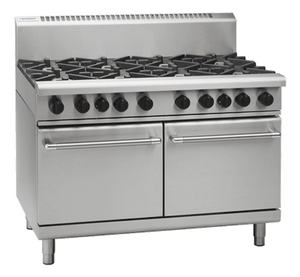

Waldorf RNL8820G 800 Series 1200mm Gas Range Static Oven Low Back Version

The Waldorf RNL8820G is a heavy-duty 1200mm gas range from the renowned 800 Series, combining an eight-burner cooktop with two 1/1 GN gas static ovens in a single, robust unit suited to high-volume commercial kitchens. Constructed from 304 stainless steel and manufactured in New Zealand, it delivers a total burner output of 224 MJ/h across eight 28 MJ/h open burners, with oven temperatures adjustable between 150 and 300°C for versatile cooking applications.

Designed with the demands of busy kitchen operations in mind, the RNL8820G features flame failure protection on every burner, vitreous enamel-lined welded oven cavities, and removable cast iron burners and pot stands for thorough cleaning. Adjustable feet and two additional rollers simplify positioning and routine servicing, while heavy-duty reinforced control knobs and a cool-touch stainless steel door handle contribute to safe, comfortable day-to-day use.

Key Benefits

• Eight high-output open burners delivering 28 MJ/h each provide ample, responsive heat across the full width of the cooktop for simultaneous multi-pan cooking.
• Two 1/1 GN gas static ovens offer practical capacity for commercial baking and roasting output, accommodating standard gastronorm trays directly.
• Flame failure protection on all burners automatically cuts gas supply if a flame extinguishes, reducing safety risks in busy kitchen environments.
• Vitreous enamel-lined welded oven cavities are highly resistant to staining and are straightforward to wipe clean after service.
• Removable cast iron burners and vitreous enamel pot stands can be lifted out quickly, making deep cleaning faster and less labour-intensive.
• Adjustable feet combined with two additional rollers allow easy repositioning of the unit for installation, cleaning behind the range, and routine servicing.
• The drop-down oven door with welded frame and cool-touch stainless steel handle provides safe, ergonomic access to the oven cavity during service.
• Compatible with both natural gas and LPG via a 3/4 BSP male connection, giving flexibility across different site configurations.
• Heavy-duty reinforced control knobs and a robust 304 stainless steel exterior are built to withstand the wear of continuous commercial use.

Key Features

• Eight-burner cooktop range with eight 28 MJ/h open burners, total output 224 MJ/h (62.2 kW)
• Two 1/1 GN gas static ovens with thermostatic temperature control ranging from 150 to 300°C
• Flame failure protection fitted to all burners as a standard safety feature
• Removable heavy-duty cast iron burners for easy access and thorough cleaning
• Vitreous enamel pot stands, removable for cleaning
• Oven cavity is welded construction lined with vitreous enamel for durability and easy maintenance
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs with analog display
• Four oven shelves included
• Heavy-duty 304 stainless steel construction throughout
• Integrated splashback
• Adjustable feet and two additional rollers for easy repositioning and servicing
• Dual fuel compatibility: natural gas and LPG
• Gas connection: R 3/4 (BSP) male
• Low back version configuration
• No undershelf
• Manufactured in New Zealand
• 24-month warranty
• Packed weight 383 kg

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 383.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 8
• Power Rating: 62.2 kW
• Temperature Control: Thermostatic
• Display Type: Analog
