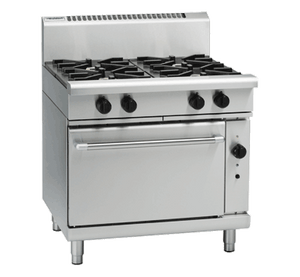

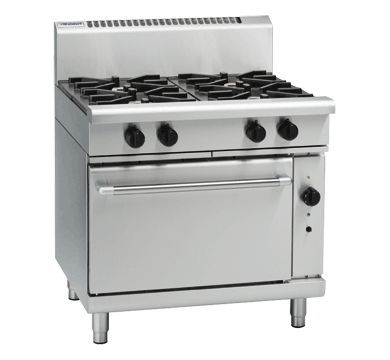

Waldorf RNL8910GC 800 Series 900mm Gas Range Convection Oven Low Back Version

The Waldorf RNL8910GC is a 900mm wide gas range convection oven from the respected 800 Series, built in New Zealand for the rigours of high-volume commercial kitchens. It combines a four-burner open cooktop with a 2/1 GN gas convection oven in a low back configuration, finished throughout in heavy-duty 304 stainless steel and sized to fit tightly into professional kitchen lines.

The convection oven uses a heavy-duty motor and circulation fan to reduce cooking times and allow food to be cooked at lower temperatures than conventional ovens, while cast iron sole plates deliver consistent, even heat distribution across the oven floor. Flame failure protection on all burners, vitreous enamel lining and cool-touch door hardware reflect the practical safety and hygiene priorities of busy foodservice operations.

Key Benefits

• Fan-forced air circulation cuts cooking times and allows lower oven temperatures, saving energy and reducing the risk of overcooking.
• 2/1 GN oven capacity accommodates full gastronorm trays, supporting high-volume batch cooking for cafes, restaurants and catering operations.
• Flame failure protection on every burner automatically cuts gas supply if a flame is extinguished, protecting staff and equipment.
• Cast iron sole plates distribute heat evenly across the oven floor, eliminating hot spots and producing consistent results tray after tray.
• Vitreous enamel oven lining and vitreous enamel pot stands resist staining and are straightforward to wipe clean, reducing end-of-service labour.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit on the kitchen floor quick and simple.
• Heavy-duty reinforced control knobs and a drop-down door with welded frame are built to withstand the punishment of continuous daily use.
• Cool-touch stainless steel door handle reduces burn risk during busy service periods when the oven door is opened repeatedly.
• Compatible with both natural gas and LPG, giving operators flexibility when connecting to existing kitchen gas supplies.

Key Features

• Four-burner open cooktop range with 4 x 28MJ/hr patented open burners delivering a total of 112MJ/hr cooktop output.
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan for reduced cooking times and lower temperature operation.
• Cast iron sole plates inside the oven for even heat distribution across the full oven floor.
• Oven temperature range of 150-300°C with thermostatic control and analogue display.
• Flame failure protection fitted to all cooktop burners.
• Removable heavy-duty cast iron burners for easy cleaning and service access.
• Vitreous enamel pot stands that are removable for thorough cleaning.
• Drop-down oven door with welded frame for structural rigidity and ease of access.
• Oven interior welded and lined with vitreous enamel for durability and simple cleaning.
• Cool-touch stainless steel door handle for safe operation during service.
• Heavy-duty reinforced control knobs designed for long-term commercial use.
• Low back (splashback) configuration suited to under-canopy or counter-height installations.
• Adjustable feet plus two additional rollers for easy positioning and precise levelling.
• Heavy-duty 304 stainless steel construction throughout.
• 900mm wide footprint with a depth of 805mm, fitting standard commercial kitchen lines.
• Electrical supply: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz (fan motor).
• Gas connection via R 3/4 (BSP) male fitting, compatible with natural gas and LPG.
• Two oven shelves included as standard.
• Manufactured in New Zealand.
• Note: product images may show the standard back version (RN8910GC); the RNL8910GC is the low back variant.

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
