Overview

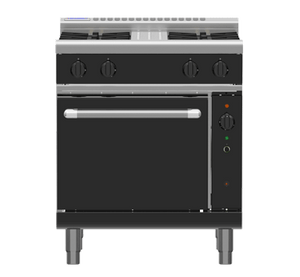

Waldorf RNLB8510GC Bold 750mm Gas Range Convection Oven Low Back Version

The Waldorf RNLB8510GC is part of the Bold series, combining a four-burner gas cooktop with a 1/1 GN gas convection oven in a compact 750mm-wide, low back configuration. Each of the four open burners delivers a patented 28MJ/hr output, while the fan-forced convection oven operates across a thermostatic range of 150 to 300°C, enabling reduced cooking times and consistent results across both roasting and baking applications. Constructed from 304 stainless steel and manufactured in New Zealand, this unit is built to withstand the rigours of high-volume commercial kitchen environments.

Designed with practicality in mind, the RNLB8510GC features flame failure protection on every burner, removable cast iron burners with vitreous enamel pot stands, and an oven cavity lined in welded vitreous enamel for straightforward cleaning. The drop-down door with welded frame, cool touch stainless steel door handle, adjustable feet, and two additional rollers all contribute to safe, ergonomic daily operation. Available in the default Bold black finish or alternative colour options, this range suits cafes, restaurants, bakeries, and any commercial kitchen requiring reliable, high-output gas cooking.

Key Benefits

• Patented 28MJ/hr open burners on each of the four cooktop positions deliver exceptional heat output for rapid cooking and searing.
• Fan-forced convection circulation promotes even heat distribution throughout the oven cavity, reducing cooking times and allowing lower temperature settings.
• Flame failure protection on all burners automatically cuts the gas supply if a flame is extinguished, improving kitchen safety.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe down, reducing cleaning time between services.
• Removable cast iron burners simplify maintenance and allow thorough cleaning without specialist tools.
• Adjustable feet combined with two additional rollers make positioning and levelling on site faster and easier.
• Compatible with both natural gas and LPG, providing flexibility for a wider range of kitchen installations.
• Available in multiple colour options beyond the standard black, supporting kitchen design requirements or brand consistency.

Key Features

• Four-burner gas cooktop range with 1/1 GN gas convection oven below
• Four patented 28MJ/hr open burners (total cooktop output 112MJ/hr)
• Flame failure protection fitted to all burners as standard
• Removable heavy-duty cast iron burners for easy cleaning and maintenance
• Vitreous enamel pot stands that lift out for cleaning
• Oven cavity welded and lined with vitreous enamel for durability and hygiene
• Cast iron sole plates in the oven for even heat distribution
• Heavy-duty motor and circulation fan enabling convection cooking
• Thermostatic oven temperature control ranging from 150°C to 300°C
• Drop-down oven door with welded frame for robust, long-term use
• Cool touch stainless steel door handle for safe operation during service
• Heavy-duty reinforced control knobs designed for frequent commercial use
• 304 stainless steel construction throughout
• Low back (splashback) configuration at 750mm width
• Adjustable feet with two additional rollers for site positioning
• Electrical supply: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz (fan motor)
• Gas connection: R 3/4 (BSP) male, compatible with natural gas and LPG
• Default colour is black; additional colour options available as part of the Bold range
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
