Overview

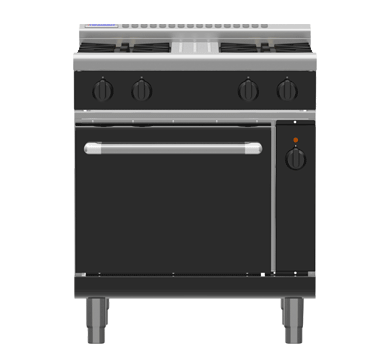

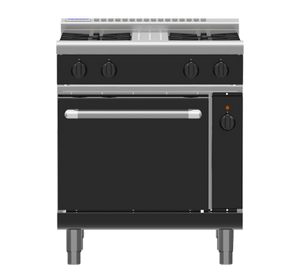

Waldorf Bold Series RNLB8510GEC 750mm Gas Cooktop with Electric Convection Oven, Low Back Configuration

The Waldorf RNLB8510GEC belongs to the well-regarded Bold Series and pairs a four-burner gas cooktop with a 1/1 GN electric convection oven in a 750mm wide unit featuring a low back splashback design. Built in New Zealand from 304 stainless steel, this model is engineered for high-demand commercial kitchens, bakeries and cafes that require serious cooking output from a single, space-efficient appliance.

The cooktop section houses four patented 28MJ/hr open burners, each fitted with flame failure safety devices and supported by removable heavy-duty cast iron burners and vitreous enamel pot stands. Underneath, the electric convection oven uses a heavy-duty motor and circulation fan to deliver consistent results across its full 150 to 300°C temperature range, while a welded vitreous enamel-lined cavity keeps cleaning straightforward and supports long-term durability.

Key Benefits

• Fan-forced convection circulates heat evenly throughout the oven cavity, producing consistent baking and roasting results across every tray with no hot spots.
• Four high-output 28MJ/hr open burners totalling 112MJ/hr provide rapid, powerful cooktop performance to handle heavy service periods without slowing kitchen throughput.
• Flame failure protection on every burner automatically cuts the gas supply if a flame is extinguished, reducing safety risks in busy kitchen environments.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe down, minimising cleaning time between services.
• Adjustable feet combined with two additional rollers allow precise levelling during installation and easy repositioning for cleaning or servicing.
• A cool touch stainless steel door handle and drop-down oven door with welded frame make safe, one-handed access practical during fast-paced service.
• Available in the default black finish or custom colour options, making it straightforward to match the unit to existing kitchen aesthetics or brand requirements.
• A 1/1 GN-compatible oven cavity accommodates standard gastronorm trays, simplifying workflow and reducing the need for custom cookware.

Key Features

• Four-burner gas cooktop with four patented 28MJ/hr open burners, totalling 112MJ/hr combined output
• Flame failure protection fitted to all four burners as standard
• Removable heavy-duty cast iron burners for easy cleaning and replacement
• Vitreous enamel pot stands, removable for thorough cleaning
• 1/1 GN electric convection oven with heavy-duty motor and circulation fan
• Oven temperature range: 150 to 300°C with thermostatic control
• Welded oven cavity lined with vitreous enamel for durability and easy maintenance
• Drop-down oven door with welded frame construction
• Cool touch stainless steel door handle
• Heavy-duty reinforced control knobs
• 304 stainless steel construction throughout
• Low back (splashback) configuration
• Two oven shelves included
• Adjustable feet and two additional rollers for levelling and manoeuvrability
• Default colour is black; additional custom colour options available
• Gas connection: R 3/4 BSP male, compatible with natural gas and LPG
• Electrical supply: 415V, 3-phase; 5.6kW power rating
• 750mm wide footprint suits tight kitchen layouts
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 750
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 1 phase connection|5.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
