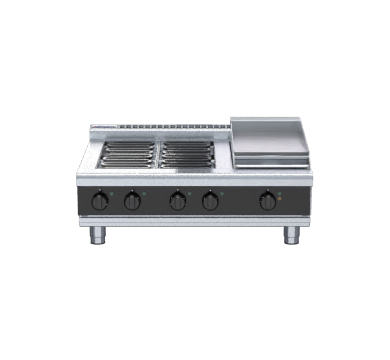

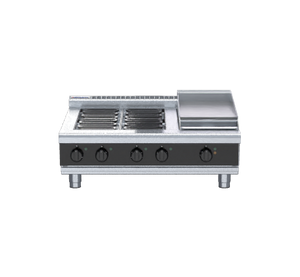

Waldorf Bold RNLB8603E-B 900mm Electric Cooktop Low Back Version Bench Model

The Waldorf Bold RNLB8603E-B is a 900mm wide electric cooktop bench model designed for demanding commercial kitchen environments. It combines four 2.4kW open radiant elements with a 3.6kW thermostatically controlled 300mm griddle section positioned on the right-hand side as standard, delivering a total power output of 13.2kW on a 415V three-phase supply. The unit is built in New Zealand to the robust standards of the Waldorf Bold range, with heavy-duty 304 stainless steel construction throughout and a default black colour finish with additional colour options available.

Mounted on four 63mm diameter stainless steel bench legs with adjustable feet, the RNLB8603E-B sits at a working height adjustable between 80mm and 105mm, making it easy to integrate into existing kitchen setups. Vitreous enamelled element module spill trays and a stainless steel hob spill tray simplify cleaning, while front-accessible servicing means minimal downtime during busy service periods. Optional hot plate elements provide further configuration flexibility, making this cooktop a versatile centrepiece for high-volume cooking operations.

Key Benefits

• Four independent radiant elements deliver responsive, controllable heat across the full cooktop surface, suited to simultaneous multi-pan cooking.
• The integrated 300mm griddle section with a dedicated 3.6kW element and 50-320°C thermostat enables precise flat-top cooking alongside open-element cooking in a single compact unit.
• Adjustable bench legs (80-105mm height range) allow the unit to be levelled and matched to existing bench heights for ergonomic working conditions.
• All serviceable components are accessible from the front of the unit, reducing the need to move heavy equipment and minimising kitchen disruption during maintenance.
• Stainless steel spill trays beneath both the radiant element and griddle sections collect food debris and grease, making routine cleaning quick and hygienic.
• Heavy-duty reinforced control knobs with clearly visible settings and individual power and heating indicator lights give operators at-a-glance confidence during busy service.
• The 12mm thick mild steel griddle plate with 2.5mm stainless steel splash guards provides a durable, even cooking surface capable of withstanding high-volume commercial use.
• Optional hot plate elements allow the configuration to be tailored to specific menu requirements without replacing the entire unit.
• A 24-month warranty and New Zealand manufacture back the unit with reliable after-sales support appropriate for commercial kitchen investment.

Key Features

• Four 2.4kW open radiant elements housed in heavy-duty welded element frames
• One 3.6kW griddle element controlling a 300mm griddle section, positioned on the right-hand side as standard
• Total power output 13.2kW; 415V three-phase supply (3P+N+E, 400-415Vac, 50/60Hz, 20A/phase max.)
• Six temperature settings plus simmer setting on radiant element controls via energy regulator
• Griddle thermostat range 50-320°C per 300mm section
• Individual power and heating indicator lights for each element control
• Large heat-resistant reinforced control knobs with easy-view settings
• 12mm thick mild steel griddle plates with 2.5mm 304 stainless steel splash guards
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module spill tray and stainless steel hob spill tray for easy cleaning
• Aluminised steel internal construction
• 2.0kW hot plate elements with machine-finished 8mm steel plate (optional configuration)
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable working height 80-105mm
• Front-access servicing for all components
• Heavy-duty stainless steel external finish; default colour black with additional colour options available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 370
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24.0
• Temperature Range: 100-290°C
• Fuel Type: Electric
• Griddle Surface: Smooth
• Power Rating: 13.2 kW|20A/phase max.|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
