Overview

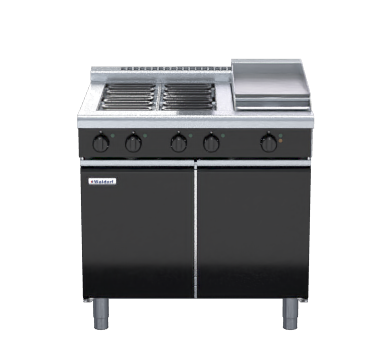

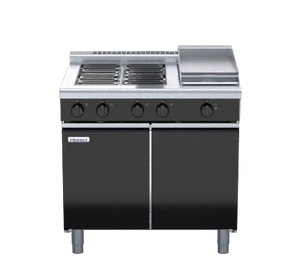

Waldorf Bold RNLB8603E-CD 900mm Electric Cooktop Low Back Version Cabinet Base

The Waldorf Bold RNLB8603E-CD is a 900mm wide electric cooktop on a cabinet base, combining four 2.4kW radiant elements with a 300mm griddle section positioned on the right-hand side as standard. Built for the demands of high-volume commercial kitchens, it features heavy-duty stainless steel construction throughout, reinforced control knobs, and a fully modular cabinet base that pairs seamlessly with other units in the Waldorf Bold suite.

Designed for straightforward daily operation and easy maintenance, all components are accessible from the front of the unit, simplifying cleaning and servicing without disrupting kitchen workflow. Six temperature settings plus a simmer setting across the radiant elements, combined with a 50 to 320 degree Celsius thermostat on the griddle section, provide precise heat control for a wide range of cooking tasks. Optional hot plate elements and a choice of colour finishes beyond the standard black allow the unit to be configured to suit individual kitchen requirements.

Key Benefits

• Four independent 2.4kW radiant elements deliver responsive, even heat suited to a variety of pots and pans simultaneously during peak service periods.
• A 300mm griddle section with a dedicated 3.6kW element and thermostat control from 50 to 320 degrees Celsius gives chefs precise temperature management for proteins, vegetables and breakfast items.
• Six temperature settings plus a simmer setting on each radiant element allow delicate heat reduction without requiring constant manual adjustment.
• Front-only access to all internal components means servicing and cleaning can be carried out quickly in tight kitchen layouts without pulling the unit away from the wall.
• Stainless steel spill trays beneath both the radiant element and griddle sections capture food and liquid run-off, keeping maintenance fast and hygienic.
• Fully modular cabinet base with double-skin stainless steel construction matches adjacent Bold suite equipment for a cohesive suite finish and accepts optional GN 1/1 racking for storage flexibility.
• Adjustable feet and two additional rollers make installation positioning straightforward and allow fine-levelling on uneven floors.
• Heavy-duty reinforced, heat-resistant control knobs with easy-view settings reduce the risk of misreading heat levels during busy service.
• Optional hot plate elements and additional colour finishes provide configuration flexibility to match specific menu requirements and kitchen aesthetics.

Key Features

• 4 x 2.4kW open radiant elements housed in heavy-duty welded element frames
• 1 x 3.6kW griddle element with 12mm thick mild steel griddle plate, 300mm section positioned on the right-hand side as standard
• Griddle thermostat control from 50 to 320 degrees Celsius per 300mm griddle section
• Six temperature settings plus a simmer setting on radiant element controls
• Energy regulator controls for both radiant and hot plate elements
• Indicator lights for power and heating status on each element control
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• 2.5mm 304 stainless steel griddle splash guards
• Vitreous enamelled element module spill tray
• Stainless steel hob spill tray
• Aluminised steel internal construction
• Large heat-resistant reinforced control knobs with easy-view settings
• Optional 2.0kW hot plate elements with machine-finished 8mm steel plate
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• Fully modular cabinet base for matched suite finish with other Waldorf Bold units
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for ease of repositioning during installation
• Optional GN 1/1 four-position racking kit available for one or two cabinet bays, accommodating up to eight 65mm GN 1/1 containers
• Front fixed panel with all servicing and cleaning access from the front of the unit
• Standard colour is black with additional colour options available
• Low back version suited to under-canopy or counter-height installation configurations

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
