Overview

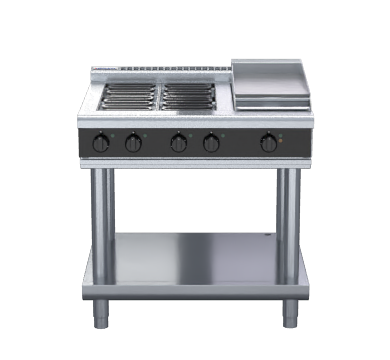

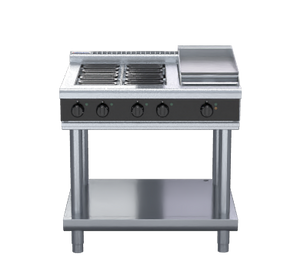

Waldorf Bold RNLB8603E-LS 900mm Electric Cooktop Low Back Version Leg Stand

The Waldorf Bold RNLB8603E-LS is a 900mm electric cooktop combining four 2.4kW radiant elements with a 300mm griddle section, mounted on a heavy-duty leg stand. Constructed from 304 stainless steel throughout, this unit delivers versatile high-output cooking across both radiant and griddle surfaces, making it well suited to busy commercial kitchens requiring consistent, controllable heat in a single compact footprint.

The cooktop features a welded hob, vitreous enamelled spill trays, 12mm mild steel griddle plates, and heat-resistant reinforced control knobs with indicator lights for each element. The matching leg stand assembles quickly without tools, supports a full-width lower shelf, and includes adjustable feet plus two additional rollers for straightforward positioning and levelling on site.

Key Benefits

• Four independently controlled 2.4kW radiant elements deliver responsive, even heat across a wide cooking surface to support simultaneous multi-pan service.
• A dedicated 3.6kW griddle element with 50–320°C thermostat control enables precise temperature management for grilling, searing and toasting alongside open-element cooking.
• Six temperature settings plus a simmer setting on each radiant element give chefs the flexibility to hold sauces gently or bring large volumes to a rapid boil.
• Indicator lights for power and heating on every element control let kitchen staff monitor cooking status at a glance without interrupting workflow.
• All internal components and controls are accessible from the front of the unit, minimising downtime during routine cleaning and servicing.
• Stainless steel spill trays under both the open radiant and griddle sections contain overflow and simplify daily clean-down.
• Adjustable feet and two integrated rollers make levelling and repositioning straightforward, even on uneven floors or during kitchen reconfiguration.
• The leg stand assembles without tools, includes a full-width lower shelf with a stainless steel backstop panel, and is fully modular for a matched suite finish with other Waldorf Bold equipment.
• Optional hot plate elements provide further configuration flexibility for kitchens whose menus evolve over time.

Key Features

• 4 x 2.4kW open radiant elements set in heavy-duty welded element frames
• 1 x 3.6kW griddle element with 12mm thick mild steel griddle plate; griddle positioned on the right-hand side as standard
• 50–320°C thermostat control per 300mm griddle section
• Six temperature settings plus simmer setting on radiant element controls
• Energy regulator controls for both hot plate and radiant elements
• Indicator lights for power and heating status on each element control
• Large heat-resistant reinforced control knobs with easy-view setting markings
• Welded hob constructed from 1.5mm 304 stainless steel with bull-nose edge
• Splashback and side panels in 1.2mm 304 stainless steel; front panels in 0.9mm 304 stainless steel
• Vitreous enamelled element module spill tray and stainless steel hob spill tray
• 2.5mm 304 stainless steel griddle splash guards
• Aluminised steel internal construction
• All external surfaces in easy-clean stainless steel finish
• Full front-access design for servicing and cleaning of all components
• Leg stand with 63mm diameter, 1.2mm 304 stainless steel legs and adjustable feet plus 2 rollers
• Modular framed stand shelf with 0.9mm 304 stainless steel finish and shelf-to-top stainless steel backstop panel
• Quick tool-free assembly leg stand suitable for rear or through-shelf gas connection routing
• Fully modular construction for integration into a matched Waldorf Bold suite
• Optional hot plate elements available
• Default colour is black; other colour options available
• Low back (splashback) configuration as standard on this model

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
