Overview

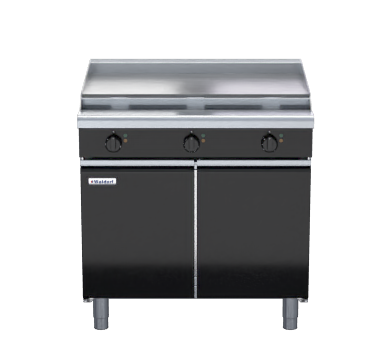

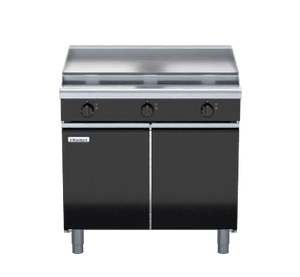

Waldorf Bold RNLB8609E-CD 900mm Electric Cooktop Low Back Version Cabinet Base

The Waldorf Bold RNLB8609E-CD is a 900mm electric cooktop configured with a full-width 900mm griddle plate and mounted on a cabinet base, designed for high-volume commercial kitchens requiring consistent, controllable cooking performance. The unit features three 3.6kW griddle elements with independent 50–320°C thermostat control per 300mm section, giving chefs precise zone management across the entire cooking surface.

Built to heavy-duty commercial standards, the cooktop uses a 12mm thick mild steel griddle plate with 2.5mm stainless steel splash guards, a welded hob in 1.5mm 304 stainless steel, and aluminised steel internal construction throughout. The cabinet base is fully modular for suite matching, constructed with double-skin 0.9mm 304 stainless steel interior and exterior, and supports optional GN 1/1 racking for additional storage capacity.

Key Benefits

• Independent thermostat control per 300mm griddle section allows simultaneous cooking at different temperatures, reducing the need for separate appliances.
• Full 900mm griddle surface maximises usable cooking area for high-throughput service periods.
• Six temperature settings plus a simmer setting provide broad cooking flexibility from gentle holding to high-heat searing.
• All components are accessible from the front of the unit, minimising downtime during cleaning and routine servicing.
• Adjustable feet and two additional rollers make positioning and levelling straightforward during installation or reconfiguration.
• Modular cabinet base construction integrates seamlessly into a matched suite, supporting a consistent kitchen layout.
• Indicator lights for power and heating on each element control give staff at-a-glance confirmation of operating status.
• Optional 2.4kW open radiant elements and hot plate elements allow the unit configuration to be tailored to specific menu requirements.
• Heavy-duty reinforced, heat-resistant control knobs with easy-view settings are built to withstand the rigours of continuous commercial use.

Key Features

• 900mm full-width griddle configuration with three 3.6kW griddle elements
• Independent 50–320°C thermostat control per 300mm griddle section
• Six temperature settings plus a dedicated simmer setting
• 12mm thick mild steel griddle plates for even heat retention and distribution
• 2.5mm 304 stainless steel griddle splash guards
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose profile
• Splashback and side panels in 1.2mm 304 stainless steel
• Front panels in 0.9mm 304 stainless steel
• Aluminised steel internal construction
• Vitreous enamelled element module spill tray
• Stainless steel hob spill tray
• Optional 2.4kW open radiant elements in heavy-duty welded element frames
• Optional 2.0kW hot plate elements with machine-finished 8mm steel plate
• Large heat-resistant reinforced control knobs with easy-view settings
• Energy regulator controls for hot plate and radiant elements
• Indicator lights for power and heating status on each element control
• Cabinet base with double-skin 0.9mm 304 stainless steel interior and exterior
• Fully modular cabinet base for matched suite configuration
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs with adjustable feet
• Two additional rollers for ease of positioning
• Optional GN 1/1 four-position racking kit suitable for one or two cabinet bays
• Up to eight 65mm GN 1/1 capacity in cabinet base
• Front-access design for all internal components, simplifying cleaning and servicing
• Heavy-duty stainless steel external finish throughout
• Default colour black with additional colour options available
• Low back version for installations requiring reduced rear clearance

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
