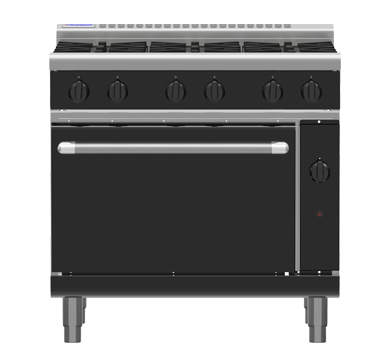

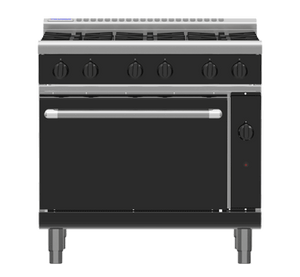

Waldorf RNLB8610G Bold 900mm Gas Range Static Oven Low Back Version

The Waldorf RNLB8610G is a 900mm wide commercial gas range from the Waldorf Bold series, combining a six-burner open cooktop with a 2/1 GN gas static oven in a low back configuration. Manufactured in New Zealand from 304 stainless steel, it is engineered for the rigours of high-volume commercial kitchens, delivering 168 MJ/h of total burner output and a thermostatic oven operating between 150 and 300°C.

The Bold series is designed around ease of operation, cleaning and servicing, with features such as removable cast iron burners, vitreous enamel pot stands and a welded vitreous enamel oven lining that all contribute to faster turnaround between service periods. The default finish is black with additional colour options available, making it a practical and visually flexible centrepiece for any professional kitchen suite.

Key Benefits

• Six patented 28 MJ/h open burners provide substantial, responsive heat output for fast cooking across the full cooktop width.
• Flame failure protection on every burner enhances kitchen safety by automatically cutting gas supply if a flame is extinguished.
• Vitreous enamel oven lining and pot stands resist staining and are straightforward to wipe clean, reducing downtime between services.
• Removable heavy-duty cast iron burners allow thorough cleaning and simple component replacement without specialist tools.
• The 2/1 GN capacity static oven accommodates full-size gastronorm trays, supporting efficient batch cooking and roasting.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit straightforward during installation or kitchen reconfiguration.
• A cool-touch stainless steel door handle and drop-down door with welded frame provide safe, ergonomic oven access during busy service.
• Heavy-duty reinforced control knobs withstand the frequent, forceful use typical of demanding commercial environments.
• Colour customisation options beyond the standard black finish allow the unit to integrate with a variety of kitchen aesthetic requirements.

Key Features

• Six-burner cooktop range with 6 x 28 MJ/h open burners, totalling 168 MJ/h output
• Compatible with both natural gas and LPG via a 3/4" BSP male gas connection
• 2/1 GN gas static oven with thermostatic temperature control ranging from 150 to 300°C
• Oven interior welded and lined with vitreous enamel for durability and easy cleaning
• Removable heavy-duty cast iron burners for straightforward cleaning and servicing
• Vitreous enamel pot stands, also removable for cleaning
• Flame failure protection fitted to all burners as a standard safety feature
• Drop-down oven door with welded frame and cool-touch stainless steel handle
• Two oven shelves included as standard
• Heavy-duty reinforced control knobs with analogue display
• Adjustable feet plus two additional rollers for levelling and easy repositioning
• Constructed from 304 stainless steel with a heavy-duty finish
• Low back (splashback) configuration
• Default colour is black; additional colour options available to order
• 900mm wide footprint with a total volume of 1.03 m³
• Designed for easy cleaning, installation and servicing
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas
• Number of Burners: 6
• Power Rating: 46.7 kW
• Temperature Control: Thermostatic
• Display Type: Analog
