Overview

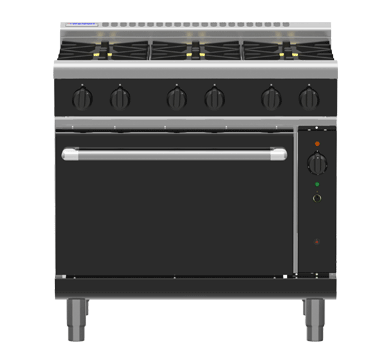

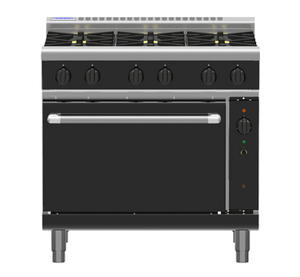

Waldorf RNLB8610GC Bold 900mm Gas Range Convection Oven Low Back Version

The Waldorf Bold RNLB8610GC is a heavy-duty 900mm gas range convection oven designed for the rigorous demands of commercial kitchens. It combines a six-burner cooktop featuring patented 28MJ open burners with a 2/1 GN gas convection oven below, delivering exceptional cooking power across the full unit. Manufactured in New Zealand from 304 stainless steel, it is built to withstand the pace of high-volume foodservice environments such as restaurants, cafes, hotels and catering operations.

The convection oven cavity uses cast iron sole plates for even heat distribution, while heavy-duty motors and circulation fans reduce cooking times and allow food to be prepared at lower temperatures than conventional ovens. The low back configuration suits kitchens where overhead clearance or sightlines are a priority. Default colour is black, with additional colour options available to suit your kitchen fit-out.

Key Benefits

• Fan-forced convection circulation delivers consistent, even heat throughout the oven cavity, reducing hot spots and improving batch cooking results
• Six high-output 28MJ open burners provide powerful, responsive cooktop performance for rapid heat-up and precise temperature control
• Reduced cooking times and lower operating temperatures enabled by heavy-duty circulation fans, improving energy efficiency during service
• Cast iron sole plates in the oven ensure uniform heat distribution across the full 2/1 GN oven floor
• Flame failure protection on all burners enhances kitchen safety by automatically cutting gas supply if a flame is extinguished
• Adjustable feet and two additional rollers allow precise levelling and easy repositioning during cleaning or maintenance
• Vitreous enamel oven lining and pot stands are highly resistant to staining and simplify day-to-day cleaning
• Compatible with both natural gas and LPG, providing flexibility across different site installations
• Custom colour options beyond the standard black finish allow the unit to integrate with a range of kitchen aesthetics

Key Features

• Six-burner cooktop range with 6 x 28MJ/hr patented open burners
• 2/1 GN gas convection oven with a total burner output of 168MJ/h
• Heavy-duty motors and circulation fans for fan-forced convection cooking
• Cast iron sole plates in the oven cavity for even heat distribution
• Oven temperature range: 150-300°C with thermostatic control
• Flame failure safety protection on all burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands, removable for straightforward maintenance
• Welded oven lining finished with vitreous enamel for durability and easy cleaning
• Drop-down oven door with welded frame construction
• Cool touch stainless steel door handle for safe operation during service
• Heavy-duty reinforced control knobs with analogue display
• Adjustable feet plus two additional rollers for levelling and mobility
• Low back (splashback) configuration for improved sightlines and overhead clearance
• Constructed from 304 stainless steel with a heavy-duty stainless steel finish
• Default colour is black; additional custom colour options available
• Gas connection: R 3/4 (BSP) male; compatible with natural gas and LPG
• Electrical supply for convection fan: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz
• Two oven shelves included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
