Overview

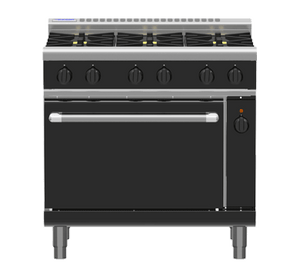

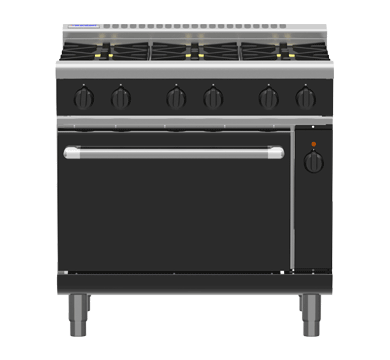

Waldorf Bold RNLB8610GEC 900mm Gas Range Electric Convection Oven Low Back Version

The Waldorf Bold RNLB8610GEC is a 900mm wide commercial range combining a six-burner gas cooktop with a 2/1 GN electric convection oven, purpose-built for high-volume commercial kitchens. Six patented 28MJ/hr open burners deliver serious cooking power up top, while the fan-forced electric convection oven below uses heavy-duty motors and circulation fans to reduce cooking times and allow food to be cooked at lower temperatures than conventional ovens.

Constructed in New Zealand from 304 stainless steel, every component is engineered for durability and ease of maintenance. Removable cast iron burners, vitreous enamel pot stands, a welded vitreous enamel oven lining, and heavy-duty reinforced control knobs all contribute to a unit that is straightforward to clean and service. Available in the signature Waldorf Bold black finish with additional colour options on request, the RNLB8610GEC suits bakeries, cafes, restaurants and any busy kitchen demanding consistent, reliable results.

Key Benefits

• Fan-forced convection circulation distributes heat evenly throughout the oven cavity, promoting consistent baking and roasting results across every tray.
• Heavy-duty convection motors reduce overall cooking times and allow lower operating temperatures, saving energy during extended service periods.
• Six 28MJ/hr open burners provide high-output, responsive heat across the cooktop for rapid boiling, sauteing and sauce work simultaneously.
• Flame failure protection on all burners automatically cuts gas if a flame is extinguished, reducing safety risks during busy service.
• Cast iron sole plates within the oven ensure even base heat distribution, ideal for pastries, breads and baked goods requiring consistent bottom heat.
• 2/1 GN oven capacity accommodates full gastronorm trays, maximising batch cooking output with only two shelves needed.
• Vitreous enamel pot stands and welded oven lining resist staining and are simple to wipe down, minimising cleaning time between services.
• Adjustable feet and two additional rollers allow precise levelling on uneven floors and straightforward repositioning during kitchen reconfiguration.
• A cool-touch stainless steel door handle and drop-down door with welded frame allow safe, one-handed oven access during high-pressure service.

Key Features

• Six-burner gas cooktop with six 28MJ/hr patented open burners
• 2/1 GN electric convection oven with thermostatic temperature control ranging from 150 to 300°C
• Heavy-duty motors and circulation fans for fan-forced even heat distribution
• Cast iron sole plates in the oven cavity for consistent base heat
• Flame failure protection on all cooktop burners
• Removable heavy-duty cast iron burners for easy cleaning and servicing
• Vitreous enamel pot stands for durability and easy maintenance
• Welded oven lining finished in vitreous enamel for hygienic, stain-resistant interior
• Drop-down oven door with welded frame for robust, long-lasting operation
• Cool-touch stainless steel oven door handle for safe access during service
• Heavy-duty reinforced control knobs suited to frequent commercial use
• 304 stainless steel construction throughout
• Low back (splashback) configuration for installation against a wall
• Adjustable feet plus two additional rollers for levelling and mobility
• Compatible with natural gas and LPG with a 3/4 BSP male gas connection
• Single-phase electrical connection at 415V 3-phase, 6.6kW power rating
• Default finish is black; additional custom colour options available
• Manufactured in New Zealand
• 24-month warranty
• 900mm wide footprint suits standard commercial kitchen suite configurations

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 168
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 6
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
