Overview

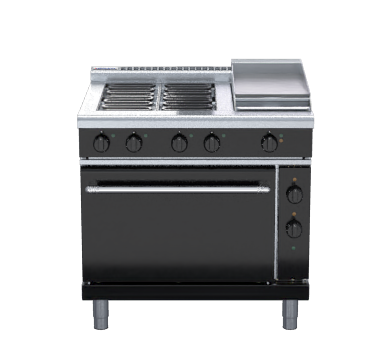

Waldorf Bold RNLB8613EC 900mm Electric Range with Convection Oven – Low Back Configuration

The Waldorf Bold RNLB8613EC is a 900mm wide electric range that brings together a four-element radiant cooktop, a 300mm griddle and a GN 2/1 fan-forced convection oven in a single low back unit, purpose-built for high-volume commercial kitchens including busy cafes, bakeries and restaurants. The entire unit is constructed on a galvanised steel chassis with heavy-duty 304 stainless steel surfaces throughout, providing the structural integrity and consistent performance demanded by continuous professional use.

The convection oven incorporates a fully welded vitreous enamel liner, a cast iron even-heat sole plate and a 200mm circulation fan powered by a 100W motor, delivering uniform heat across four rack positions. The cooktop combines four 2.4kW open radiant elements with a 3.6kW griddle element and offers six temperature settings plus a simmer setting, making this an adaptable all-in-one cooking solution for a wide range of professional kitchen applications.

Key Benefits

• Fan-forced convection oven circulates heat evenly to all four rack positions, minimising hot spots and producing reliable batch cooking outcomes.
• GN 2/1 oven capacity accepts full gastronorm trays, maximising throughput during peak service periods.
• Integrated cooktop and oven within a single 900mm footprint streamlines kitchen workflow and preserves valuable floor space.
• Vitreous enamel oven liner and hob spill trays wipe clean quickly, keeping downtime between services to a minimum.
• Adjustable feet and two additional rollers make positioning, repositioning and routine servicing easy.
• Six temperature settings plus a simmer setting allow precise control across a broad range of cooking tasks.
• High-density fibreglass insulation and a stay-cool door handle improve operator safety during sustained commercial operation.
• Optional hot plate elements and the ability to relocate the griddle to the left side or centre allow the unit to be tailored to specific kitchen requirements.
• The drop-down oven door is built on a robust spring hinge system within a welded frame, ensuring dependable long-term performance under constant commercial use.

Key Features

• Galvanised steel chassis construction for long-term structural integrity.
• Welded hob crafted from 1.5mm 304 stainless steel with bull nose edge.
• Splashback and hob sides in 1.2mm 304 stainless steel; front panels and oven sides in 0.9mm 304 stainless steel.
• Heavy-duty 150mm legs fabricated from 63mm diameter 1.2mm 304 stainless steel tube, fitted with adjustable feet and two additional rollers.
• 4 x 2.4kW open radiant elements each secured within robust welded element frames; element modules and hob spill trays finished in vitreous enamel for straightforward cleaning.
• 300mm griddle featuring a 3.6kW element, griddle plates in 12mm thick mild steel, and splash guards formed from 2.5mm 304 stainless steel.
• Griddle positioned on the right-hand side as standard; available on the left or centre to order or by conversion.
• Optional hot plate elements utilising machine-finished 8mm thick steel plate.
• Aluminised steel internal cooktop construction.
• GN 2/1 convection oven with four-position racking.
• 6.5kW oven heating elements.
• 100W heavy-duty motor driving a 200mm diameter circulation fan for uniform heat distribution.
• Cast iron even-heat oven sole plate.
• Fully welded vitreous enamel oven liner.
• High-density fibreglass oven insulation.
• Heavy-duty easy-remove chrome wire rack supports.
• Supplied with two chrome wire oven racks.
• Drop-down oven door built on a welded frame with a heavy-duty spring hinge system; outer skin in 0.9mm 304 stainless steel and inner skin a press-formed vitreous enamelled panel in 1.0mm steel.
• Door handle in stay-cool stainless steel mounted on cast metal brackets.
• Six temperature settings plus a simmer setting.
• Heavy-duty reinforced control knobs.
• Default colour is black with additional colour options available.
• Low back configuration suits kitchens with overhead clearance requirements or under-canopy installations.

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
