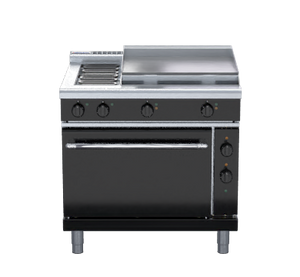

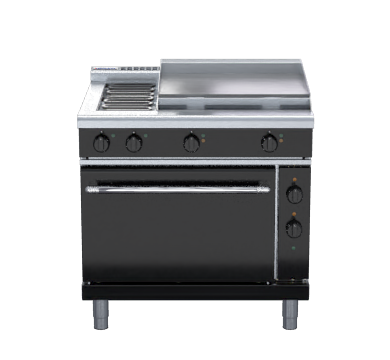

Waldorf Bold RNLB8616EC 900mm Wide Electric Range with Convection Oven, Low Back Configuration

The Waldorf Bold RNLB8616EC is a 900mm wide electric range built for high-volume commercial kitchens, combining a 2/1 GN fan-forced convection oven with two open radiant cooktop elements and a 600mm mild steel griddle into a single, compact cooking platform. The low back design suits venues where a full-height splashback is unnecessary, and the unit arrives with two chrome wire oven racks ready to use straight away.

Constructed on a galvanised steel chassis with heavy-gauge 304 stainless steel used throughout, the RNLB8616EC is engineered for straightforward cleaning, reliable long-term performance and ease of servicing. Adjustable feet paired with two additional rollers allow the unit to be repositioned without difficulty, while the vitreous enamel oven liner, vitreous enamel hob spill trays and cast iron sole plate reduce maintenance effort in demanding kitchen environments.

Key Benefits

• A 100W motor powers a 200mm circulation fan that drives even heat distribution across all four rack positions, minimising hot spots and delivering consistent results for baking and roasting.
• The 2/1 GN oven cavity with four-position racking allows full gastronorm trays to be loaded efficiently, maximising batch output during high-demand service periods.
• The 600mm mild steel griddle with stainless steel splash guards offers a generous, consistent searing surface well suited to proteins, vegetables and breakfast items alongside the radiant elements.
• Six temperature settings plus a simmer setting on the cooktop give chefs precise heat control across a broad range of cooking techniques without the need to move between appliances.
• Adjustable feet and two rollers make installation, repositioning and routine servicing simple, helping to minimise kitchen downtime.
• The vitreous enamel oven liner, door inner panel and hob spill trays resist staining and wipe down quickly, keeping turnaround time between service periods to a minimum.
• High-density fibreglass insulation and a thermally insulated door handle fitted with cast metal mounting brackets improve operational safety and energy retention during extended cooking sessions.
• Optional hot plate elements machined from 8mm steel plate provide additional cooking flexibility while keeping the overall footprint compact and eliminating the need for a separate appliance.
• Available in default black with alternative colour options, the unit integrates with varied kitchen aesthetics and can be matched to existing Bold range equipment.

Key Features

• 900mm wide low back electric range; overall dimensions W 900mm x D 805mm x H 972mm
• Galvanised steel chassis providing a robust structural foundation
• Welded hob constructed from 1.5mm 304 stainless steel with bull nose edge
• Splashback and hob sides fabricated from 1.2mm 304 stainless steel
• Exterior front panels and oven side panels formed from 0.9mm 304 stainless steel
• Legs at 150mm height with 63mm diameter tube, formed from heavy-duty 1.2mm 304 stainless steel, fitted with adjustable feet; two additional rollers also included
• Two 2.4kW open radiant elements mounted in robust, fully welded element frames
• Vitreous enamelled element module and hob spill trays for straightforward cleaning
• 600mm griddle with 12mm thick mild steel griddle plates; positioned on the right-hand side as standard, available configured to the left-hand side or centre on request
• Griddle splash guards fabricated from 2.5mm 304 stainless steel
• Two 3.6kW griddle elements
• Aluminised steel internal cooktop construction
• Six temperature settings plus simmer setting on cooktop controls
• Optional hot plate elements using a machine-finished 8mm steel cooking surface
• Heavy-duty reinforced control knobs
• 2/1 GN electric convection oven with four-position racking
• 6.5kW oven heating elements
• 100W heavy-duty motor driving a 200mm diameter circulation fan
• Cast iron even-heat oven sole plate for stable base temperature
• Fully welded vitreous enamelled oven liner
• High-density fibreglass oven insulation
• Welded frame drop-down oven door fitted with a robust spring hinge assembly
• Oven door outer panel in 0.9mm 304 stainless steel
• Press-formed vitreous enamelled door inner panel in 1.0mm steel
• Thermally insulated stainless steel door handle secured with cast metal mounting brackets
• Heavy-duty, easy-remove chrome wire rack supports
• Two chrome wire oven racks included
• Ships in default black; alternative colour options available

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
