Overview

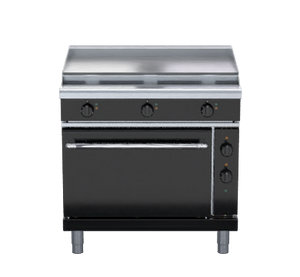

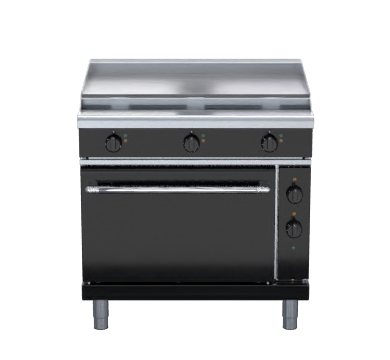

Waldorf Bold RNLB8619EC 900mm Electric Range with Convection Oven – Low Back Configuration

The Waldorf Bold RNLB8619EC is a 900mm wide electric range in the low back configuration, pairing a heavy-duty 12mm mild steel griddle cooktop with a GN 2/1 fan-forced convection oven. Constructed on a galvanised steel chassis with 304 stainless steel throughout, it is engineered to meet the demands of high-volume commercial kitchens, bakeries and catering venues where consistent performance and ease of cleaning are essential.

The fully welded vitreous enamelled oven cavity is heated by 6.5kW elements, with a 100W motor driving a 200mm diameter circulation fan to deliver even heat distribution across all rack positions. The griddle section houses three 3.6kW elements offering six temperature settings plus a simmer setting, and while griddle sections are supplied as standard on the right-hand side, left-hand side and centre configurations are available to order or by conversion. Optional hot plate elements and alternative colour finishes are also available as part of the broader Waldorf Bold modular cooking suite.

Key Benefits

• Fan-forced convection delivers uniform heat across all four rack positions, reducing hot spots and supporting consistent batch baking and roasting.
• GN 2/1 oven capacity accommodates full-size gastronorm trays, maximising throughput during busy service periods.
• The 12mm thick mild steel griddle plates provide excellent heat retention and even searing across the entire cooking surface.
• Six temperature settings plus a simmer setting on the griddle give chefs precise control for a wide range of cooking techniques.
• Vitreous enamel lining on both the oven cavity and door inner makes cleaning fast and straightforward, reducing downtime between services.
• Adjustable feet and two additional rollers simplify installation, repositioning and routine servicing.
• A heavy-duty spring hinge drop-down door paired with a stay-cool stainless steel handle secured by cast metal mounts ensures safe, easy access to the oven during operation.
• High-density fibreglass insulation retains oven heat efficiently, lowering energy consumption and keeping the exterior cooler to the touch.
• The modular Waldorf Bold platform supports optional hot plate elements and alternative colour configurations to suit individual kitchen requirements.

Key Features

• Galvanised steel chassis with a welded hob built from 1.5mm 304 stainless steel; bull nose profile throughout
• Splashback and hob sides fabricated in 1.2mm 304 stainless steel; front panels and oven sides constructed from 0.9mm 304 stainless steel
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs, 150mm in height, fitted with adjustable feet and two additional rollers
• 12mm thick mild steel griddle plates with splash guards made from 2.5mm 304 stainless steel
• Three 3.6kW griddle heating elements with six temperature settings and a simmer setting
• 2.4kW open radiant elements housed in heavy-duty welded element frames (cooktop section)
• Vitreous enamelled element module and hob spill trays for easy cleaning
• Optional hot plate elements featuring machine-finished 8mm steel plate
• Griddle sections standard on right-hand side; left-hand side or centre available to order or by conversion
• Aluminised steel internal cooktop construction
• Fully welded, vitreous enamelled oven liner for hygienic, durable interior surfaces
• GN 2/1 oven capacity with four-position racking
• Heavy-duty easy-remove chrome wire rack supports
• Cast iron even-heat oven sole plate for stable base temperature
• 6.5kW oven heating elements
• 100W heavy-duty circulation motor driving a 200mm diameter fan for consistent heat distribution
• Welded frame drop-down oven door with a robust spring hinge assembly; outer panel in 0.9mm 304 stainless steel and a press-formed vitreous enamelled inner panel in 1.0mm steel
• High-density fibreglass oven insulation
• Stay-cool stainless steel door handle mounted on cast metal brackets; unit supplied with two chrome wire oven racks
• Heavy-duty reinforced control knobs
• Default finish is black with other colour options available
• Part of the Waldorf Bold modular cooking suite

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
