Overview

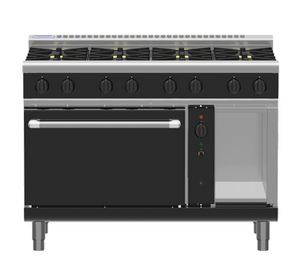

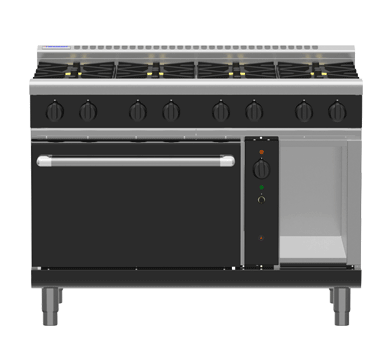

Waldorf RNLB8810GC Bold 1200mm Low Back Gas Range with Convection Oven

The Waldorf Bold RNLB8810GC is a 1200mm wide, heavy-duty gas range built for demanding commercial kitchen environments. Manufactured in New Zealand from 304 stainless steel, it pairs eight patented 28MJ open burners with a 2/1 GN fan-forced gas convection oven, delivering a total cooktop output of 224MJ/hr and an oven temperature range of 150°C to 300°C. The unit is supplied in a low back (splashback) configuration and is compatible with both natural gas and LPG connections.

Designed to support efficient, high-volume cooking, the range features a vitreous enamel-lined welded oven cavity, cast iron sole plates, four oven shelves, and a right-hand storage cabinet. Safety and ease of use are addressed through flame failure protection on every burner, a cool-touch stainless steel door handle, heavy-duty reinforced control knobs with analogue display, adjustable feet, and two integrated rollers for repositioning. The unit ships in a default black finish, with a range of custom colour options also available, and is backed by a 24-month warranty.

Key Benefits

• Fan-forced heat circulation reduces cooking times and allows food to be cooked at lower temperatures, improving energy efficiency and throughput across busy service periods.
• Eight 28MJ open burners deliver substantial cooktop output, enabling multiple simultaneous high-heat tasks to keep pace with demanding service volumes.
• The 2/1 GN oven capacity accepts full-size gastronorm trays, making large-scale batch cooking and food production practical and efficient across all four included shelves.
• Cast iron sole plates distribute heat evenly throughout the oven cavity, supporting consistent baking and roasting results.
• Flame failure protection fitted to every burner automatically shuts off the gas supply if a flame goes out, enhancing kitchen safety at all times.
• The cast iron burner components and vitreous enamel pot stands are designed for straightforward removal, simplifying cleaning and minimising downtime between services.
• Adjustable feet combined with two integrated rollers make repositioning the unit straightforward, easing installation, routine cleaning underneath, and ongoing servicing.
• Compatibility with both natural gas and LPG connections gives operators flexibility across different site configurations.
• A right-hand storage cabinet provides convenient on-the-line storage for trays, utensils, or mise en place, reducing unnecessary steps during service.

Key Features

• Eight-burner cooktop with 8 x 28MJ/hr patented open burners
• Total burner output: 224MJ/hr
• 2/1 GN gas convection oven with heavy-duty motor and circulation fan
• Oven temperature range: 150°C to 300°C, thermostatically controlled
• Four oven shelves included
• Cast iron sole plates providing even heat distribution within the oven cavity
• Welded oven cavity with vitreous enamel lining for durability and easy cleaning
• Flame failure protection on every individual burner
• Burner components in cast iron and vitreous enamel pot stands, all fully removable for cleaning
• Drop-down oven door with welded frame
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs with analogue display
• Right-hand storage cabinet
• Low back (splashback) configuration
• 304 stainless steel construction throughout
• Adjustable feet and two additional rollers for easy repositioning
• Gas connection: R 3/4 (BSP) male; compatible with natural gas and LPG
• Electrical supply for fan and ignition: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz
• Default colour black; additional custom colour options available
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 1200
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 345.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 224
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 4
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 8
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
