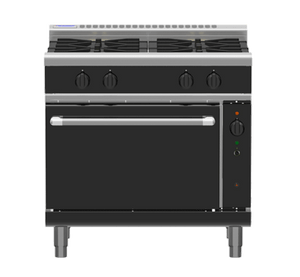

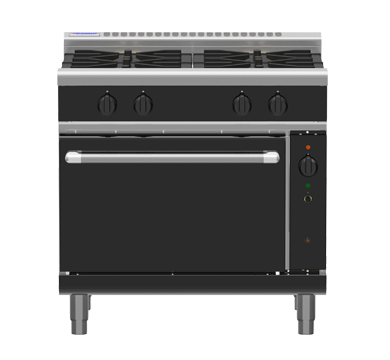

Waldorf Bold RNLB8910GC 900mm Gas Range Convection Oven Low Back Version

The Waldorf Bold RNLB8910GC is a 900mm wide gas range featuring a four-burner cooktop above a 2/1 GN gas convection oven, purpose-built for demanding commercial kitchen environments. Each of the four open burners delivers 28MJ/hr, while the fan-forced convection oven operates across a thermostatic range of 150 to 300°C, enabling consistent, even results across multiple trays simultaneously. Constructed in New Zealand from 304 stainless steel, the unit is compatible with both natural gas and LPG via a 3/4 inch BSP male connection, with a total burner output of 112MJ/hr.

Designed as part of the Waldorf Bold series, this low back version suits kitchens where overhead clearance or bench continuity is a priority. The oven interior is welded and lined with vitreous enamel for straightforward cleaning and long-term durability, while cast iron sole plates promote even heat distribution throughout the cavity. Heavy-duty motors and circulation fans reduce cooking times and allow food to be prepared at lower temperatures, delivering both energy efficiency and improved throughput during peak service periods.

Key Benefits

• Fan-forced convection circulation reduces cooking times and allows lower operating temperatures, saving energy during high-volume service.
• Four patented 28MJ/hr open burners provide high-output cooktop performance suited to rapid heating and large-batch cookery.
• 2/1 GN oven capacity accommodates full-size gastronorm trays, maximising batch cooking efficiency for roasting, baking and reheating.
• Cast iron sole plates inside the oven ensure even heat distribution, eliminating hot spots and delivering consistent results across all tray positions.
• Flame failure protection on every burner enhances kitchen safety by automatically cutting gas supply if a flame is extinguished.
• Vitreous enamel oven lining and pot stands simplify post-service cleaning and resist stubborn grease build-up.
• Adjustable feet and two additional rollers make positioning and levelling on uneven kitchen floors straightforward.
• Low back configuration integrates cleanly into kitchen layouts where a full splashback would obstruct ventilation or overhead equipment.
• Available in custom colours beyond the default black, allowing coordination with broader kitchen fit-out requirements.

Key Features

• Four-burner gas cooktop with each open burner rated at 28MJ/hr, total output 112MJ/hr
• 2/1 GN gas convection oven with thermostatic temperature control from 150 to 300°C
• Heavy-duty fan and motor assembly for forced-air heat circulation throughout the oven cavity
• Cast iron sole plates within the oven for uniform heat distribution
• Oven interior fully welded and lined with vitreous enamel for durability and easy cleaning
• Removable heavy-duty cast iron burners with vitreous enamel pot stands
• Flame failure protection fitted to all cooktop burners
• Drop-down oven door with welded frame construction
• Cool-touch stainless steel door handle
• Heavy-duty reinforced control knobs for long-term operational reliability
• Analog temperature display
• Adjustable feet plus two additional rollers for ease of installation and repositioning
• 304 stainless steel construction throughout
• Splashback included; low back version configuration
• Compatible with natural gas and LPG; gas connection R 3/4 BSP male
• Electrical supply required: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz
• Default colour is black with additional custom colour options available
• Designed and manufactured in New Zealand
• 24-month warranty
• 900mm wide x 805mm deep x 972mm high; packed weight 280kg

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Thermostatic
• Display Type: Analog
