Overview

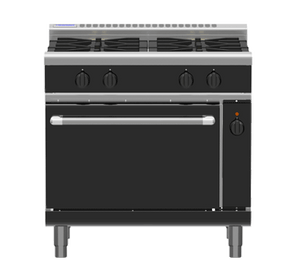

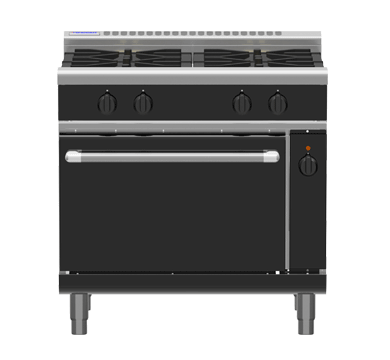

Waldorf RNLB8910GEC Bold 900mm Gas Range Electric Convection Oven Low Back Version

The Waldorf RNLB8910GEC is a heavy-duty 900mm gas range with an electric convection oven, part of the Waldorf Bold Series designed for the rigorous demands of high-volume commercial kitchens. The cooktop features four patented 28MJ/hr open burners with flame failure protection, removable cast iron burners and vitreous enamel pot stands, while the 2/1 GN electric convection oven below delivers consistent, fan-forced heat across multiple trays for reliable batch cooking.

Built from 304 stainless steel and manufactured in New Zealand, this low back configuration suits kitchens where wall clearance or ventilation positioning requires a reduced height profile. The welded vitreous enamel oven lining, cast iron sole plates for even heat distribution, heavy-duty circulation fan and motor, cool touch door handle, adjustable feet and additional rollers make this unit practical to operate, clean, and service in demanding professional environments.

Key Benefits

• Fan-forced convection circulation reduces cooking times and allows food to be cooked at lower temperatures, saving energy and throughput time.
• Four 28MJ/hr open burners deliver high-output gas cooking across the cooktop, suited to woks, stockpots and sauté pans simultaneously.
• Flame failure protection on all burners provides a critical safety safeguard, automatically cutting gas supply if a flame is extinguished.
• 2/1 GN oven capacity accommodates full gastronorm trays, supporting efficient batch roasting and baking for high-volume service.
• Vitreous enamel oven lining and pot stands are straightforward to wipe down, reducing cleaning time between services.
• Removable cast iron burners and pot stands allow quick access for cleaning and maintenance without specialist tools.
• Adjustable feet combined with two additional rollers make installation, repositioning and routine servicing easier in tight kitchen layouts.
• Available in multiple colour options beyond the default black, supporting kitchen fitouts with specific aesthetic requirements.
• 24-month warranty and New Zealand manufacture provide confidence in parts availability and after-sales support.

Key Features

• Four patented 28MJ/hr open cooktop burners for maximum heat output and responsive control
• 2/1 GN electric convection oven with heavy-duty motor and circulation fan
• Thermostatic oven temperature control ranging from 150°C to 300°C
• Cast iron sole plates inside oven for even heat distribution across the oven floor
• Welded oven lining finished with vitreous enamel for durability and easy cleaning
• Flame failure protection fitted to all burners as a standard safety feature
• Removable heavy-duty cast iron burners and vitreous enamel pot stands for straightforward cleaning and serviceability
• Drop down oven door with welded frame for robust, long-term operation
• Cool touch stainless steel door handle for safe handling during service
• Heavy-duty reinforced control knobs built to withstand constant commercial use
• Adjustable feet and two additional rollers for flexible positioning and levelling
• 900mm wide low back configuration suitable for installations with height or ventilation constraints
• 304 stainless steel construction throughout for corrosion resistance and hygiene
• Compatible with both natural gas and LPG via R 3/4 BSP male gas connection
• Requires 415V 3-phase power supply at 6.6kW for oven operation
• Default finish is black with additional colour options available to suit kitchen design
• Manufactured in New Zealand with a 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 112
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Drop Down
• No. of Shelves: 2
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable (Cooktop), 150-300°C (Oven)
• Fuel Type: Gas / Electric
• Number of Burners: 4
• Power Rating: 1 phase connection|6.6kW
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Thermostatic
• Display Type: Analog
