Overview

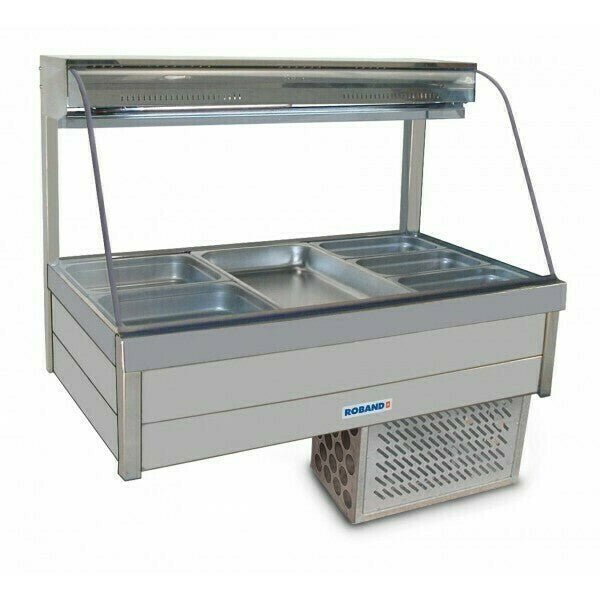

Roband CRX23RD Curved Glass Refrigerated Display Bar, 6 Pans

The Roband CRX23RD is an Australian-made curved glass refrigerated food bar designed for busy commercial service counters, cafes, delis and canteens. It holds 6 x 1/2 GN 65 mm pans across a double row layout and uses a dual cooling system combining a cold plate beneath the pans and a cross fin coil above to maintain food at a consistent 0°C to 4°C. The unit runs on environmentally friendly R404A refrigerant and operates on a standard 240 V single-phase supply at 530 W.

Constructed from 304 stainless steel with a tubular frame, the CRX23RD is built for durability and straightforward cleaning. Toughened curved safety glass at the front maximises product visibility to drive sales, while rear roller doors allow quick and easy staff access during service. The unit is designed to match Roband's 'E' series hot food display bars, enabling a coordinated hot-and-cold counter presentation with a uniform, modern appearance. All 6 x 1/2 GN 65 mm pans are included. Food placed in the unit should be prechilled to 5°C or below before loading, and the unit is rated for operation in up to 25°C, 60% relative humidity (Climate Class 3) ambient conditions.

Key Benefits

• Dual cold plate and cross fin coil cooling maintains food temperature from both below and above, providing consistent chilling across all six pan positions throughout service.
• Six 1/2 GN 65 mm pans are included in the box, so the unit is ready for immediate service without additional pan purchases.
• Curved toughened safety glass front maximises product visibility and presentation, encouraging customer purchases at the point of sale.
• Matches the Roband 'E' series hot food display bars in style and dimensions, allowing operators to create a coordinated hot-and-cold display counter with a uniform appearance.
• Rear roller doors provide fast, easy staff access to replenish or rearrange pans during busy service periods without disrupting front display.

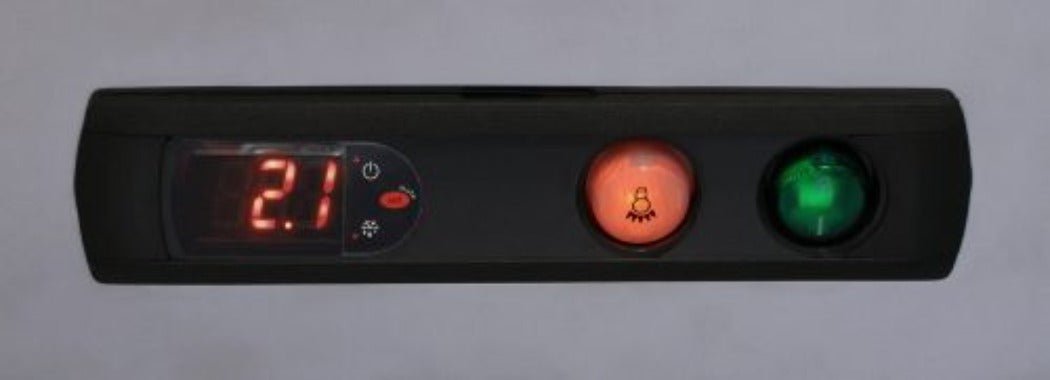

• Adjustable digital thermostat with temperature readout gives operators precise, visible control over holding temperature to support food safety compliance.
• Quiet operation and static cooling minimise noise in customer-facing counter environments.
• Australian-made with 304 stainless steel construction and a tubular frame for long-term durability and straightforward compliance with commercial kitchen hygiene standards.
• Overhead fluorescent light illuminates displayed food attractively, enhancing visual appeal and helping to drive sales.

Key Features

• Dual cooling system: cold plate beneath pans and cross fin coil above for top-and-bottom temperature maintenance.
• Accommodates a variety of Gastronorm pans up to 65 mm deep; configured for 6 x 1/2 GN pans in a double row layout.
• 6 x 1/2 size 65 mm GN pans included.
• 27-litre total pan capacity.
• Temperature range: 0°C to 4°C.
• Adjustable digital thermostat with temperature readout.
• Runs on environmentally friendly R404A refrigerant.
• Toughened curved safety glass front panel.
• Rear roller doors fitted as standard for easy staff access.
• Overhead fluorescent light for food illumination.
• Safety lock ball valve drain for controlled, safe drainage.
• Removable cross bars for easy cleaning and flexible pan configuration.
• 304 stainless steel construction throughout with a tubular frame.
• Streamlined design for easy cleaning.
• Quiet operation.
• Rated for ambient conditions up to 25°C at 60% relative humidity (Climate Class 3).
• Designed for holding and displaying prechilled food (5°C or below) immediately prior to sale.
• Power: 530 W at 240 V single phase.
• Australian made.

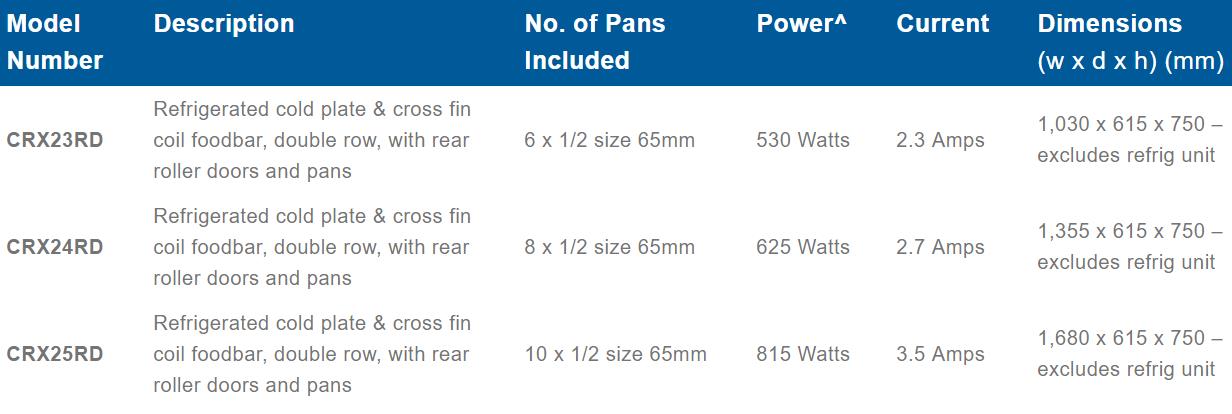

Specifications

• Width (mm): 1030
• Depth (mm): 615
• Height (mm): 750
• Weight (kg): 60
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Shipping Weight: 109
• Shipping Cubic: 1.119
• Packed Width (mm): 1120.0
• Packed Height (mm): 1350.0
• Packed Depth (mm): 760.0
• Capacity (Litres): 27lt
• GN Capacity: 6 x 1/2 GN
• Power Delivery: 520w
• Power Rating: 530w
• Power Supply: 240V Single Phase
• Power (kW): 530
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Door Type: Glass
• No. of Doors: 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Display Fridge
• Cooling Type: Static
• Fuel Type: Electric
• Control Type: Thermostat
• Temperature Control: Energy Regulator
• Display Type: Glass Display
