Overview

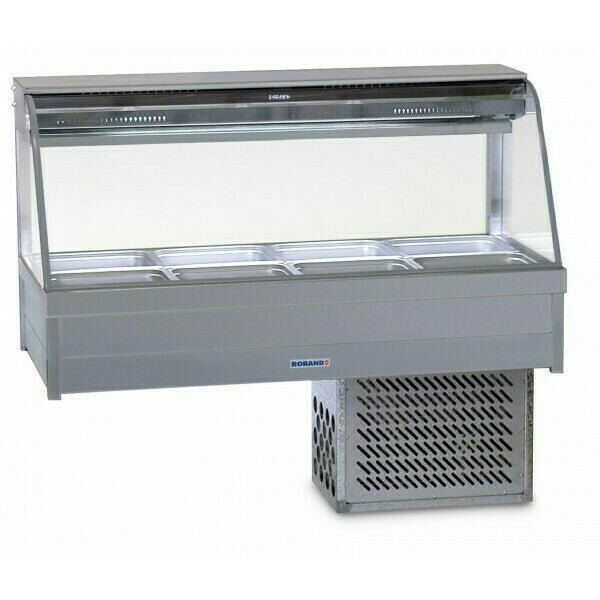

Roband CRX24RD Curved Glass Refrigerated Display Bar, 8 Pans

The Roband CRX24RD is an Australian-made curved glass refrigerated cold food display bar designed for busy commercial kitchens, cafes, delis, canteens and service counters. It uses a dual cooling system combining a cold plate beneath the pans and a cross fin coil above to maintain food at safe holding temperatures throughout the display period. The unit accommodates 8 x 1/2 GN pans up to 65 mm deep, all of which are included, and operates within a temperature range of 0°C to 4°C using environmentally friendly R404A refrigerant.

Constructed from 304 stainless steel with a tubular frame, the CRX24RD is built to withstand the rigours of daily commercial use while remaining straightforward to clean. Its toughened curved safety glass front gives customers a clear view of displayed food, encouraging sales, while the rear roller doors provide convenient staff access. The unit is designed to complement Roband's matching range of curved glass hot food display bars, allowing operators to present a cohesive, modern hot and cold food service setup. Food placed in the unit must be prechilled to 5°C or below prior to loading, and the unit is rated for operation in ambient conditions up to 25°C at 60% relative humidity.

Key Benefits

• Dual cold plate and cross fin coil cooling keeps food cold from both bottom and top, reducing warm spots and helping maintain safe food temperatures throughout service.
• Eight 1/2 GN 65 mm pans are included straight out of the box, so the unit is ready for immediate use without additional pan purchases.
• Toughened curved safety glass front maximises product visibility, attracting customer attention and helping drive impulse purchases at the point of sale.
• Adjustable digital thermostat with temperature readout gives staff precise, easy-to-monitor control over holding temperatures.
• Rear roller doors allow quick, ergonomic access for staff to replenish and serve food without disrupting the display front.
• Overhead fluorescent lighting illuminates displayed food attractively, enhancing presentation under varying ambient light conditions.
• Quiet operation minimises noise in customer-facing environments such as cafes, hotel buffets and food courts.
• Designed and manufactured in Australia with a 304 stainless steel tubular frame construction, supporting local industry and ensuring compliance with Australian commercial kitchen standards.
• Matches Roband's 'E' series curved glass hot food display bars for a uniform, professional appearance when combining hot and cold food display in a single service counter.

Key Features

• Curved toughened safety glass front for clear food visibility and customer appeal.
• Dual cooling system: cold plate (bottom) combined with cross fin coil (top) for thorough, consistent refrigeration of pan contents.
• Holds 8 x 1/2 GN pans up to 65 mm deep; pans included with unit.
• 36-litre total pan capacity.

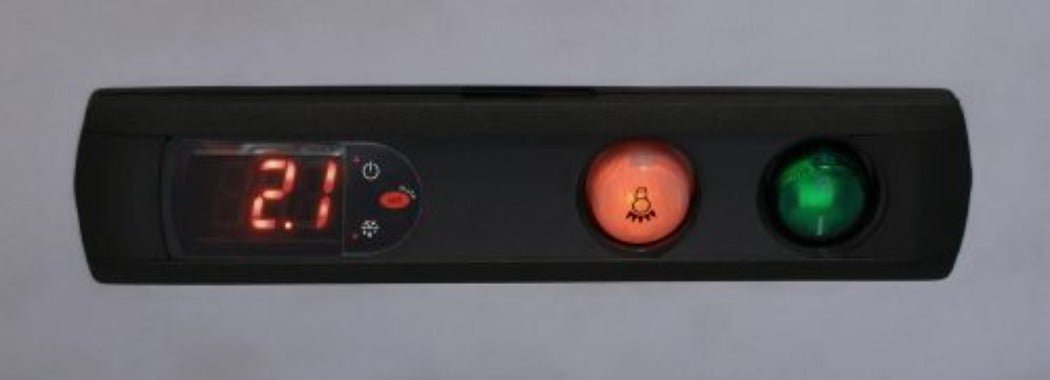

• Adjustable digital thermostat with temperature readout for precise temperature management.
• Temperature holding range of 0°C to 4°C.
• R404A environmentally friendly refrigerant.
• Rear roller doors fitted as standard for easy staff access.
• Overhead fluorescent light illuminates displayed food.
• Safety lock ball valve drain for hygienic and controlled cleaning.
• Removable cross bars to simplify internal cleaning.
• 304 stainless steel construction with stainless tubular frame for durability and ease of sanitation.
• Quiet operation suitable for customer-facing service environments.
• Designed for food displaying and holding immediately prior to sale; all food must be prechilled to 5°C or less before loading.
• Rated for operation in ambient conditions of 25°C and 60% relative humidity (Climate Class 3).
• 10-amp plug connection; 625 W power rating at 230/240 V single phase.
• Dimensions: 1355 mm wide x 615 mm deep x 750 mm high (excluding refrigeration unit); add 450 mm for motor cage when calculating total installation height.
• Weight: 60 kg.
• Designed to accommodate Roband Australia gastronorm pans; compatibility with other brands' pans is not guaranteed.
• Designed to complement Roband's matching curved glass hot food display bar range for a uniform service counter appearance.
• Made in Australia; 12-month parts and labour warranty.
• Static cooling type; electric operation.

Specifications

• Width (mm): 1355
• Depth (mm): 615
• Height (mm): 750
• Weight (kg): 60
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Shipping Weight: 137
• Shipping Cubic: 1.439
• Packed Width (mm): 1440.0
• Packed Height (mm): 1350.0
• Packed Depth (mm): 760.0
• Capacity (Litres): 36lt
• GN Capacity: 8 x 1/2 GN
• Power Delivery: 730w
• Power Rating: 625w
• Power Supply: 240V Single Phase
• Power (kW): 625
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Door Type: Glass
• No. of Doors: 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Display Fridge
• Cooling Type: Static
• Fuel Type: Electric
• Control Type: Thermostat
• Temperature Control: Energy Regulator
• Display Type: Glass Display
