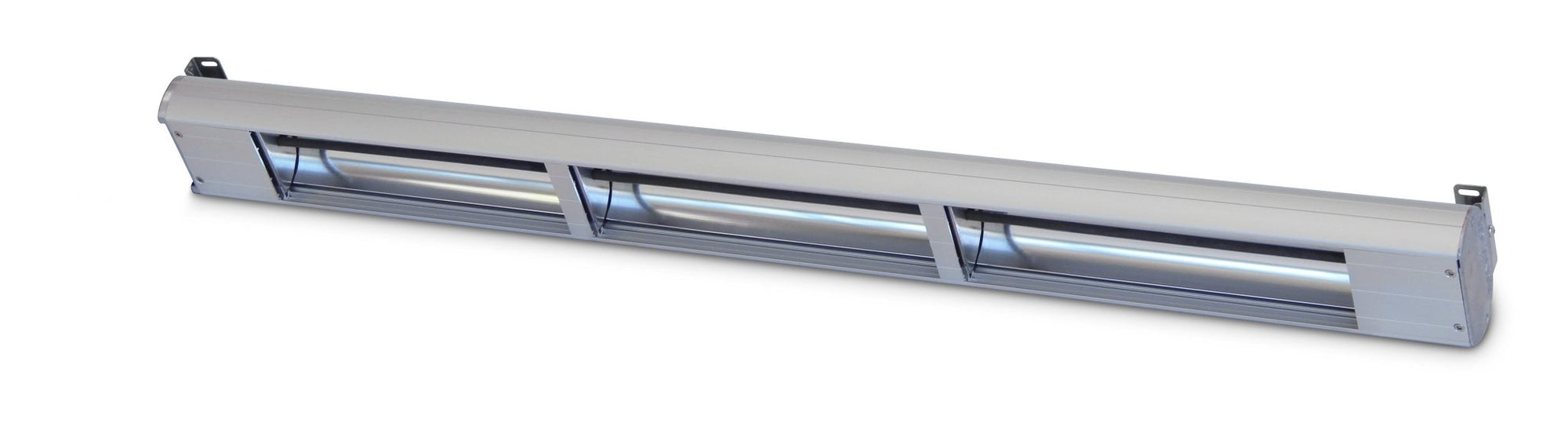

Roband HUE1125 Fabricator Infra-Red Heating Assembly 1125mm

The Roband HUE1125 is a 1125mm fabricator infra-red heating assembly engineered for commercial kitchen and front-of-house applications where consistent radiant warmth is required without visible light. The body is constructed from exclusive extruded anodised aluminium specifically designed to breathe, ensuring effective heat dispersal, while a stainless steel element delivers an exceptionally even spread of heat across the full length of the warming zone.

As a fabricator model, the HUE1125 ships without a control box, energy regulator or on/off switch, making it purpose-built for integration into custom counter, servery or display installations connected to a remote switching arrangement. Installation by a licensed electrician is required. The unit is Australian made from 304 stainless steel and anodised aluminium, and is supplied complete with A, N and E wire in a 1700mm PTFE-insulated lead ready for connection to your own controller. An optional mount kit, the HM600 with tubular framing, is also available.

Key Benefits

• Delivers strong, consistent infra-red warmth with no visible light, keeping food at serving temperature without affecting presentation under ambient lighting.
• Even heat distribution across the full 1125mm length reduces hot and cold spots, maintaining food quality at the pass or servery counter.
• Fabricator design with no integrated controls allows seamless integration into custom-built counters, displays or overhead gantries using a remote switch setup.
• Anodised aluminium body is specifically engineered to breathe, promoting efficient heat transfer and preventing heat build-up within the housing.
• Supplied with 1700mm PTFE-insulated A, N and E wire, giving installers adequate lead length for a clean, concealed connection to a remote controller.
• Compatible with the optional HM600 tubular framing mount kit, providing a flexible and professional mounting solution for a range of installation types.
• Australian made from 304 stainless steel and premium extruded anodised aluminium, ensuring durability in demanding commercial environments.
• 1200W power output at 240V single phase provides sufficient heating capacity, with output precisely managed via an externally supplied energy regulator.

Key Features

• 1125mm overall length suits wide servery counters, pass-through windows and custom display installations.
• Extruded anodised aluminium housing is purpose-designed to breathe for optimal thermal performance.
• Stainless steel heating element produces very even radiant heat across the entire warming area.
• Fabricator configuration: no integrated control box, energy regulator or on/off switch, enabling connection to a remote switch or building management system.
• Supplied with A, N and E wire in PTFE-insulated 1700mm lead for installation to a customer-supplied controller.
• Energy regulator (not supplied) used to precisely regulate heat output when connected externally.
• Fitted with a standard 'L'-shaped mount bracket as the default mounting mechanism.

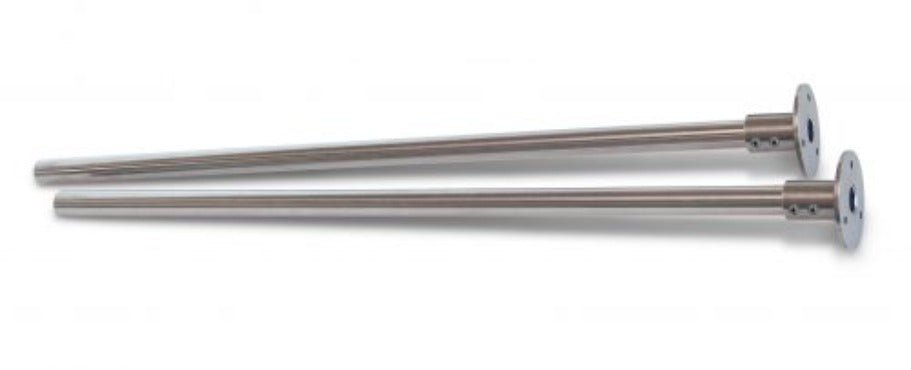

• Optional HM600 mount kit with tubular framing available for alternative installation configurations (electrician required).
• 1200W rated power at 240V single phase; 5.2A current draw.
• 304 stainless steel material construction throughout key components.
• Australian made; suitable for front-of-house or back-of-house use.
• Licensed electrician required for installation.
• GN capacity: 10 x 1/2 GN.

Specifications

• Width (mm): 1125
• Depth (mm): 108
• Height (mm): 65
• Weight (kg): 30
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 5
• Shipping Cubic: 0.021
• Packed Width (mm): 110.0
• Packed Height (mm): 150.0
• Packed Depth (mm): 1300.0
• Capacity (Litres): 1 element
• GN Capacity: 10 x 1/2 GN
• Power Delivery: 1200w
• Power Rating: 1200w
• Power Supply: 240V Single Phase
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Temperature Range: Varies
• Fuel Type: Electric
• Control Type: Manual
