Overview

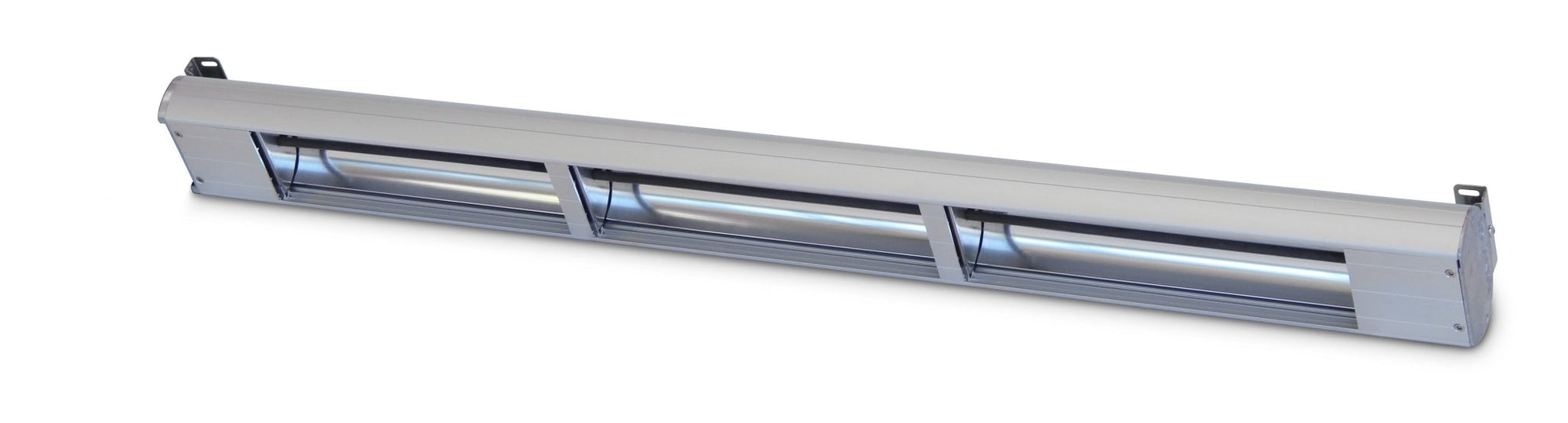

Roband HUE1425 Fabricator Infra-Red Heating Assembly 1425mm

The Roband HUE1425 is a 1425mm fabricator-style infra-red heating assembly designed for integration into custom front-of-house or back-of-house counters and display installations where consistent radiant warmth is required without visible lamp light. The body is constructed from exclusive extruded anodised aluminium engineered to breathe for effective heat management, while the single stainless steel element delivers 1500W of even, radiant heat across the full length of the warming zone.

As a fabricator model, the HUE1425 ships without a control box, energy regulator or on/off switch, making it purpose-built for connection to a remote or custom switch setup. It comes complete with active, neutral and earth wires in PTFE-insulated cable (1700mm length) ready for installation by a licensed electrician. The optional HM600 mount kit with tubular framing is available separately for those requiring a purpose-built support structure. Australian made and backed by Roband's manufacturing heritage.

Key Benefits

• Delivers even, radiant infra-red warmth across the full 1425mm length, keeping plated food at serving temperature without drying it out.
• No visible lamp glow means heat is produced without light interference, preserving the visual presentation of food displays in both front- and back-of-house environments.
• Fabricator design with no built-in controls allows seamless integration into custom counters or remote switching systems for a clean, uncluttered installation.
• Anodised aluminium body is specifically engineered to breathe, supporting effective thermal management and long service life.
• PTFE-insulated wiring (1700mm) is included ready for connection to your own controller, reducing installation complexity for qualified electricians.
• Compatible with the optional HM600 tubular mount kit, giving fabricators a flexible, adjustable support solution that can be cut to the desired length.
• At 1500W and 6.5 amps on a 240V single-phase supply, the unit draws modest power while maintaining consistent heat output.
• Australian made from 304 stainless steel elements and quality aluminium extrusions, ensuring durability in demanding commercial kitchen environments.

Key Features

• 1425mm overall length, 108mm depth, 65mm height
• Exclusive extruded anodised aluminium body designed to breathe for thermal efficiency
• Single stainless steel heating element delivering even radiant heat across the full warming length
• 1500W output at 6.5 amps; 240V single phase supply
• Fabricator model: no control box, energy regulator or on/off switch included, enabling connection to a remote or custom switching setup
• Energy regulator (not supplied) used for precise heat output control when fitted
• Includes active, neutral and earth wires in PTFE-insulated cable, 1700mm length, ready for electrician installation
• Standard 'L'-shaped mounting bracket included

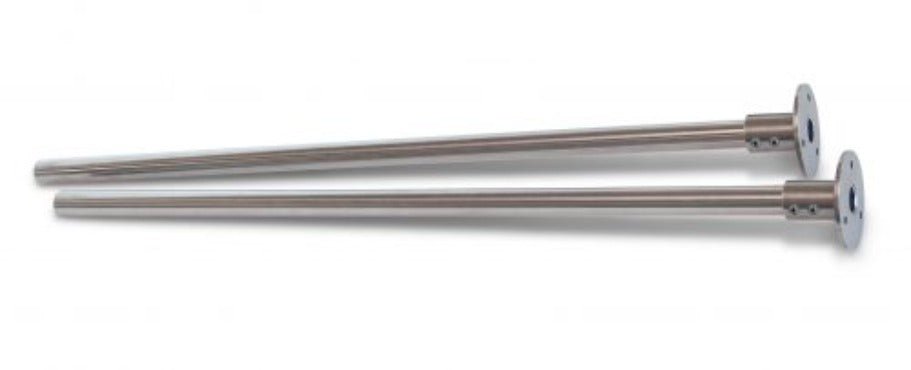

• Optional HM600 mount kit available separately, comprising two 19mm diameter round tubes, inserts and mounting brackets; 600mm tubes can be cut to the desired length; electrician installation required
• 1 element configuration with a GN capacity of 10 x 1/2 GN
• 304 stainless steel element construction
• Australian made
• 12-month warranty
• Electric operation; no gas connection required

Specifications

• Width (mm): 1425
• Depth (mm): 108
• Height (mm): 65
• Weight (kg): 30
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 6
• Shipping Cubic: 0.025
• Packed Width (mm): 110.0
• Packed Height (mm): 150.0
• Packed Depth (mm): 1630.0
• Capacity (Litres): 1 element
• GN Capacity: 10 x 1/2 GN
• Power Delivery: 1500w
• Power Rating: 1500w
• Power Supply: 240V Single Phase
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Temperature Range: Varies
• Fuel Type: Electric
• Control Type: Manual
