Overview

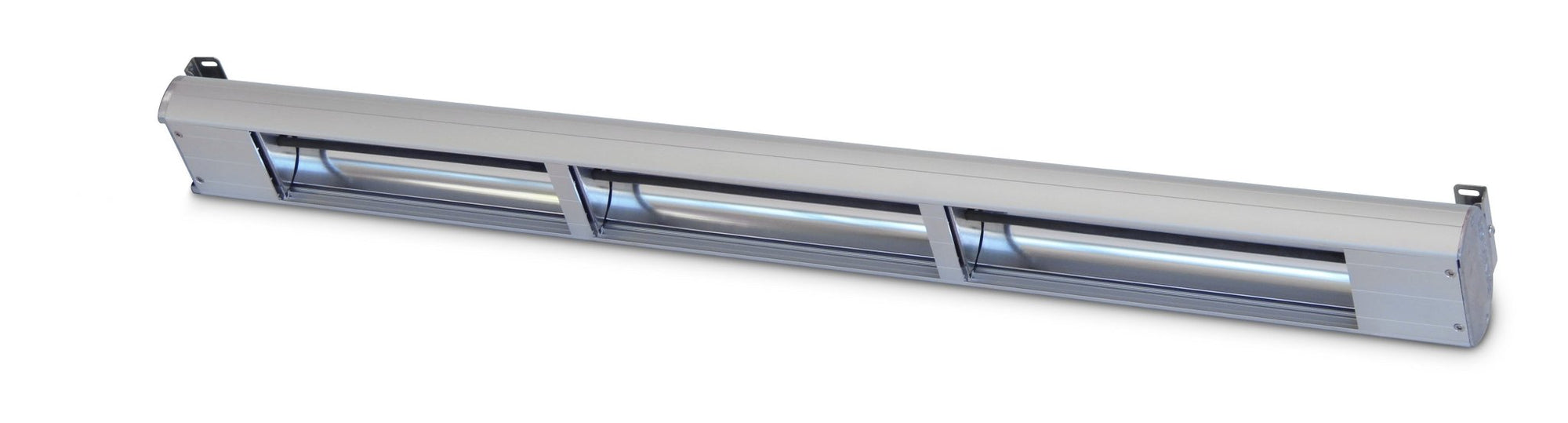

Roband HUE1725 Fabricator Infra-Red Heating Assembly 1725mm

The Roband HUE1725 is a 1725mm fabricator infra-red heating assembly designed for front or back of house applications where consistent, even heat is required without visible light. Constructed from exclusive extruded anodised aluminium with a 304 stainless steel heating element, this Australian-made unit delivers 1800W of radiant warmth at 7.8 amps, making it well suited to pass-through counters, display cabinets and custom fabricated warmers.

As a fabricator model, the HUE1725 ships without a control box, energy regulator or on/off switch, giving installers the flexibility to connect it to a remote switching setup or a separately sourced energy regulator. It comes complete with Active, Neutral and Earth wiring in PTFE-insulated cable at 1700mm length, ready for connection by a licensed electrician. The optional HM600 mount kit with tubular framing is available separately for those requiring a standalone mounting solution.

Key Benefits

• Delivers powerful, even infra-red warmth along the full 1725mm length, keeping food at temperature across a wide service area.
• Produces heat without emitting visible light, making it ideal for environments where a clean, unobtrusive appearance is required.
• Fabricator design with no integrated controls allows seamless integration into custom counters, displays and remote switch setups.
• Anodised aluminium body is engineered to breathe, promoting airflow and efficient heat management during extended service periods.
• Australian made from 304 stainless steel elements and quality aluminium extrusion, ensuring durability in demanding commercial kitchen conditions.
• PTFE-insulated wiring supplied at 1700mm provides a safe, heat-resistant connection lead ready for a licensed electrician to terminate.
• Compatible with the optional HM600 mount kit featuring 19mm diameter round tubes, inserts and mounting brackets, allowing freestanding or overhead installation.
• Energy regulator (sold separately) enables precise control of heat output to suit different food holding requirements.

Key Features

• Fabricator infra-red heating assembly, 1725mm in length
• Manufactured from exclusive extruded anodised aluminium, designed to breathe for efficient heat management
• 304 stainless steel heating element providing very even radiant heat over the full warming length
• 1800W output at 7.8 amps; 240V single phase supply
• No integrated control box, energy regulator or on/off switch, enabling connection to a remote switching arrangement
• Supplied with Active, Neutral and Earth wires in PTFE-insulated cable, 1700mm in length, for installation to a separate controller
• Standard 'L'-shaped mount bracket included

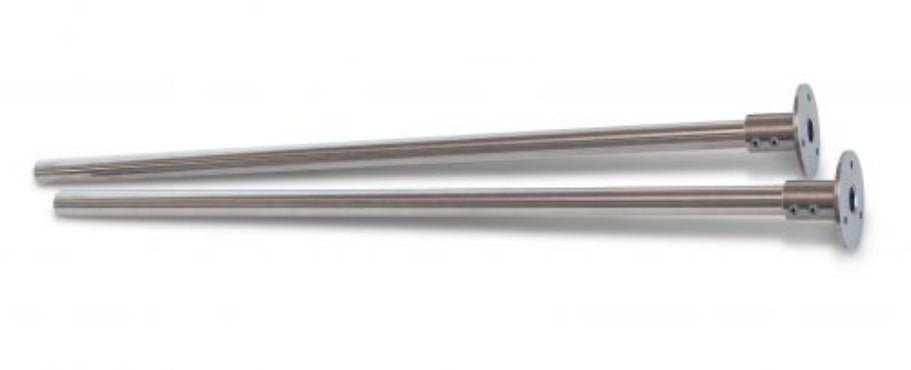

• Compatible with optional HM600 mount kit, which includes two 19mm diameter round tubes (600mm, cuttable to length), inserts and mounting brackets
• Installation by a licensed electrician is required
• Suitable for front or back of house use where heat without light is needed
• Australian made
• 12-month warranty

Specifications

• Width (mm): 1725
• Depth (mm): 108
• Height (mm): 65
• Weight (kg): 30
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 6
• Shipping Cubic: 0.025
• Packed Width (mm): 150.0
• Packed Height (mm): 150.0
• Packed Depth (mm): 1730.0
• Capacity (Litres): 1 element
• GN Capacity: 10 x 1/2 GN
• Power Delivery: 1800w
• Power Rating: 1800w
• Power Supply: 240V Single Phase
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Temperature Range: Varies
• Fuel Type: Electric
• Control Type: Manual
