Overview

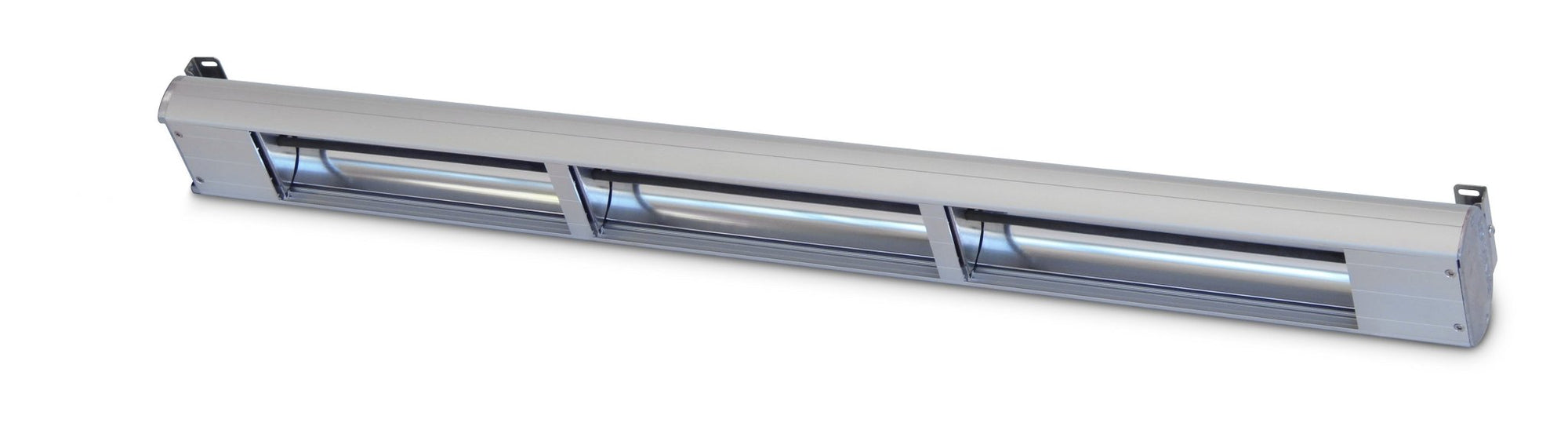

Roband HUE825 Fabricator Infra-Red Heating Assembly 825mm

The Roband HUE825 is an Australian-made infra-red heating assembly designed for integration into custom counters, servery passes, and display units in both front and back of house commercial kitchen environments. Constructed from exclusive extruded anodised aluminium with a stainless steel heating element, it delivers even, radiant heat without visible light, making it ideal wherever warmth is needed without the glow of a traditional heat lamp.

As a Fabricator model, the HUE825 ships without a control box, energy regulator, or on/off switch, allowing it to be wired into a remote switch or centralised control setup by a licensed electrician. It comes complete with a 1700mm PTFE-insulated Active, Neutral and Earth wire lead ready for connection to your own controller, and is compatible with the optional HM600 mount kit for tubular framing installations.

Key Benefits

• Delivers consistent, even radiant heat from a single stainless steel element, holding food at serving temperature without hot spots.
• Produces heat without emitting visible light, keeping the aesthetic of front-of-house displays clean and unobtrusive.
• No built-in controls means seamless integration into remote switch or centralised control systems, giving operators full flexibility over their setup.
• Suitable for both front and back of house applications, adapting to a wide range of commercial kitchen and servery configurations.
• Australian-made from 304 stainless steel and extruded anodised aluminium, ensuring durability and resistance to the demands of a commercial environment.
• Compatible with the optional HM600 tubular mount kit, enabling straightforward custom installation within existing fabrication or counter framing.
• 1700mm PTFE-insulated wire lead included, reducing installation preparation time for your electrician.
• Part of a scalable range of heating assembly lengths, allowing matching units to be specified across different counter sizes.

Key Features

• Constructed from exclusive extruded anodised aluminium for durability and a clean finish.
• Stainless steel (304) heating element produces even, consistent radiant heat.
• 825mm length, suited to a single GN capacity with support for up to 10 x 1/2 GN configurations.
• 900W output at 240V single phase (230V rated), drawing 3.9 amps.
• Fabricator design: no control box, energy regulator, or on/off switch included, enabling connection to a remote or custom switching setup.
• Heat output is controlled via an energy regulator (not supplied).
• Supplied with A, N and E wire in PTFE insulation, 1700mm in length, ready for installation to a customer-supplied controller.
• Infra-red heat only, no visible light emitted, suitable for environments where light-free warmth is required.
• Licensed electrician required for installation.
• Optional HM600 mount kit available, comprising 2 x 19mm diameter round tubes, inserts, and mounting brackets with instructions; 600mm tubes can be cut to the desired length.
• Australian made.
• 12-month warranty.

Specifications

• Width (mm): 825
• Depth (mm): 108
• Height (mm): 65
• Weight (kg): 30
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 4
• Shipping Cubic: 0.017
• Capacity (Litres): 1 element
• GN Capacity: 10 x 1/2 GN
• Power Delivery: 900w
• Power Rating: 900w
• Power Supply: 240V Single Phase
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Temperature Range: Varies
• Fuel Type: Electric
• Control Type: Manual
