Overview

Roband HUQ1125E Fabricator Quartz Heat Lamp Assembly 1125mm

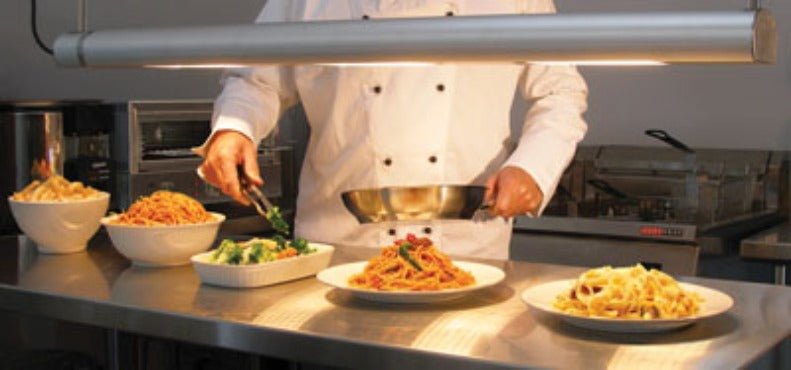

The Roband HUQ1125E is an Australian-made quartz heat lamp assembly designed for front or back of house use in commercial kitchens, pass-through areas and service counters. Constructed from exclusive extruded anodised aluminium, this 1125mm assembly houses three quartz infrared lamps that deliver a balanced combination of heat and light, keeping food at safe serving temperatures and enhancing hot-food presentation.

As a Fabricator model, the HUQ1125E is supplied without a control box or on/off switch, allowing it to be wired into a remote or custom switch setup to suit your specific counter or servery configuration. Installation requires a licensed electrician, and the unit comes complete with A, N and E wire in PTFE insulation at 1700mm length ready for connection to your own controller. Easy Fit quartz globes with a protective outer quartz layer can be replaced quickly without calling an electrician, minimising downtime in busy service environments.

Key Benefits

• Keeps food at safe serving temperatures under continuous infrared heat, reducing the risk of food falling out of the hot-holding zone during service.
• Balanced heat and light output enhances food presentation at pass-through and service counter areas, helping to drive hot-food sales.
• Easy Fit globe design with a protective quartz outer layer allows lamp replacement in seconds by staff, without requiring an electrician.
• No integrated control box means the assembly can be connected to a remote switch or centralised control system, providing flexibility in counter and servery design.
• Extruded anodised aluminium construction is lightweight, corrosion-resistant and suited to both front-of-house and back-of-house environments.
• Australian-made quality with Roband's engineering backing, supporting local spare parts availability and after-sales support.
• Standard mounting mechanism is straightforward to install, with optional tubular framing mount kits available for more complex configurations.
• Metal lamp guard protects globes from accidental damage during busy service periods.

Key Features

• 1125mm overall length accommodating three quartz infrared lamps at 1050W total power draw
• Fabricator model: no integrated control box or on/off switch, designed for connection to a remote switch setup (not supplied)
• Supplied with A, N and E wire in PTFE insulation, 1700mm length, ready for electrician installation to your own controller

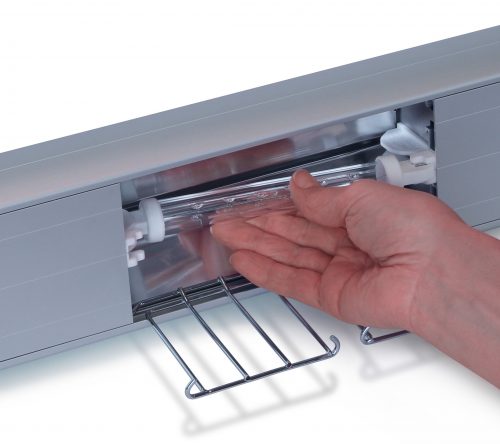

• Easy Fit quartz globes featuring a protective quartz outer layer encapsulating the inner globe for safer handling and tool-free replacement without an electrician
• Body manufactured from exclusive extruded anodised aluminium for durability and corrosion resistance
• Metal wire guard covers protect the lamps during operation

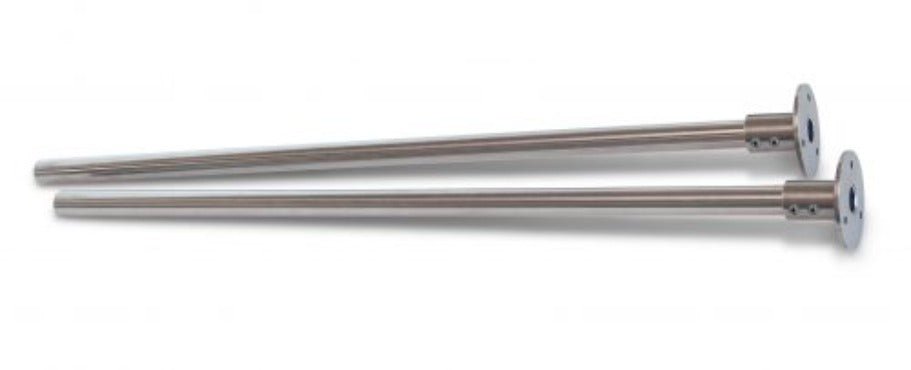

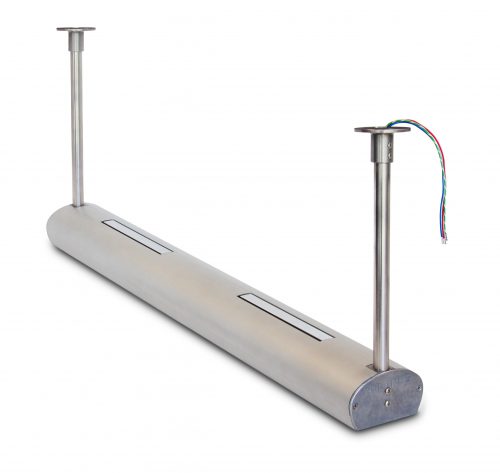

• Standard mounting mechanism included; optional mount kits with tubular framing available separately
• Suitable for front-of-house or back-of-house applications including pass-through areas and service counters
• Delivers a balance of heat and light to maintain food temperature while enhancing visual appeal
• 240V single-phase power supply (230V nominal); 4.6A current draw
• Capacity: 3 lamps; GN capacity 10 x 1/2 GN
• Australian made

Specifications

• Width (mm): 1125
• Depth (mm): 108
• Height (mm): 65
• Weight (kg): 15
• Colour: Stainless Steel
• Shipping Weight: 5
• Shipping Cubic: 0.022
• Packed Width (mm): 200.0
• Packed Height (mm): 400.0
• Packed Depth (mm): 1400.0
• Capacity (Litres): 3 lamps
• GN Capacity: 10 x 1/2 GN
• Power Delivery: 1050w
• Power Rating: 1050w
• Power Supply: 240V Single Phase
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Temperature Range: Varies
• Fuel Type: Electric
• Control Type: Manual
• Interior Lighting: Quartz Infrared
