Overview

Roband HUQ2025E Fabricator Quartz Heat Lamp Assembly 2025mm

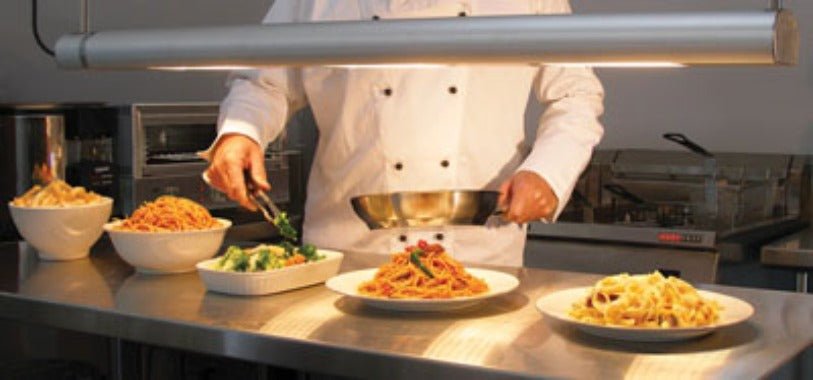

The Roband HUQ2025E is an Australian-made fabricator quartz heat lamp assembly spanning 2025mm and housing five quartz infrared lamps delivering 1750W of combined output. Constructed from exclusive extruded anodised aluminium, it is engineered for both front-of-house display counters and back-of-house pass-through areas, providing a carefully balanced combination of radiant heat and light to keep plated food at safe serving temperatures.

As a Fabricator model, the HUQ2025E ships without a control box or on/off switch, making it purpose-built for integration into a remote switch setup of your choosing. It comes complete with active, neutral and earth wiring in PTFE-insulated cable at 1700mm length, ready for connection to your own controller by a licensed electrician. Easy Fit quartz globes feature a protective quartz outer layer encapsulating the inner halogen lamp, allowing lamp replacement without calling an electrician once the unit is installed.

Key Benefits

• Keeps food at safe serving temperatures across a wide 2025mm span, ideal for high-volume service counters handling large numbers of GN pans simultaneously.
• Balanced heat-and-light output enhances food presentation while maintaining holding temperature, supporting hot-food sales in front-of-house settings.
• Fabricator design integrates seamlessly into custom or existing remote switch infrastructure, reducing clutter and allowing centralised control of multiple units.
• Easy Fit globes with a protective quartz outer layer can be swapped out quickly by staff without an electrician, minimising downtime between services.
• Extruded anodised aluminium construction resists corrosion and daily cleaning in demanding commercial kitchen environments.
• Available in multiple sizes and with optional tubular framing mount kits, providing flexibility to suit a variety of installation configurations.
• Australian-made to commercial standards, backed by Roband's local engineering and support network.

Key Features

• 2025mm overall length fabricator heat lamp assembly with no integrated control box or on/off switch, designed for connection to a remote switch setup (not supplied).
• Five quartz infrared halogen lamps delivering 1750W total at 240V single phase.

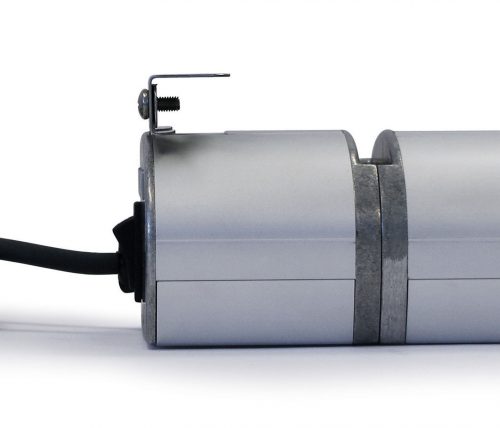

• Exclusive extruded anodised aluminium body, suitable for front-of-house and back-of-house installation.

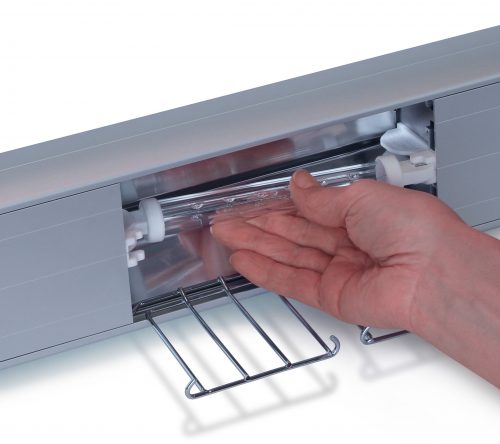

• Easy Fit quartz globes feature a protective quartz outer layer encapsulating the inner halogen lamp for safer handling and fast replacement without an electrician.
• Metal wire guard covers protect lamps and contribute to safe operation.
• Supplied with active, neutral and earth wiring in PTFE-insulated cable, 1700mm in length, for connection to your own controller; licensed electrician required for installation.

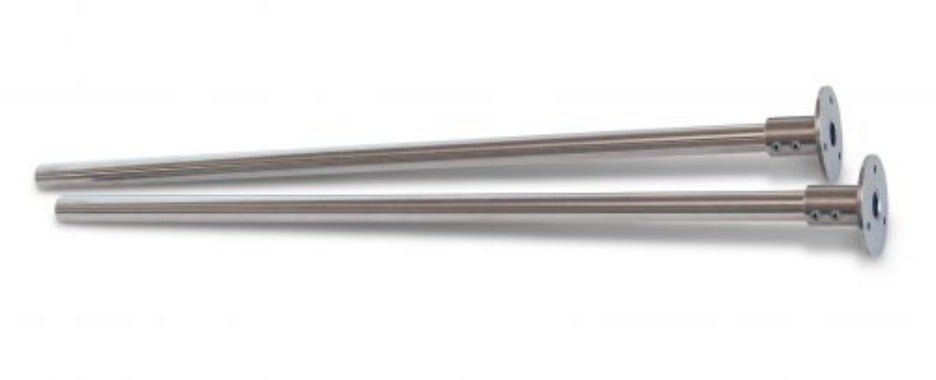

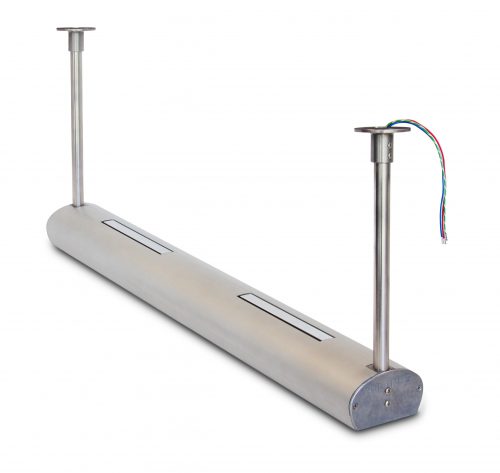

• Standard mounting mechanism included; optional mount kits with tubular framing available separately.
• 304 stainless steel colour finish with anodised aluminium construction.
• Sized to accommodate up to 10 x 1/2 GN pans across its length.
• Manufactured in Australia.

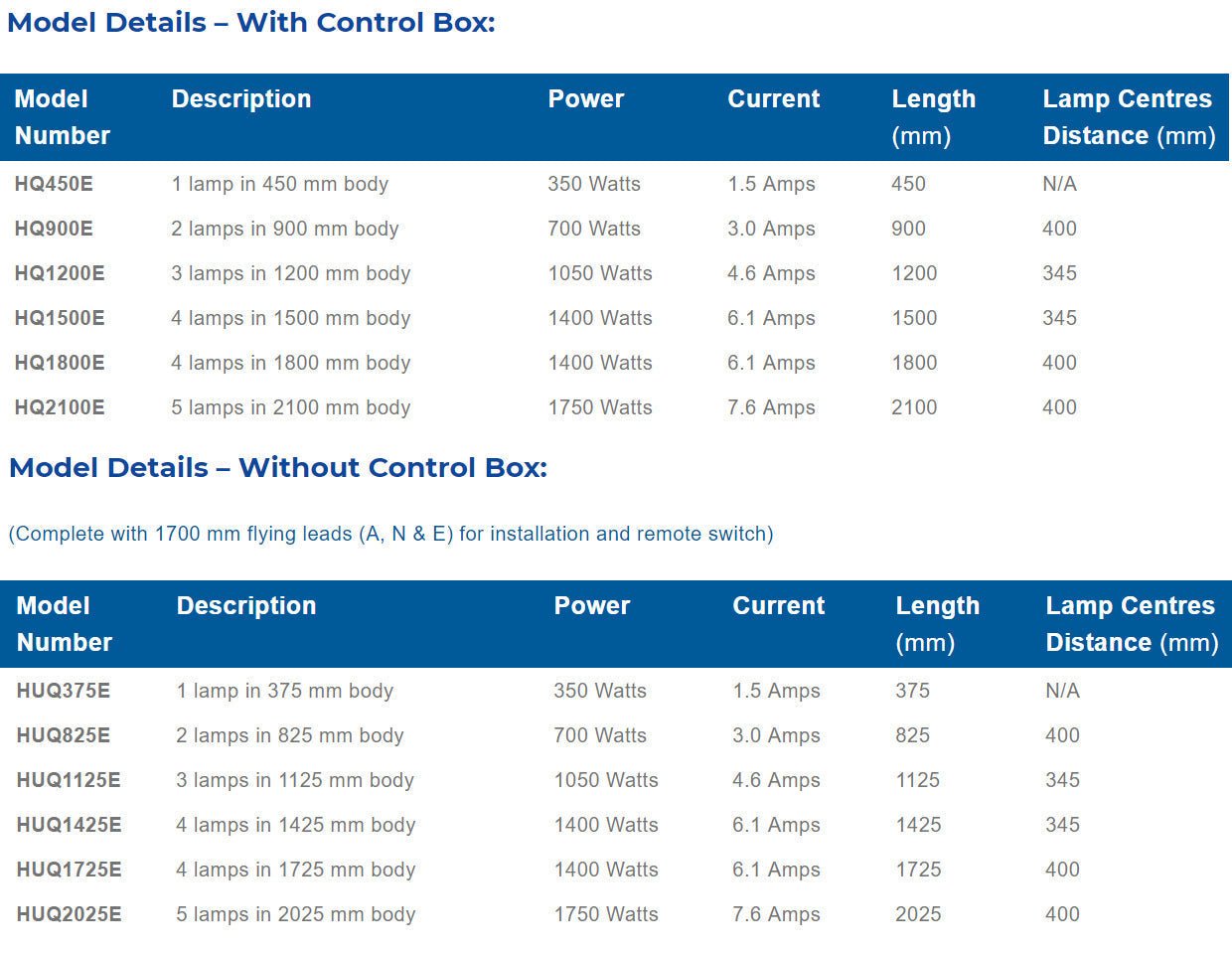

Specifications

• Width (mm): 2025
• Depth (mm): 108
• Height (mm): 65
• Weight (kg): 15
• Colour: Stainless Steel
• Shipping Weight: 8
• Shipping Cubic: 0.035
• Packed Width (mm): 200.0
• Packed Height (mm): 400.0
• Packed Depth (mm): 2200.0
• Capacity (Litres): 5 lamps
• GN Capacity: 10 x 1/2 GN
• Power Delivery: 1750w
• Power Rating: 1750w
• Power Supply: 240V Single Phase
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Temperature Range: Varies
• Fuel Type: Electric
• Control Type: Manual
• Interior Lighting: Quartz Infrared
