Overview

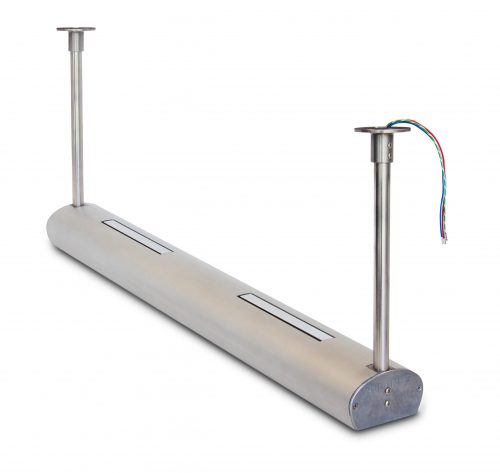

Roband HUQ825E Fabricator Quartz Heat Lamp Assembly 825mm

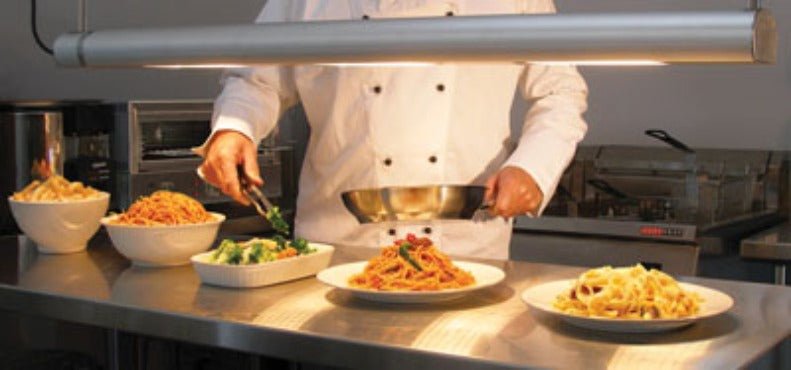

The Roband HUQ825E is an Australian-made quartz heat lamp assembly designed for front or back of house food warming applications. Constructed from exclusive extruded anodised aluminium, this 825mm assembly houses two quartz infrared lamps that deliver a practical balance of heat and light, making it well suited to pass-through areas, service counters, cafes and takeaway operations.

As a Fabricator model, the HUQ825E is supplied without a control box or on/off switch, allowing it to be wired into a remote switch setup of your own choosing. It comes complete with active, neutral and earth wiring in PTFE-insulated cable at 1700mm length, ready for connection by a licensed electrician. Optional tubular framing mount kits are available separately, providing flexible installation to suit a range of counter configurations.

Key Benefits

• Keeps food at safe, appealing serving temperatures across busy service periods, reducing hold time waste
• Combines heat and light output to enhance food presentation and drive hot-food sales at the point of service
• Easy Fit quartz globes feature a protective outer quartz layer around the inner globe, so lamp replacement is quick and does not require an electrician
• Fabricator design with no built-in switch allows seamless integration into custom or centralised remote switching setups
• Extruded anodised aluminium construction provides a durable, corrosion-resistant body suited to both front and back of house environments
• Wire guard covers protect the lamps and reduce the risk of accidental contact during service
• Standard mounting mechanism included, with optional tubular framing mount kits available for added installation flexibility
• Australian made, backed by Roband's established reputation for commercial kitchen equipment quality and local support

Key Features

• 825mm overall length accommodating two quartz infrared lamps
• Body manufactured from exclusive extruded anodised aluminium

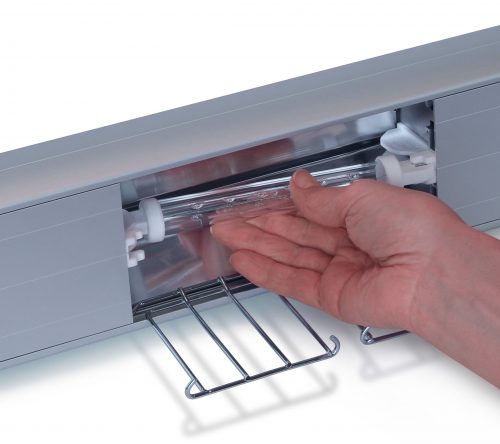

• Easy Fit globes with a protective quartz outer layer encapsulating the inner globe for safer, tool-free handling and replacement
• Wire guard covers included for lamp protection
• Fabricator configuration: no control box or on/off switch, designed for connection to a remote switch setup (remote switch not supplied)
• Supplied with active, neutral and earth wiring in PTFE-insulated cable, 1700mm length, ready for electrician installation

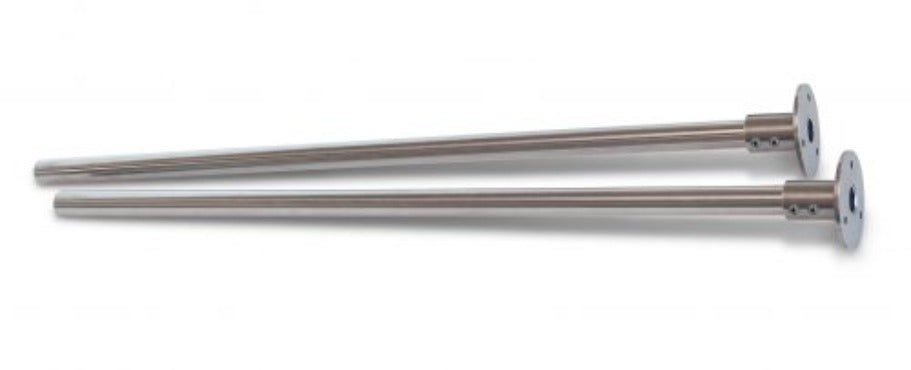

• Standard mounting mechanism included; optional tubular framing mount kits available separately
• 700W power rating, 240V single phase supply
• Delivers a balance of heat and light output suitable for pass-through and counter service areas
• 304 stainless steel finish elements complement the anodised aluminium body
• Australian made product

Specifications

• Width (mm): 825
• Depth (mm): 108
• Height (mm): 65
• Weight (kg): 15
• Colour: Stainless Steel
• Shipping Weight: 4
• Shipping Cubic: 0.017
• Packed Width (mm): 200.0
• Packed Height (mm): 400.0
• Packed Depth (mm): 1200.0
• Capacity (Litres): 2 lamps
• GN Capacity: 10 x 1/2 GN
• Power Delivery: 700w
• Power Rating: 700w
• Power Supply: 240V Single Phase
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Temperature Range: Varies
• Fuel Type: Electric
• Control Type: Manual
• Interior Lighting: Quartz Infrared
