Overview

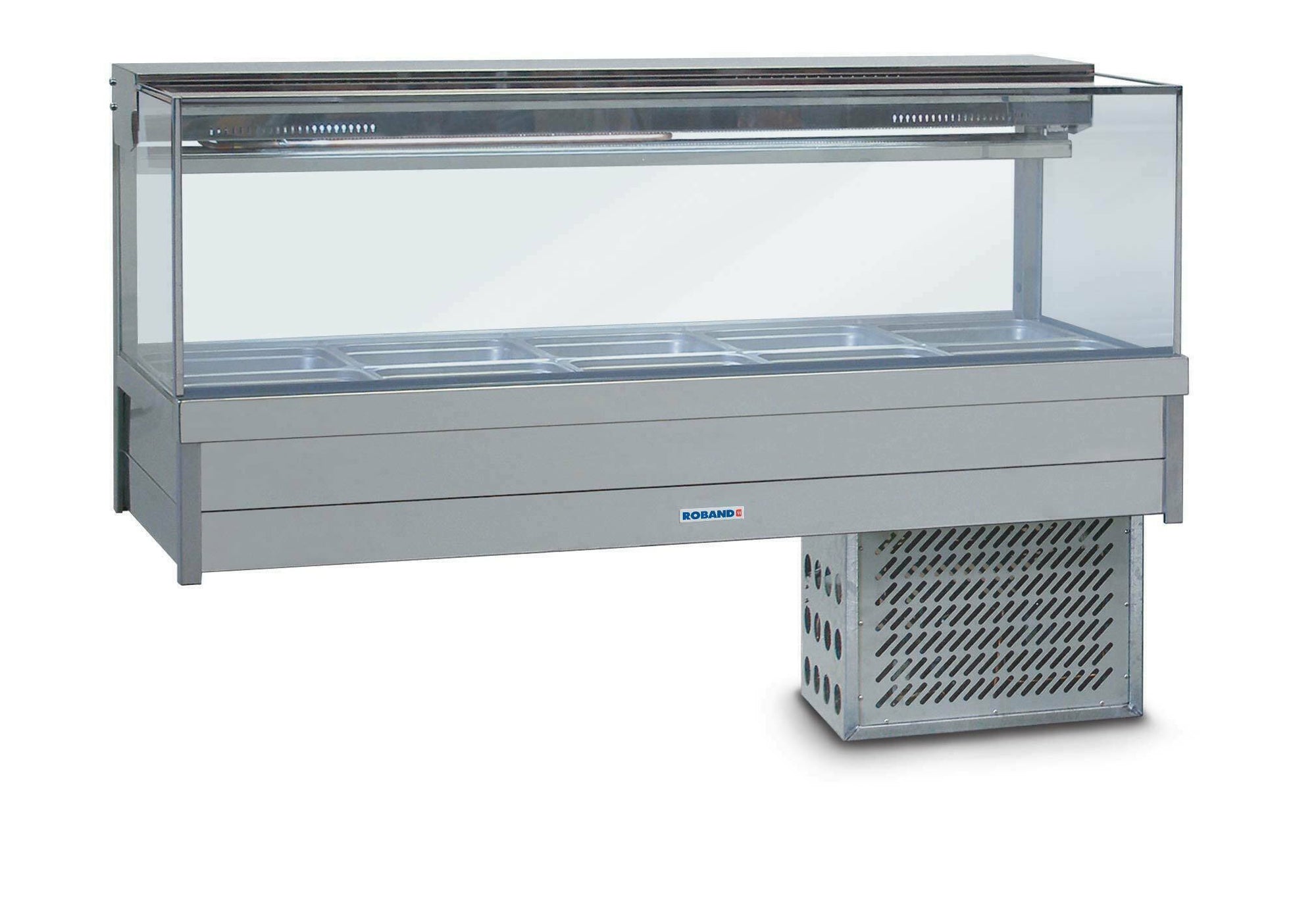

Roband SRX25RD Square Glass Refrigerated Display Bar, 10 Pans

The Roband SRX25RD is an Australian-made square glass refrigerated display bar designed to keep cold food fresh and visually appealing at service counters, delis and cafes. Built from 304 stainless steel with a tubular frame, it holds up to 10 x 1/2 GN pans (65 mm deep) and operates on R404A refrigerant across a temperature range of 0°C to 4°C. Its square glass profile is styled to complement the matching Roband 'E' series hot food display bars, allowing operators to present hot and cold foods together with a uniform, modern appearance.

Cooling is delivered from two sources simultaneously: a cold plate beneath the pans and a cross fin coil above, ensuring consistent food temperature throughout the display. The unit is designed for holding and displaying prechilled food (5°C or less) immediately prior to sale, and is rated for operation in a Climate Class 3 environment (25°C, 60% RH). It can be bench mounted, built-in or fitted to a trolley to suit different venue layouts, and comes supplied with 10 x 1/2 GN 65 mm pans ready to use.

Key Benefits

• Dual-source cooling from a bottom cold plate and top cross fin coil keeps food at a safe, consistent temperature throughout the entire display area.
• Ten included 1/2 GN 65 mm pans mean the unit is ready for immediate service with no additional pan purchase required.
• Toughened safety glass front and overhead fluorescent lighting maximise product visibility to customers, helping to drive impulse purchases.

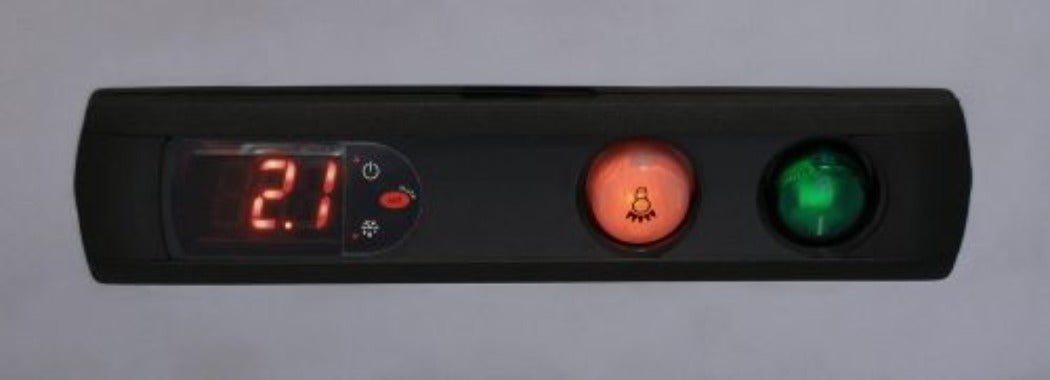

• Adjustable digital thermostat with temperature readout gives operators precise, easy-to-monitor temperature control during service.
• Rear roller doors allow staff quick and convenient access to food from behind the counter without disrupting the front display.
• Removable cross bars and a safety lock ball valve drain make cleaning fast and straightforward, reducing downtime between service periods.
• Quiet operation keeps the unit unobtrusive in customer-facing environments such as delis, cafes and food service counters.
• Australian-made construction using 304 stainless steel ensures durability and compliance with local food safety standards.
• Compatible with Roband's 'E' series hot food bars, enabling a matched hot-and-cold display setup with a consistent contemporary aesthetic.

Key Features

• Square glass cold food display bar with modern styling suited to contemporary store layouts.
• Dual cooling system: cold plate (bottom) and cross fin coil (top) for uniform temperature across all pans.
• Accepts a variety of Gastronorm pans up to 65 mm deep.
• Includes 10 x 1/2 GN 65 mm pans.
• Total capacity: 45 litres.
• 304 stainless steel construction with tubular frame.
• Toughened safety glass front panel.
• Rear roller doors fitted as standard for rear-of-counter access.
• Overhead fluorescent light to illuminate displayed food.
• Adjustable digital thermostat with temperature readout.
• Removable cross bars for flexible pan configuration and easy cleaning.
• Safety lock ball valve drain for safe and controlled drainage during cleaning.
• Streamlined design for easy cleaning and maintenance.
• Environmentally friendly R404A refrigerant.
• Quiet operation suitable for front-of-house placement.
• Designed for Climate Class 3 conditions (25°C ambient, 60% RH).
• Suitable for bench mounting, built-in installation or trolley mounting.
• Designed to complement the Roband 'E' series hot food display bars for a matched presentation.
• Power: 815 W (delivery 730 W), 240 V single phase, 10 A plug.
• Temperature range: 0°C to 4°C.
• Dimensions: 1680 mm (W) x 615 mm (D) x 750 mm (H) excluding refrigeration unit (add 450 mm for motor cage height).
• Unit weight: 60 kg.
• Australian made.
• 12-month parts and labour warranty.

Specifications

• Width (mm): 1680
• Depth (mm): 615
• Height (mm): 750
• Weight (kg): 60
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Shipping Weight: 171
• Shipping Cubic: 1.778
• Packed Width (mm): 1780.0
• Packed Height (mm): 1350.0
• Packed Depth (mm): 760.0
• Capacity (Litres): 45lt
• GN Capacity: 10 x 1/2 GN
• Power Delivery: 730w
• Power Rating: 815w
• Power Supply: 240V Single Phase
• Power (kW): 815
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Door Type: Glass
• No. of Doors: 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Display Fridge
• Cooling Type: Static
• Fuel Type: Electric
• Control Type: Thermostat
• Temperature Control: Energy Regulator
• Display Type: Glass Display
