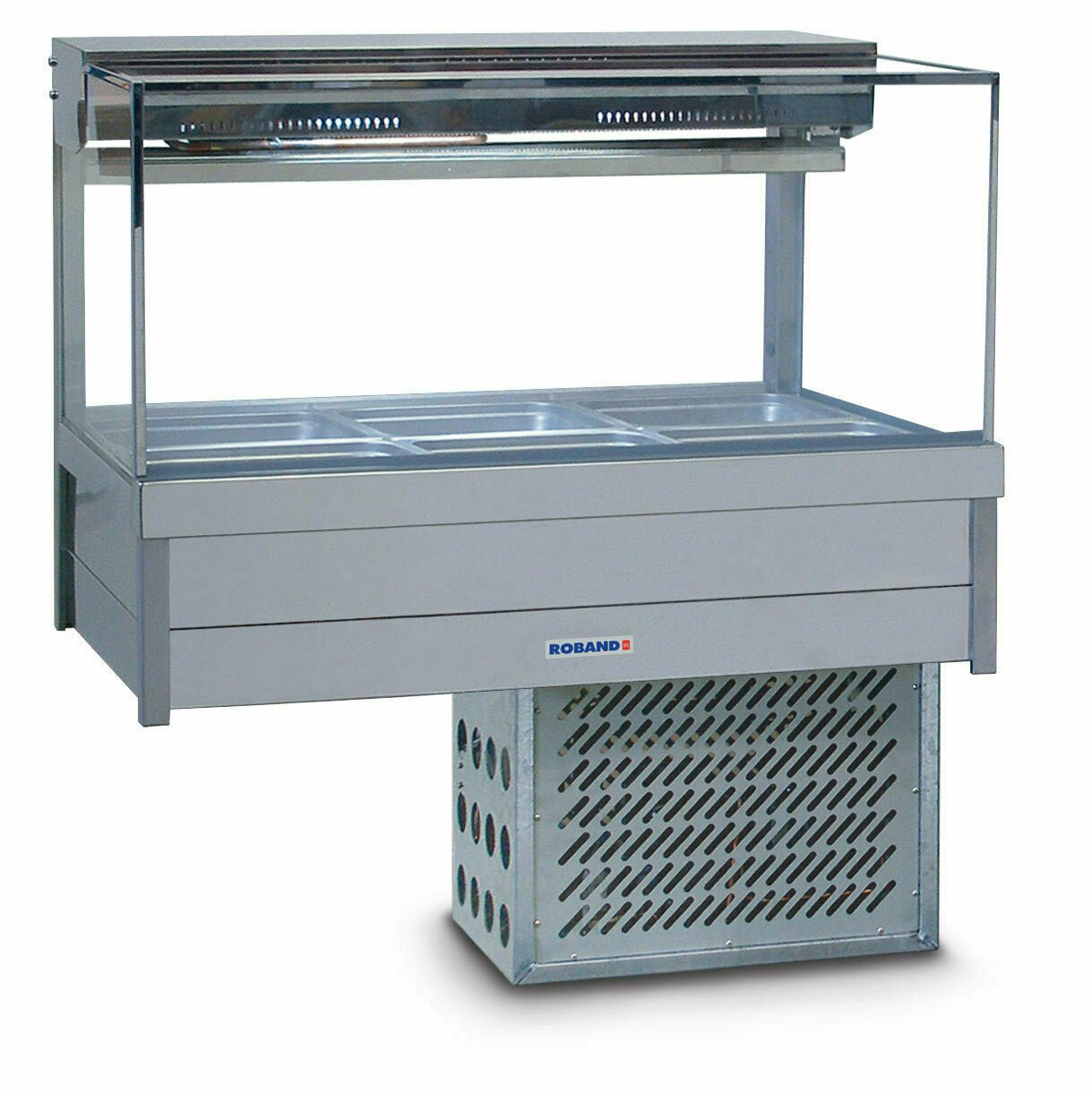

Roband SRX23RD Square Glass Refrigerated Display Bar, 6 Pans

The Roband SRX23RD is a six-pan square glass refrigerated display bar, designed and manufactured in Australia for busy commercial service counters, delis, cafes and food retail environments. Its dual cooling system combines a cold plate beneath the pans and a cross fin coil overhead, ensuring chilled food is maintained at a safe temperature from two directions simultaneously. The unit accepts a variety of Gastronorm pans up to 65 mm deep and comes supplied with six half-size 65 mm GN pans ready for immediate use.

Constructed entirely from 304 stainless steel with a tubular frame, the SRX23RD pairs robust durability with a contemporary square-glass profile that complements modern store layouts. It is designed to match Roband's 'E' series hot food display bars, allowing operators to present both hot and cold food together with a uniform appearance. Intended for holding and displaying pre-chilled food immediately prior to sale, all product placed in the unit should be pre-chilled to 5°C or below. The unit is rated for operation in a Climate Class 3 ambient environment of 25°C and 60% relative humidity.

Key Benefits

• Dual-source cooling from both a bottom cold plate and a top cross fin coil keeps food consistently cold across the full depth of each pan, reducing the risk of temperature variance during service.
• Six half-size 65 mm GN pans are included straight out of the box, so the unit is ready to deploy without additional pan purchases.
• Toughened safety glass front and overhead fluorescent lighting showcase food attractively to customers, encouraging impulse purchases and maximising sales potential.
• Adjustable digital thermostat with a temperature readout gives operators precise, visible control over the holding temperature, supporting food safety compliance.
• Rear roller doors provide staff with quick, practical access to replenish and rotate food without disrupting the customer-facing display.
• Removable cross bars and a streamlined interior make the unit straightforward to clean and sanitise between service periods.
• Quiet operation ensures the unit suits front-of-house placements in cafes, delicatessens and retail counters without creating unwanted noise.
• Runs on environmentally friendly R404A refrigerant, and is Australian-made with a 12-month parts and labour warranty for local support and peace of mind.
• Matches the Roband 'E' series hot food display bars in styling, enabling operators to create a cohesive hot-and-cold display counter with a uniform, modern appearance.

Key Features

• Dual cooling system: cold plate beneath pans (bottom cooling) combined with cross fin coil (top cooling) for consistent food temperature throughout
• Accepts a variety of Gastronorm pans up to 65 mm deep across a 6 x 1/2 GN configuration
• Includes 6 x half-size (1/2 GN) 65 mm deep pans
• 27-litre total pan capacity

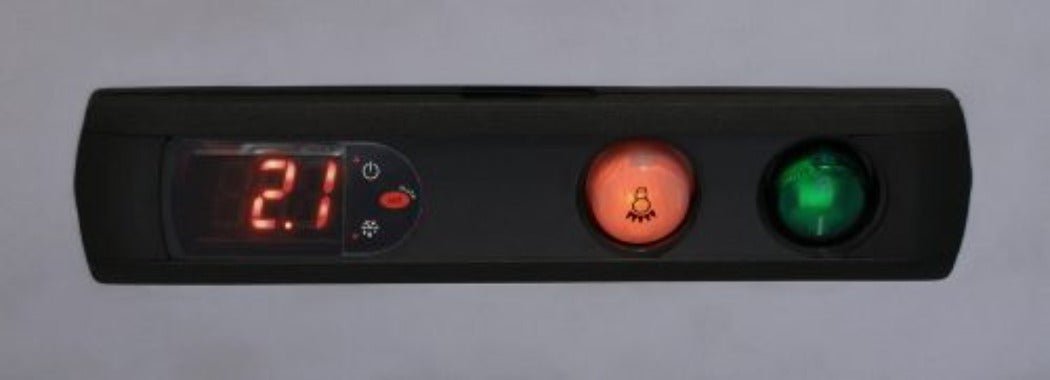

• Adjustable digital thermostat with temperature readout
• Operating temperature range: 0°C to 4°C
• Designed for pre-chilled food holding and display; all product should be pre-chilled to 5°C or below before loading
• Climate Class 3 rated: designed to operate at up to 25°C ambient temperature and 60% relative humidity
• Toughened safety glass front panel
• Rear roller doors fitted as standard for staff access
• Overhead fluorescent light to illuminate and enhance food presentation
• Safety lock ball valve drain for controlled and safe drainage
• Removable cross bars for flexible pan arrangement and easier cleaning
• Streamlined interior surfaces for straightforward cleaning and sanitation
• Quiet operation suitable for front-of-house placement
• All 304 stainless steel construction with tubular frame
• Environmentally friendly R404A refrigerant
• Dimensions: 1030 mm (W) x 615 mm (D) x 750 mm (H) excluding refrigeration unit; add 450 mm for motor cage overall height
• Power: 530 W, 2.3 A, 10 A plug, 240 V single phase
• Can be bench mounted, built in, or fitted to a trolley (trolley available separately)
• Designed to complement Roband 'E' series hot food display bars for a matching combined display
• Australian made; 12-month parts and labour warranty
• Colour: stainless steel
• Weight: 60 kg

Specifications

• Width (mm): 1030
• Depth (mm): 615
• Height (mm): 750
• Weight (kg): 60
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Shipping Weight: 109
• Shipping Cubic: 1.119
• Packed Width (mm): 1120.0
• Packed Height (mm): 1350.0
• Packed Depth (mm): 760.0
• Capacity (Litres): 27lt
• GN Capacity: 6 x 1/2 GN
• Power Delivery: 520w
• Power Rating: 530w
• Power Supply: 240V Single Phase
• Power (kW): 530
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Door Type: Glass
• No. of Doors: 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Display Fridge
• Cooling Type: Static
• Fuel Type: Electric
• Control Type: Thermostat
• Temperature Control: Energy Regulator
• Display Type: Glass Display
