Overview

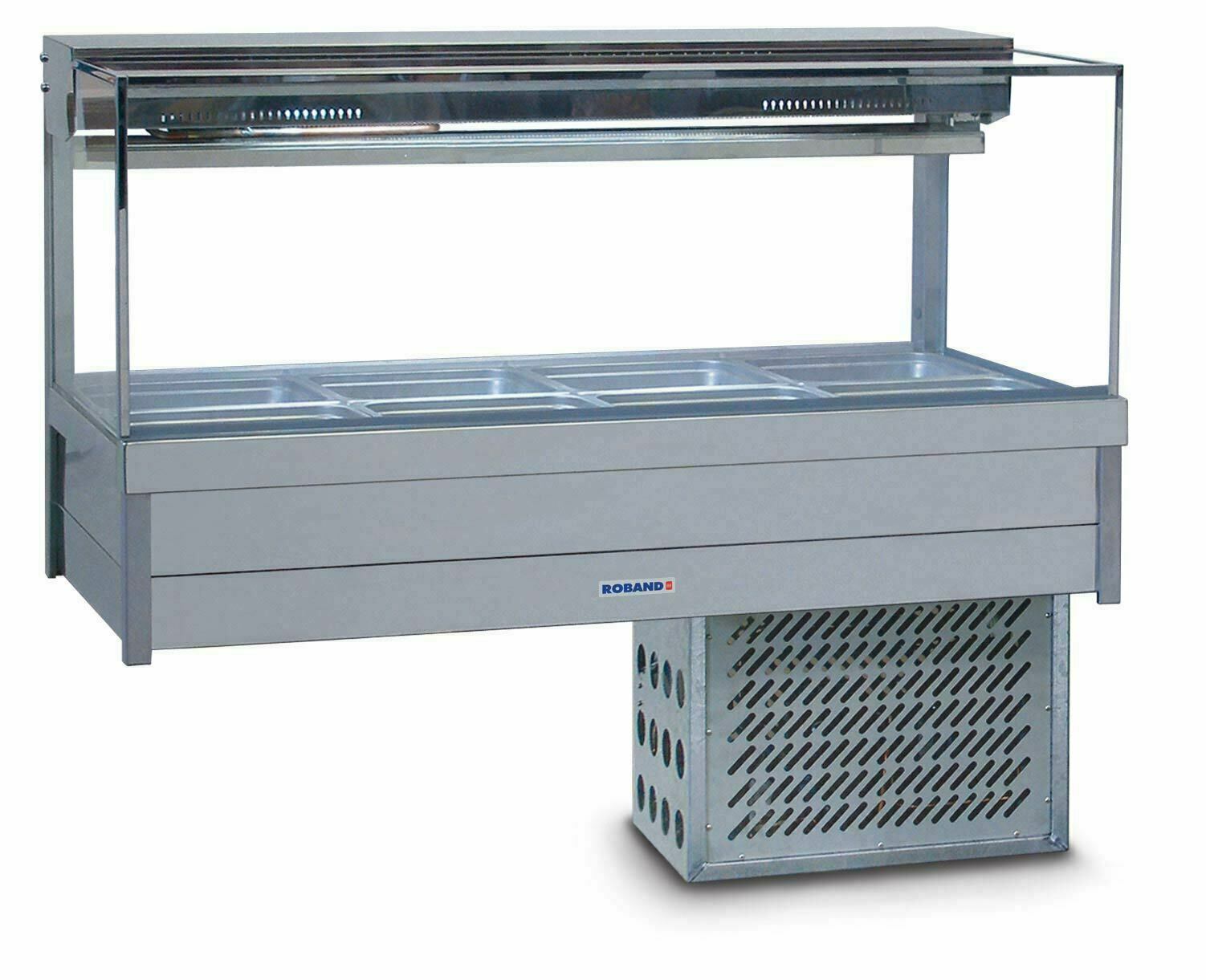

Roband SFX24RD Square Glass Refrigerated Display Bar - Piped and Foamed Only (No Motor), 8 Pans

The Roband SFX24RD is an Australian-made, square glass cold food display bar constructed from 304 stainless steel with a tubular frame. It uses a cold plate and cross fin coil cooling system to deliver even refrigeration from both the top and bottom of the unit, maintaining temperatures between 0°C and 4°C. Designed to accept gastronorm pans up to 65mm deep, the unit ships complete with 8 x 1/2 GN 65mm pans and operates on R404A refrigerant. Supplied piped and foamed only, it is intended for connection to an external refrigeration unit rather than a self-contained motor.

Suited to cafes, delis, canteens, and busy service counters, the SFX24RD integrates toughened safety glass on the front for clear product visibility and rear roller doors for easy staff access. An overhead fluorescent light highlights displayed food, while removable cross bars, a safety lock ball valve drain, and a streamlined stainless steel interior make routine cleaning straightforward. With a 36-litre capacity across 8 half-size pans and a compact 45W power draw, this unit delivers effective cold food presentation with minimal running costs.

Key Benefits

• Cold plate and cross fin coil cooling acts from both top and bottom of the unit, ensuring consistent temperature distribution across all pans.
• Supplied with 8 x 1/2 GN 65mm pans, so the unit is ready to load and serve without additional pan purchases.
• Toughened safety glass front maximises food visibility and encourages customer purchases at the point of sale.
• Piped and foamed construction allows integration with a central or remote refrigeration system, ideal for venues already running a centralised coolant loop.
• Removable cross bars and a safety lock ball valve drain simplify daily cleaning and end-of-service washdown.
• Overhead fluorescent lighting enhances the presentation of displayed food, drawing customer attention in dimly lit service environments.
• Rear roller doors provide quick, unobstructed staff access for replenishing pans during service.
• Australian-made with 304 stainless steel construction, supporting durability and compliance with commercial hygiene standards.
• Low 45W power consumption keeps operating costs down while maintaining reliable refrigeration performance.

Key Features

• Cold plate and cross fin coil cooling system provides refrigeration from both the top and bottom of the unit.
• Piped and foamed only - no refrigeration motor supplied; designed to connect to an external refrigeration unit.
• Operates on environmentally friendly R404A refrigerant.
• Holds gastronorm pans up to 65mm deep; compatible with a variety of GN pan configurations.
• Includes 8 x 1/2 GN 65mm pans.
• 36-litre total capacity across 8 x 1/2 GN pan positions.
• Temperature range: 0°C to 4°C.

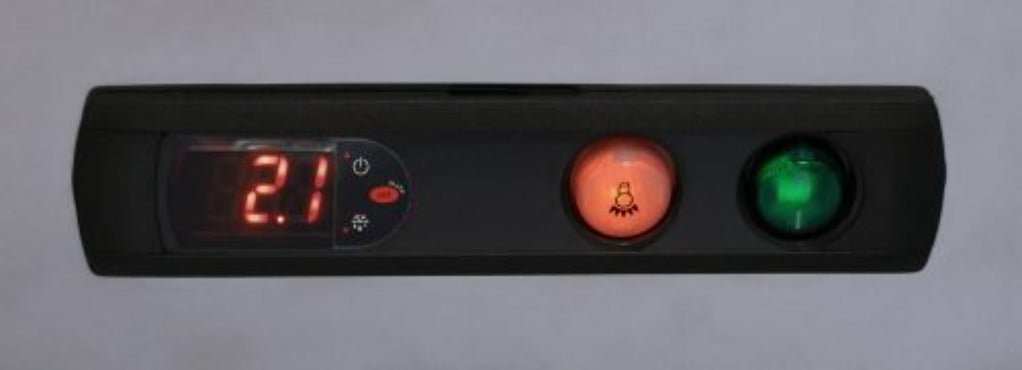

• Thermostat / energy regulator temperature control.
• Toughened safety glass front for clear food display and customer-facing visibility.
• Rear roller doors for convenient staff access.
• Overhead fluorescent light to illuminate displayed food.
• Safety lock ball valve drain for controlled, safe drainage during cleaning.
• Removable cross bars for flexible pan arrangement and easy cleaning access.
• 304 stainless steel construction throughout with a tubular frame.
• Streamlined design for straightforward cleaning and maintenance.
• 240V single phase power supply, 45W power rating.
• Dimensions: 1355mm (W) x 615mm (D) x 750mm (H); weight: 60kg.
• Australian made.

Specifications

• Width (mm): 1355
• Depth (mm): 615
• Height (mm): 750
• Weight (kg): 60
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Shipping Weight: 115
• Shipping Cubic: 1.439
• Capacity (Litres): 36lt
• GN Capacity: 8 x 1/2 GN
• Power Delivery: 45w
• Power Rating: 45w
• Power Supply: 240V Single Phase
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Door Type: Glass
• No. of Doors: 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Display Fridge
• Cooling Type: Static
• Fuel Type: Electric
• Control Type: Thermostat
• Temperature Control: Energy Regulator
• Display Type: Glass Display
