Overview

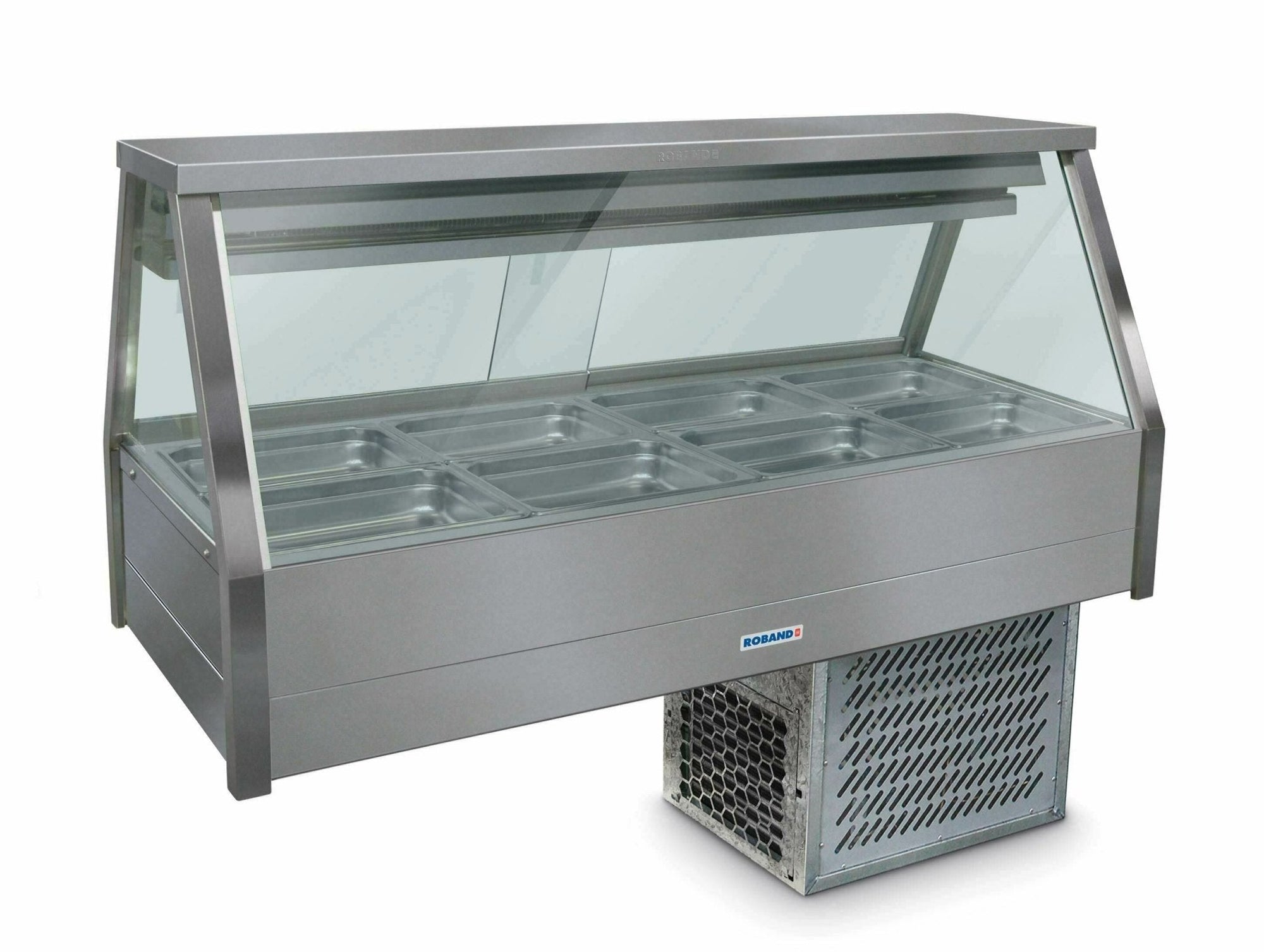

Roband ERX24RD Straight Glass Refrigerated Display Bar, 8 Pans

The Roband ERX24RD is an Australian-made straight glass refrigerated display bar engineered for commercial cafes, delis and service counters that need to hold and present cold food attractively prior to sale. It uses a dual cooling system combining a cold plate beneath the pans and a cross fin coil above, working together to maintain product temperatures between 0°C and 4°C across all 8 x 1/2 GN pan positions. The unit is designed to operate in a Climate Class 3 environment (up to 25°C ambient, 60% relative humidity), and all food placed in the bar must be prechilled to 5°C or below before loading.

Constructed entirely from 304 stainless steel with a tubular frame, the ERX24RD pairs seamlessly with the Roband 'E' series straight glass hot food display bars, allowing operators to combine hot and cold food presentations with a consistent, modern appearance across the service counter. It runs on environmentally friendly R404A refrigerant, draws just 625 W, and ships complete with 8 x 1/2 size 65 mm GN pans ready for immediate use.

Key Benefits

• Dual cold plate and cross fin coil cooling keeps food chilled from both below and above, reducing warm spots and maintaining safe holding temperatures across the full pan array.
• Toughened safety glass front maximises product visibility to customers, encouraging impulse purchases at the point of sale.
• Matching aesthetic with Roband 'E' series hot food bars lets operators combine hot and cold displays in a single, uniform service counter lineup.
• Quiet operation minimises noise in front-of-house and customer-facing environments.
• Adjustable digital thermostat with temperature readout gives staff precise, at-a-glance temperature monitoring and easy control.
• Rear roller doors allow quick, convenient access for staff during busy service periods without disrupting the customer-facing display.
• Removable cross bars and streamlined stainless steel surfaces simplify daily cleaning and sanitation.
• Australian-made construction with 304 stainless steel ensures durability and compliance with local commercial kitchen standards.
• Comes complete with 8 x 1/2 GN 65 mm pans, so the unit is ready to serve straight out of the box with no additional pan investment required.

Key Features

• Dual cooling system: cold plate (bottom) combined with cross fin coil (top) for consistent temperature maintenance across all pans.
• Accommodates a variety of Gastronorm pans up to 65 mm deep; 8 x 1/2 GN 65 mm pans included.
• 36-litre total GN capacity across 8 x 1/2 GN positions.
• Toughened safety glass straight front panel for maximum product visibility.
• Rear roller doors fitted as standard for easy staff access.

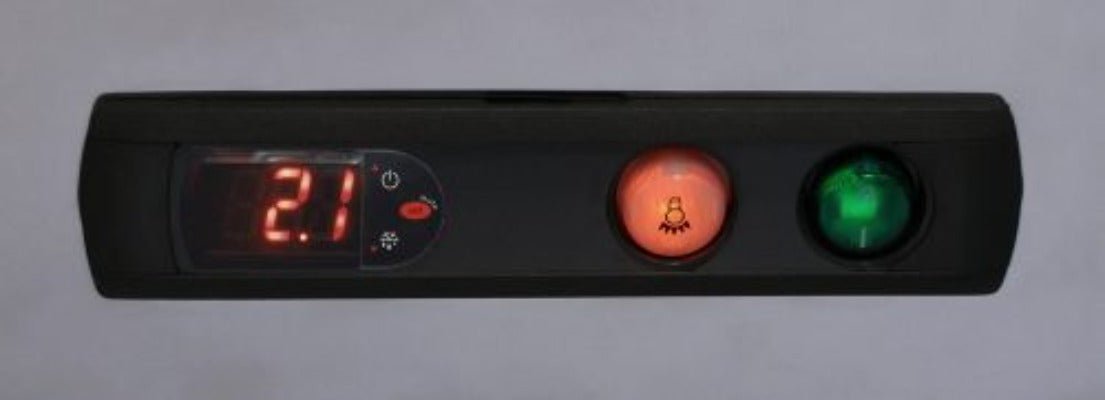

• Adjustable digital thermostat with temperature readout for precise cold holding control.
• Overhead fluorescent light to illuminate displayed product.
• Safety lock ball valve drain for controlled, secure drainage during cleaning.
• Removable cross bars for straightforward interior cleaning.
• All 304 stainless steel construction with tubular frame for strength and hygiene.
• Runs on environmentally friendly R404A refrigerant.
• Operates in Climate Class 3 conditions: up to 25°C ambient temperature and 60% relative humidity.
• Temperature range: 0°C to 4°C.
• Static cooling type with thermostat/energy regulator temperature control.
• Power consumption: 625 W rated; 730 W delivery; 2.7 A draw; 240 V single phase supply.
• Overall unit dimensions (excluding refrigeration motor cage): 1355 mm W x 615 mm D x 675 mm H; add 450 mm for motor cage height.
• Net weight: 60 kg.
• Designed and manufactured in Australia.
• 12-month parts and labour warranty.

Specifications

• Width (mm): 1355
• Depth (mm): 615
• Height (mm): 675
• Weight (kg): 60
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Shipping Weight: 137
• Shipping Cubic: 1.343
• Packed Width (mm): 1440.0
• Packed Height (mm): 1260.0
• Packed Depth (mm): 760.0
• Capacity (Litres): 36lt
• GN Capacity: 8 x 1/2 GN
• Power Delivery: 730w
• Power Rating: 625w
• Power Supply: 240V Single Phase
• Power (kW): 625
• Voltage/Phase: 230V Single Phase
• Warranty (months): 12 months
• Country of Origin: Australia
• Australian Made Logo: YES
• Material: 304 Stainless Steel
• Door Type: Glass
• No. of Doors: 2
• Temperature Range: 0°C to 4°C
• Refrigeration Type: Display Fridge
• Cooling Type: Static
• Fuel Type: Electric
• Control Type: Thermostat
• Temperature Control: Energy Regulator
• Display Type: Glass Display
