Overview

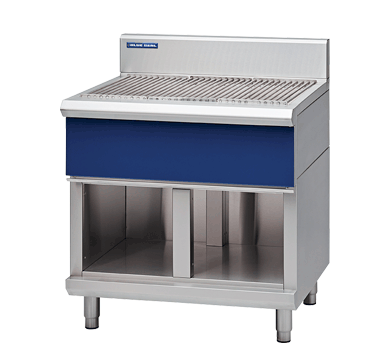

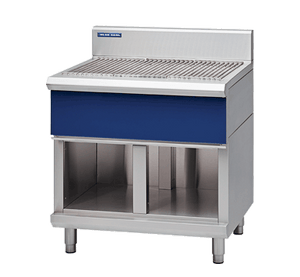

Blue Seal SF90-CB Evolution Series 900mm Solid Fuel Grill with Cabinet Base

The Blue Seal SF90-CB is a 900mm solid fuel grill from the Evolution Series, built in New Zealand from 304 stainless steel for demanding commercial kitchens. Its heavy-duty fire box is lined with 50mm thick refractory brick and features a double-skin 0.9mm stainless steel interior and exterior, delivering intense radiant heat and authentic live-fire flavour ideal for steaks, burgers, seafood, skewers, and premium grilled menu items.

Fully modular in design, the SF90-CB integrates seamlessly into a complete Blue Seal Evolution Series kitchen suite and sits on a robust enclosed cabinet base that provides practical underbench storage for charcoal, cookware, and kitchen essentials. The open fire box configuration makes cleaning straightforward, while heavy-duty stainless steel rod grates and an optional GN 1/1 four-position racking kit give operators flexible, high-volume cooking capability across service.

Key Benefits

• Authentic live-fire cooking results from intense radiant heat, producing genuine chargrill flavour and branding prized in restaurants, steakhouses, and hotels.
• Refractory brick-lined fire box retains heat efficiently, maintaining consistent high temperatures throughout busy service periods.
• Fully modular construction in three width options allows the unit to match and expand with other Evolution Series equipment for a cohesive suite finish.
• Enclosed cabinet base provides valuable underbench storage for charcoal, trays, utensils, and cookware, improving kitchen organisation and workflow.
• Open fire box design simplifies ash removal and routine cleaning, reducing downtime between services.
• Heavy-duty stainless steel rod grates withstand sustained high-heat use in heavy commercial environments.
• Adjustable feet on 63mm diameter, 1.2mm stainless steel legs allow the unit to be levelled precisely on uneven kitchen floors.
• Optional GN 1/1 four-position racking kit (compatible with 600mm and 900mm models) expands cooking flexibility for larger production requirements.
• 304 stainless steel construction throughout supports hygiene and long-term durability in high-traffic commercial kitchens.

Key Features

• 900mm solid fuel grill, available in three modular width models
• Heavy-duty fire box with 50mm thick refractory brick lining for superior heat retention
• Double-skin construction with 0.9mm stainless steel interior and exterior panels
• Heavy-duty stainless steel rod grates
• Open fire box design for easy cleaning and ash removal
• Fully enclosed stainless steel cabinet base with single hinged door for underbench storage
• Stainless steel splashback included
• Fully modular for seamless integration into a matched Evolution Series suite
• Optional GN 1/1 four-position racking kit available for 600mm and 900mm models
• 63mm diameter heavy-duty 1.2mm stainless steel legs with adjustable feet
• Freestanding, free-standing installation
• 304 stainless steel exterior finish
• Manufactured in New Zealand
• 12-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Gas
• Installation Type: Freestanding
• Control Type: Thermostat
• Mounting Type: Freestanding
• Fuel Type: Solid Fuel
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 480
• Power Rating: 304 Stainless Steel
