Overview

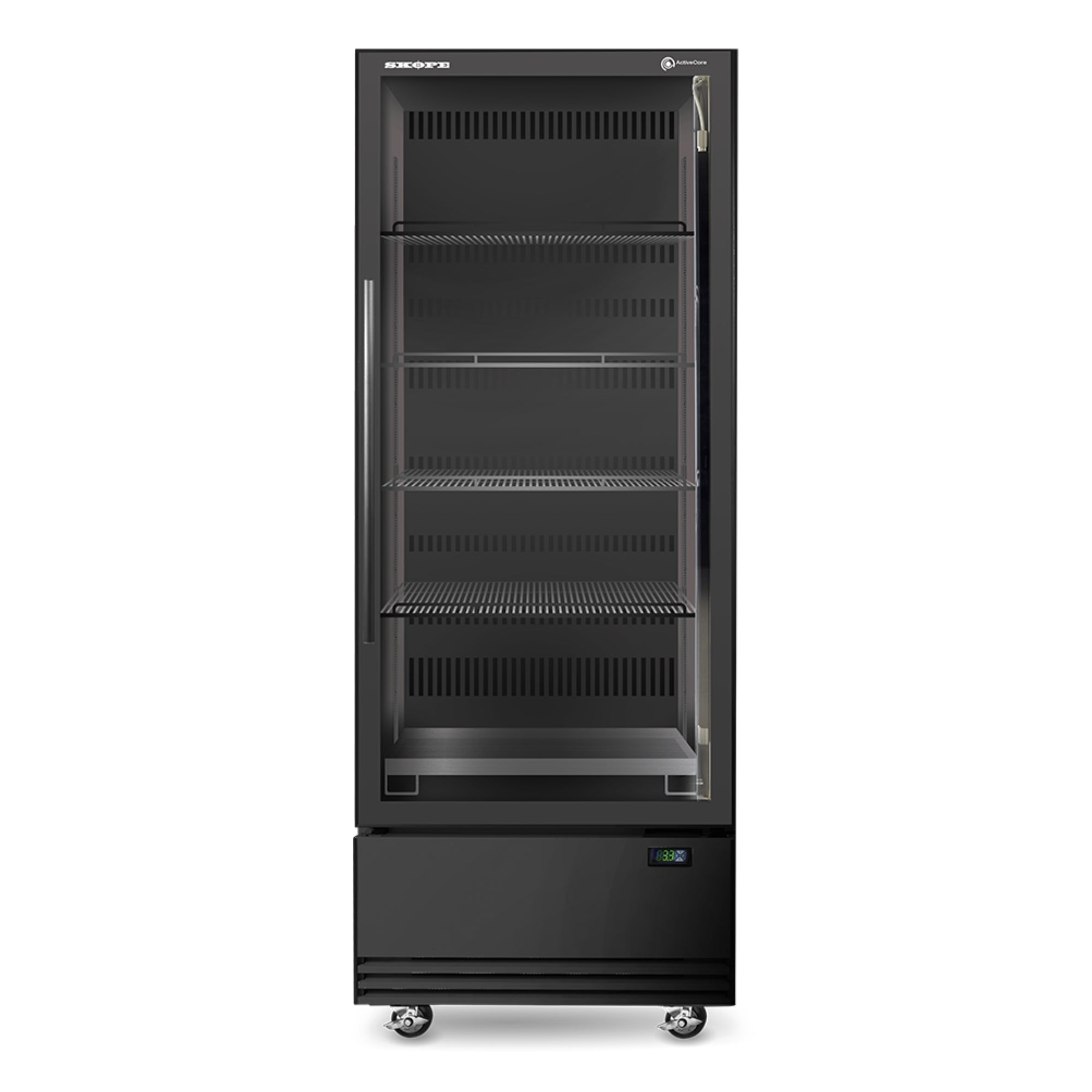

Skope SKB600N-A 1 Glass Door Display or Storage Fridge

The Skope SKB600N-A is a 584-litre single glass door display and storage fridge built on the ActiveCore 2 platform, offering a bottom-mounted, removable refrigeration unit for streamlined servicing and minimal business downtime. Designed for demanding commercial environments, it operates across a wide ambient range up to 40°C and runs on R290 natural refrigerant with a 99g charge, delivering strong environmental credentials alongside low running costs.

This fridge suits a broad range of venues including restaurants, cafes, bars, convenience stores, quick service restaurants, schools, medical facilities and accommodation providers. The SCS Connect controller with built-in SKOPE-connect compatibility and Bluetooth wireless technology enables app-based fridge management from a smartphone, allowing operators to monitor and adjust settings remotely to reduce waste and maximise return on investment.

Key Benefits

• Glass door display showcases chilled product clearly to customers, encouraging impulse purchases and driving sales.
• SKOPE-connect app and Bluetooth connectivity allow remote monitoring and temperature adjustment, reducing product waste and improving stock management.
• ActiveCore interchangeable refrigeration unit can be removed and replaced without specialist tools, cutting repair time and minimising disruption to trading.
• R290 natural refrigerant with a minimal 99g charge delivers market-leading environmental performance with virtually no global warming impact.
• Bottom-mounted refrigeration system keeps the compressor accessible for easy cleaning and maintenance while freeing up the full cabinet interior for product display.
• 45 product facings for 600ml PET bottles maximise shelf utilisation and reduce the frequency of restocking runs.
• Broad range of aesthetic options including exterior and interior colour combinations and door types allows the unit to complement any fitout or brand environment.
• GEMS Class 3M1 rating and low power draw of 0.7 kW help keep energy costs down in high-use commercial settings.
• Climate Class 4 tropical rating ensures reliable performance in hot, humid kitchens and service environments without loss of temperature control.

Key Features

• 584-litre gross capacity single glass door display and storage fridge.
• Bottom-mounted ActiveCore 2 integral refrigeration unit, model UBHCNI-0008, is fully removable for safe and streamlined servicing.
• Temperature range of 1°C to 4°C standard; adjustable from 1°C to 15°C via SKOPE-connect app.
• SCS Connect controller with SKOPE-connect compatibility and Bluetooth wireless technology for app-based management.
• R290 natural refrigerant, 99g charge, with minimal environmental impact.
• Automatic defrost system.
• Fan-assisted cooling for even temperature distribution throughout the cabinet.
• Interior lighting: 1 x 1370mm, 15W LED strip.
• 5 shelves total (4 adjustable shelves in the cabinet).
• Total display area of 0.70m²; floor footprint of 0.63m².
• Accommodates 45 facings of 600ml PET bottles per shelf load.
• Exterior available in powdercoat galvanised steel or stainless steel; interior in stainless steel.
• Body material: powdercoat galvanised steel or stainless steel exterior with stainless steel interior.
• Door options include glass, solid, and heated glass (to prevent condensation in hot environments), as well as Gen-3 series styling.
• Colour combinations available: White/White, Black/Black, Black/White, and Stainless Steel.
• Optional stainless steel shelves and shelf lighting available for a premium presentation.
• Option for remote refrigeration unit configuration to maximise usable floor space.
• Self-contained refrigeration system.
• Maximum ambient operating temperature: 40°C.
• Climate Class 4 (Tropical) rating.
• GEMS Class 3M1 compliant; GEMS energy consumption 2.21 kWh/24h; GEMS annual running cost approximately $242 p.a. at $0.30/kWh.
• MEPS Category M1; TEC 2.17 kWh/24h at Climate Class 3; MEPS efficiency 3.09 kWh/24h/m² at Climate Class 3.
• Electrical power: 0.70 kW; current draw: 2.9A (includes unit draw of 2.6A).
• Power supply: 220–240V AC, 50Hz, single phase.
• Supplied with 2.0m cord and 10A three-pin plug.
• Dimensions: 740mm W x 795mm D x 2005mm H.
• Weight: 185kg.
• 5-year parts and labour warranty.
• Made in New Zealand.
• Suited to restaurants, cafes, clubs, pubs, bars, quick service restaurants, convenience and petrol outlets, supermarkets, hospitality venues, accommodation, schools, and medical and aged care facilities.

Specifications

• Width (mm): 740
• Depth (mm): 795
• Height (mm): 2005
• Weight (kg): 185
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 195
• Packed Width (mm): 800.0
• Packed Height (mm): 2100.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.512000000m3
• Capacity (Litres): 584
• Power (kW): 0.7
• Amps (A): 2.9
• Power Cord: Supplied with 2.0m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 1°C to 15°C)
• Refrigerant: R290 / 99g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Glass / Solid
• Shelf Configuration: 5
• Body Material: Powdercoat galvanised steel or stainless steel interior & exterior
• Material: 304 Stainless Steel
• No. of Doors: 1
• No. of Shelves: 4
• GEMS Class: 3M1
• GEMS Energy Consumption: 1.6
• GEMS Annual Running Cost: $175 p.a. (@ $0.30/kWh)
• Warranty (months): 5 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 1 x 1370mm, 15W LED
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
