Overview

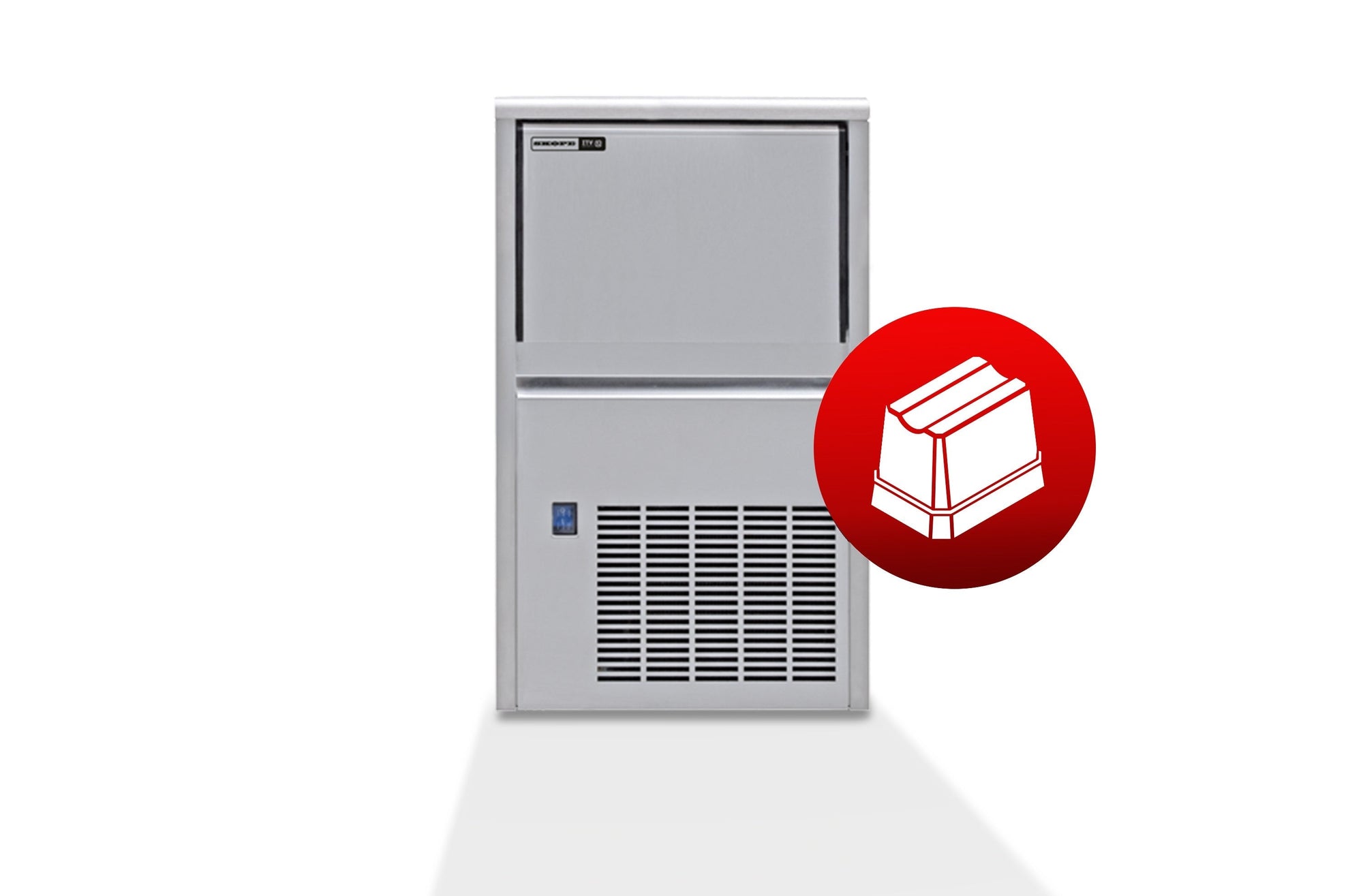

Skope ALFA NDP20 A Self-Contained Ice Cube Maker R290

The Skope ALFA NDP20 A is a compact, self-contained ice cube maker designed for small bars, cafes and hospitality venues where counter space is at a premium. Producing 23 kg of crystal-clear ALFA ice cubes every 24 hours, it runs on R290 hydrocarbon natural refrigerant for improved energy efficiency and minimal environmental impact, all within a footprint of just 0.17 m².

Built on ITV technology with an AISI 304 stainless steel body, the NDP20 A combines a robust folding door, front-breathing ventilation for built-in installation, and an insulated polyurethane foam storage bin. Patented flexible spray rubber nozzles and a dynamic water-circulation freezing process work together to produce consistently pure, gas-free ice cubes with very low noise output.

Key Benefits

• Consistent 23 kg per 24-hour ice output keeps small bars and cafes continuously stocked during service periods.
• R290 natural refrigerant delivers higher energy efficiency and near-zero global warming potential compared to conventional refrigerants.
• Front-breathing ventilation allows the unit to be installed in tight or enclosed spaces, maximising bench and under-counter flexibility.
• Dynamic water-circulation freezing forms ice gradually in thin layers, eliminating trapped gases and producing crystal-clear cubes ideal for premium beverages.
• ITV patented flexible spray rubber nozzles actively reduce limescale buildup, lowering maintenance frequency and extending component life.
• Polyurethane foam-insulated storage bin maintains ice quality with lower heat transmission, reducing unnecessary re-freezing cycles.
• Silent rain system minimises friction across all water-contact parts, keeping operational noise to just 57 dB for quieter venue environments.
• Easy access to top operational switches and serviceable components without full machine disassembly reduces downtime during maintenance.
• Compact 350 mm wide stainless steel body fits neatly into small service areas while meeting commercial durability requirements.

Key Features

• Ice production capacity: 23 kg per 24 hours.
• Ice storage capacity: 6 kg.
• Ice cube dimensions: 36 mm (W) x 26 mm (D) x 23 mm (H).
• Self-contained refrigeration unit -- no remote condenser required.
• R290 hydrocarbon natural refrigerant for low environmental impact and high energy efficiency.
• AISI 304 stainless steel body construction for commercial-grade durability and hygiene.
• ITV patented flexible spray rubber nozzles to minimise limescale accumulation.
• Dynamic water-circulation freezing process produces clear, gas-free ice cubes.
• Insulated storage bin with polyurethane foam for superior rigidity and reduced heat transmission.
• Front-breathing ventilation system enables built-in or enclosed installation.
• Robust folding door designed for long service life.
• Silent rain system across all water-contact components for low-noise operation (57 dB).
• Electronic controller with easy-access top-mounted operational switches.
• Operating temperature range: 10°C to 43°C.
• Power supply: 230 V AC, 50 Hz, single phase.
• Power consumption: 0.27 kW; current draw: 1.41 A.
• Total floor area: 0.17 m².
• Unit weight: 32 kg.
• Installation requires a suitable water filter to ensure correct operation and maintain warranty compliance.
• 2-year warranty backed by Skope's commercial refrigeration support network.

Specifications

• Width (mm): 350
• Depth (mm): 475
• Height (mm): 593
• Weight (kg): 32
• Power (kW): 0.27
• Amps (A): 1.41
• Power Supply: 230 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Temperature Range: 10°C to 43°C
• Refrigerant: R290 (natural refrigerant)
• Door Type: Solid
• Body Material: AISI 304 stainless steel body
• Noise (dB): 57
• Control Type: Electronic control
• Warranty (months): 2 Year
