Overview

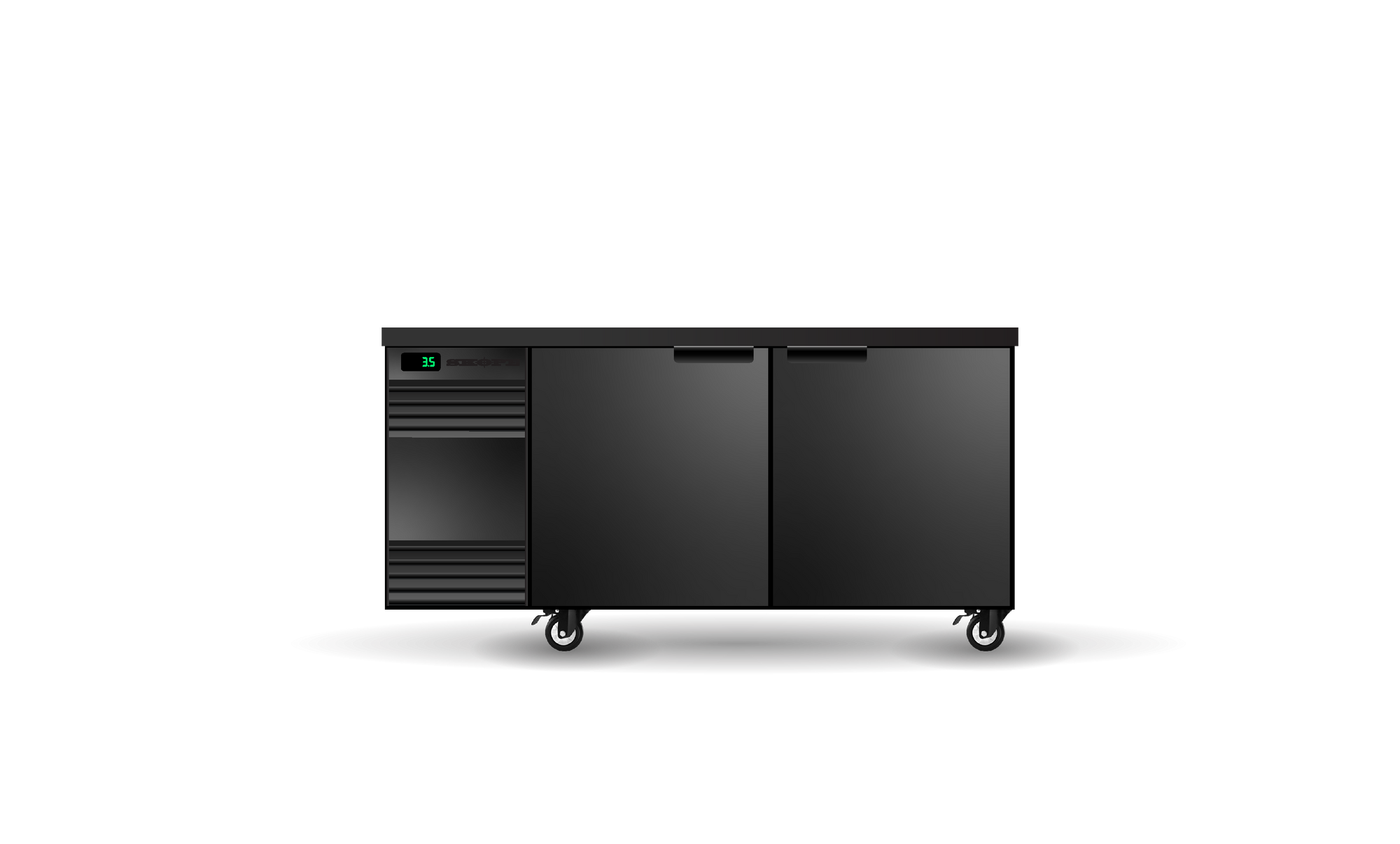

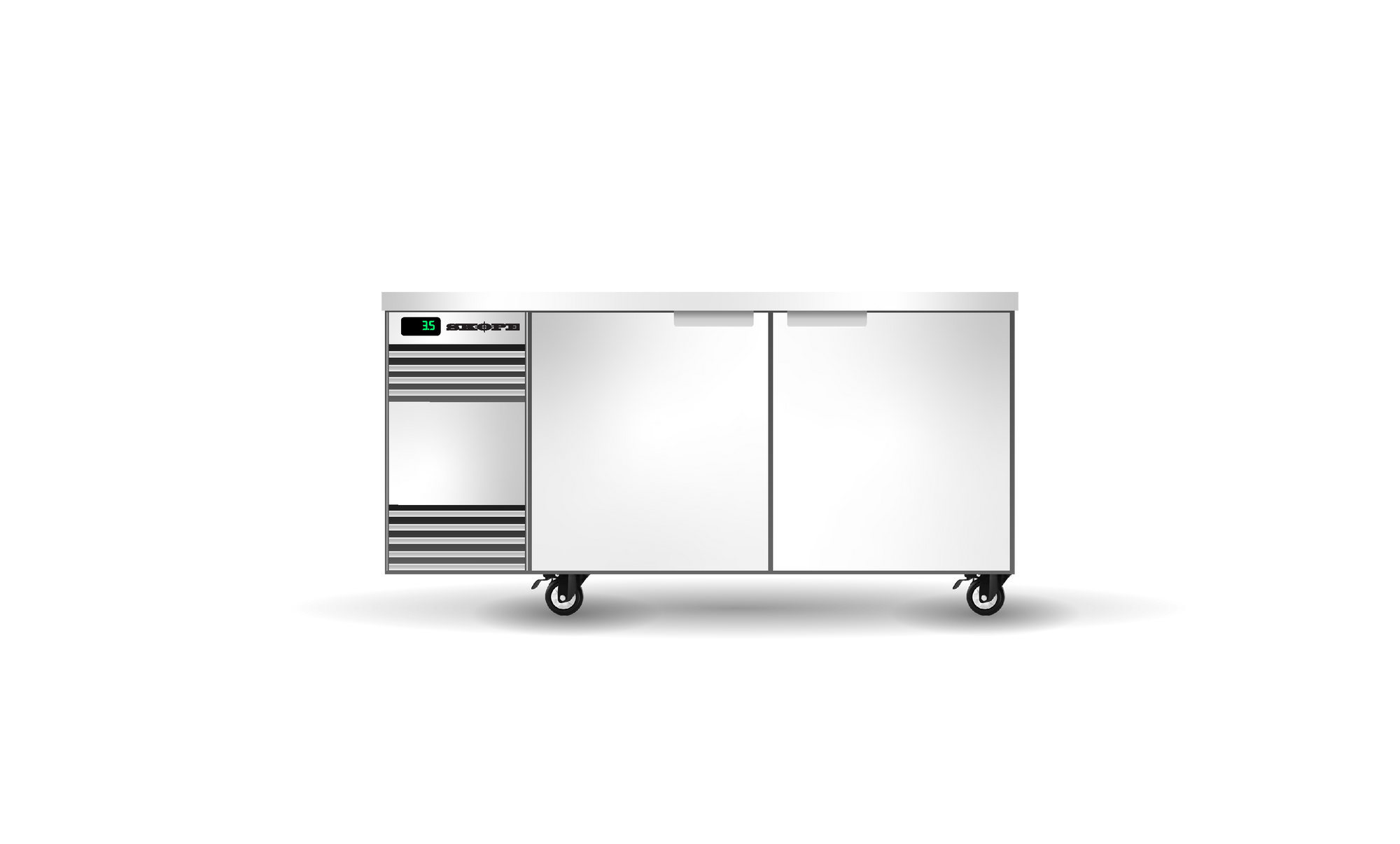

Skope CounterLine CL.2.SSW Two-Door Solid Swing Door BackBar Fridge

The Skope CL.2.SSW is a low-profile under-bar refrigerator designed for high-demand hospitality environments including restaurants, cafes, clubs, pubs and quick service venues. Built to counter height with a 345-litre capacity, the unit sits flush beneath a standard bar top — available as an optional separate accessory — and keeps beverages cold right at the point of service. It is powered by eco-friendly R290 natural refrigerant and rated for tropical climates up to 40°C ambient, making it well suited to warm or poorly ventilated back-bar settings.

Control is handled through the SCS Connect controller with full SKOPE-connect compatibility, giving operators remote access to temperature settings, dimmable LED lighting and hush mode for quieter operation. The cabinet's fully front-breathing interchangeable modular cartridge means servicing can be carried out on-site without relocating the unit, while the self-closing lockable doors and automatic defrost system help maintain consistent temperatures throughout even the busiest service periods.

Key Benefits

• Beverages stay chilled exactly where they are needed, cutting staff travel time and accelerating service at peak periods.
• Counter-height design allows the unit to slide directly under the bar, preserving floor space and keeping the bar area visually uncluttered.
• Versatile shelf configuration supports one row of 750ml wine or Riesling bottles per door, or two rows of 355ml beer bottles, or two rows of 600ml PET bottles, or four rows of standard beer cans — giving operators flexible storage for a variety of bottle and can sizes.
• R290 natural refrigerant technology cuts energy consumption by up to 63% compared to conventional refrigerants, with potential annual power savings of up to $750.
• SKOPE-connect integration allows remote temperature adjustment across the full 0°C to 15°C range, LED dimming control and activation of hush mode, which brings operational noise from below 66 dB down to below 62 dB.
• Each swing door features a self-closing mechanism and integrated locking tabs, protecting stock, maintaining cabinet temperature and preventing energy losses from doors left ajar.
• The front-breathing interchangeable modular cartridge allows technicians to service the refrigeration system quickly and safely in place, reducing downtime for the operator.
• Fan-assisted cooling combined with automatic defrost maintains even temperatures throughout the cabinet during continuous service.
• Climate Class 4 (Tropical) certification confirms dependable performance at ambient temperatures up to 40°C, including in warm or restricted-airflow installations.

Key Features

• Two solid swing doors, each with a self-closing mechanism and built-in locking tab.
• 345-litre gross capacity across the two-door cabinet footprint.
• Four adjustable-height powder-coated wire shelves; four outer shelves each measuring 547W × 530L mm.
• Interior body available in powdercoat galvanised steel or stainless steel; exterior finished in 304 stainless steel.
• R290 natural refrigerant with an 81g charge for high-efficiency, environmentally responsible operation.
• Self-contained, fan-assisted refrigeration system with automatic defrost.
• Standard operating temperature range of 1°C to 4°C; remotely adjustable from 0°C to 15°C via SKOPE-connect.
• Maximum ambient operating temperature of 40°C; Climate Class 4 (Tropical) rated.
• SCS Connect controller with SKOPE-connect compatibility for remote monitoring, temperature adjustment and feature control.
• Single ceiling-mounted LED strip rated at 16W, producing cool white light in the 5500–6500K colour temperature range, with brightness adjustable through SKOPE-connect.
• Hush mode accessible via SKOPE-connect reduces operational noise to under 62 dB; standard operating noise is under 66 dB.
• GEMS Class 3M1 energy rating.
• Fully front-breathing interchangeable modular cartridge for easier on-site servicing without moving the unit.
• Height-adjustable on castors from 820 mm to 835 mm; 725 mm with plinth mount; standard height 833 mm.
• Total floor area of 1.07 m².
• 1.9m power cord with a 3-pin, 10-amp plug; operates on a 220–240V AC, 50Hz single-phase supply.
• Benchtop not included; compatible optional benchtop available as a separate accessory.
• Intended for use in restaurants, cafes, clubs, pubs, bars and quick service restaurant environments.

Specifications

• Width (mm): 1585
• Depth (mm): 680
• Height (mm): 830
• Weight (kg): 168
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 345
• No. of Doors: 2
• Door Type: Solid
• Shelf Configuration: Four adjustable height, powder-coated wire shelves, 4 × outer shelf (547W × 530L)
• Body Material: Powdercoat galvanised steel or stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 4
• Power (kW): 0.62
• Amps (A): 2.6
• Power Cord: 1.9m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 0°C to 15°C)
• Refrigerant: R290 / 81g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ​Standard <66 Hush Mode (via SKOPE-connect) <62​
• Interior Lighting: 1 × 16W, cool white (5500-6500K) LED strip on cabinet ceiling
• Control Type: SCS Connect (SKOPE-connect™ compatible)
• GEMS Class: 3M1
• GEMS Energy Consumption: 1.57
• GEMS Annual Running Cost: $172 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
