Overview

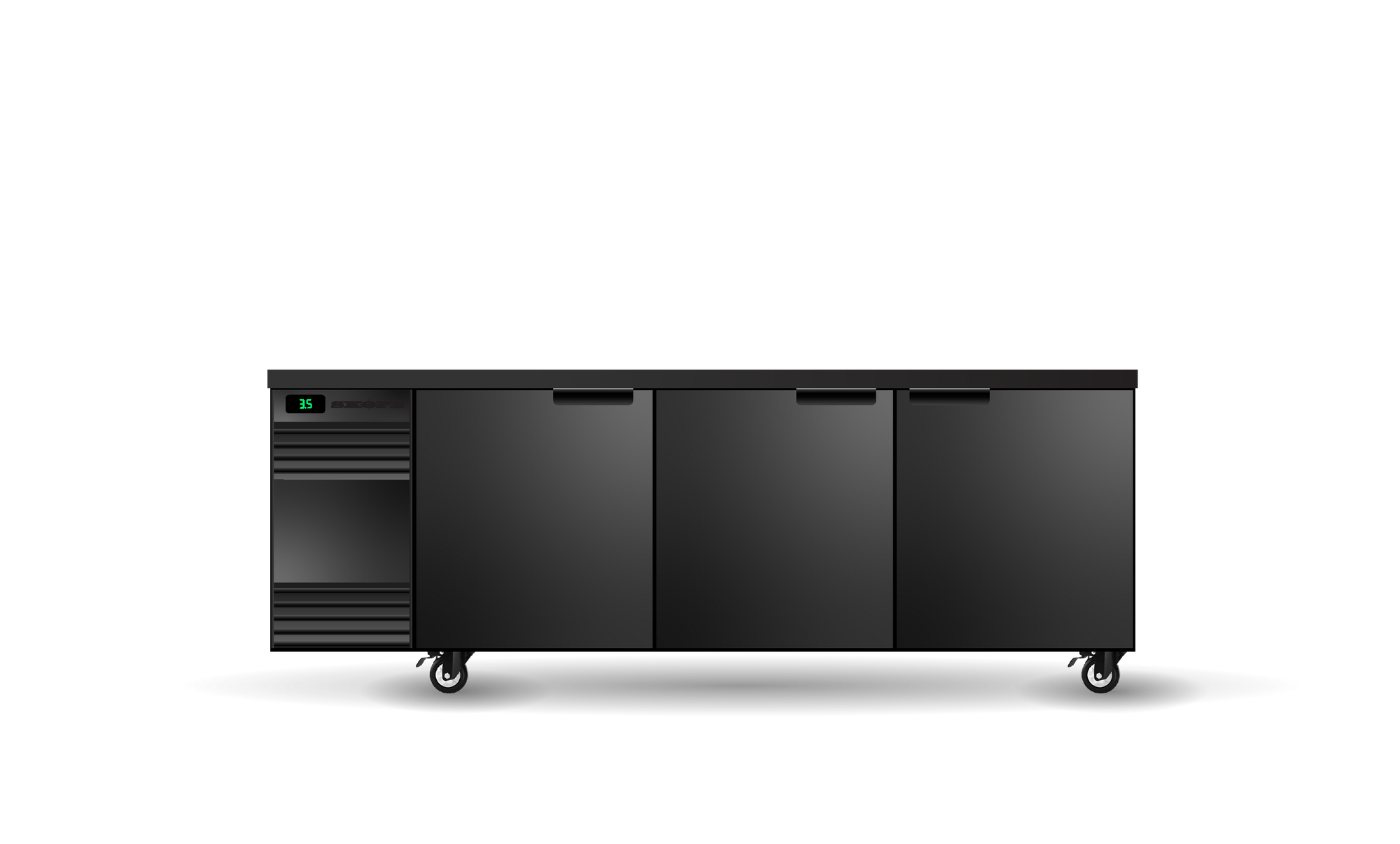

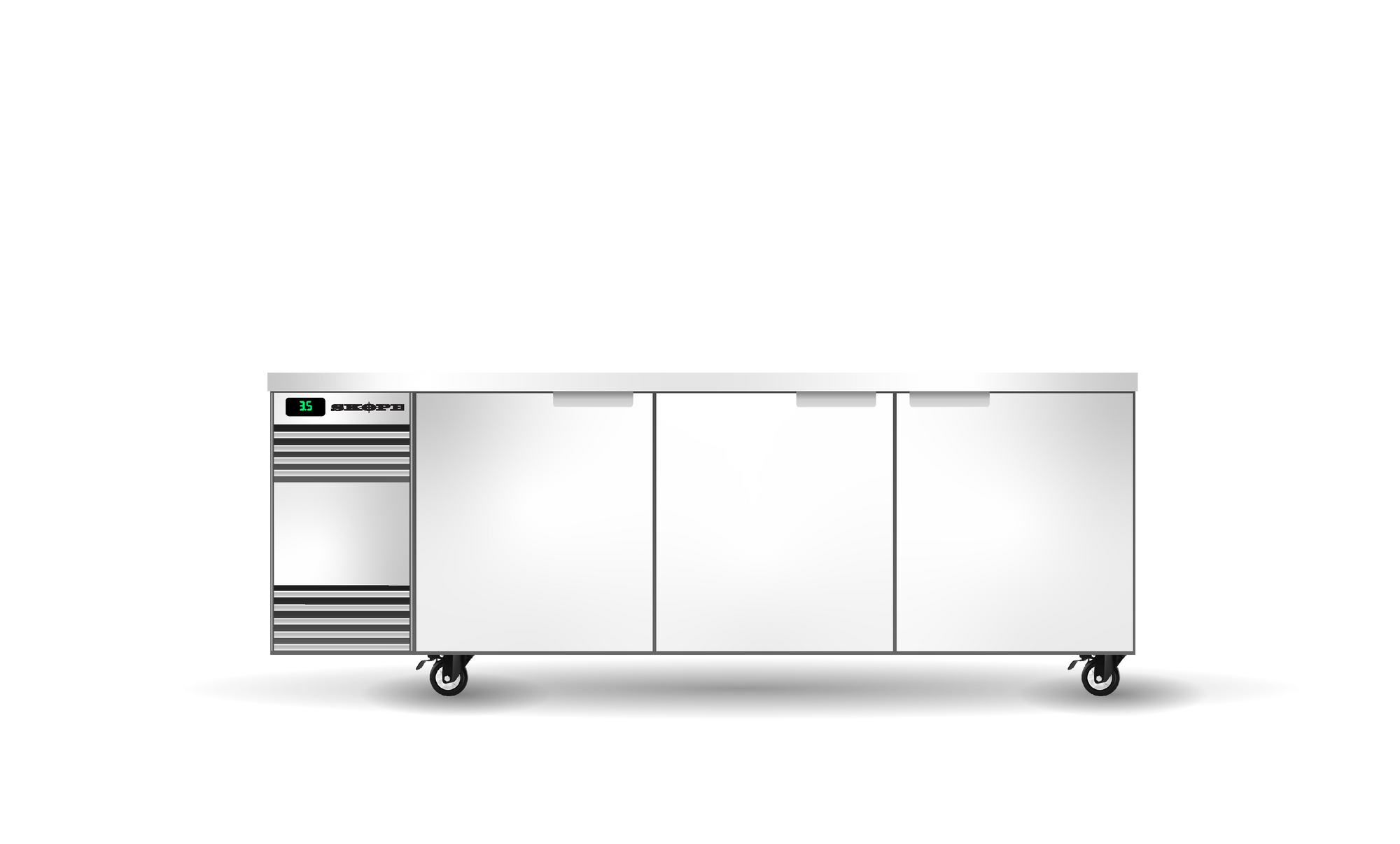

Skope SL.3.SSW BackBar 3 Solid Swing Door SlimLine Fridge

The Skope SL.3.SSW is a narrow-depth, three solid swing door bar fridge purpose-built for tight bar and backbar spaces in restaurants, cafes, clubs, pubs and quick-service restaurants. Its slim 590 mm depth keeps valuable floor space free while the 448-litre capacity and six adjustable powder-coated wire shelves accommodate a strong product load, including one row of standard 750 ml wine or Riesling bottles, two rows of 355 ml beer bottles, two rows of 600 ml PET bottles, or four rows of standard beer cans per door.

Running on eco-friendly R290 natural refrigerant and rated Climate Class 4 (Tropical) for ambient temperatures up to 40°C, the SL.3.SSW delivers reliable performance across demanding hospitality environments. SKOPE-connect compatibility provides remote temperature management from 0°C to 15°C, a built-in hush mode for quieter evening service, and dimmable LED lighting, making it a technologically advanced and energy-efficient choice for commercial operators.

Key Benefits

• Slim 590 mm depth fits tight backbar and under-bar installations without sacrificing significant storage capacity.
• R290 natural refrigerant technology delivers up to 63% reduction in energy consumption compared to older refrigerants, reducing running costs substantially.
• SKOPE-connect smart control allows remote temperature adjustment, scheduling, and monitoring from a connected device.
• Built-in hush mode via SKOPE-connect reduces operating noise below 62 dB, ideal for quieter evening service periods.
• Self-closing swing doors with integrated locking tabs on every door protect stock and maintain temperature during busy service.
• Dimmable full-height LED strip lighting enhances product presentation and can be adjusted to suit the ambience of any venue.
• Fully front-breathing interchangeable modular cartridge design enables quicker and safer servicing without moving the unit.
• Climate Class 4 (Tropical) rating ensures consistent performance in warm and humid kitchen or bar environments up to 40°C.
• Automatic defrost and fan-assisted cooling maintain fast temperature recovery to keep up with high-volume service demands.

Key Features

• Three solid swing doors with self-closing mechanism and built-in locking tabs on each door.
• Six adjustable-height, powder-coated wire shelves: four outer shelves (547 W x 440 L mm) and two inner shelves (605 W x 440 L mm).
• Shelf configurations support 750 ml wine/Riesling bottles (1 row), 355 ml beer bottles (2 rows), 600 ml PET bottles (2 rows), or standard beer cans (4 rows) per door.
• 448-litre gross capacity.
• Narrow 590 mm depth designed specifically for space-restricted bar and backbar environments.
• Body constructed from powdercoat galvanised steel or stainless steel; exterior finish in 304 stainless steel.
• R290 natural refrigerant (81 g charge) for environmentally responsible operation.
• Climate Class 4 (Tropical) rated for maximum ambient temperature of 40°C.
• Operating temperature range of 1°C to 4°C, adjustable from 0°C to 15°C via SKOPE-connect.
• Self-contained refrigeration system with fan-assisted cooling.
• Automatic defrost for low-maintenance operation.
• SCS Connect controller with full SKOPE-connect compatibility for remote monitoring and management.
• Single dimmable cool-white (5500–6500 K) LED strip light on the cabinet ceiling, running at 24 W.
• Standard operating noise below 66 dB; hush mode (via SKOPE-connect) below 62 dB.
• Power supply: 220–240 V AC, 50 Hz, single-phase; 0.62 kW; 2.6 A current draw.
• 1.9 m power cord with 3-pin 10 A plug.
• GEMS Class 5M1 energy rating with annual energy consumption of 2.17 kWh/24 h.
• Fully front-breathing interchangeable modular cartridge for faster, safer servicing without repositioning the unit.
• Benchtop not included; optional benchtop available separately.
• Best suited to restaurants, cafes, clubs, pubs, bars, and quick-service restaurants.

Specifications

• Width (mm): 2195
• Depth (mm): 590
• Height (mm): 830
• Weight (kg): 207
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 448
• No. of Doors: 3
• Door Type: Solid
• Shelf Configuration: Six adjustable height, powder-coated wire shelves, 4 × outer shelf (547W × 440L), 2 × inner shelf (605W × 440L)
• Body Material: Powdercoat galvanised steel or stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 3
• Power (kW): 0.62
• Amps (A): 2.6
• Power Cord: 1.9m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 0°C to 15°C)
• Refrigerant: R290 / 81g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ​​Standard <66 Hush Mode (via SKOPE-connect) <62​
• Interior Lighting: 1 × 24W, cool white (5500-6500K) LED strip on cabinet ceiling
• Control Type: SCS Connect (SKOPE-connect™ compatible)
• GEMS Class: 5M1
• GEMS Energy Consumption: 2.17
• GEMS Annual Running Cost: $238 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
