Overview

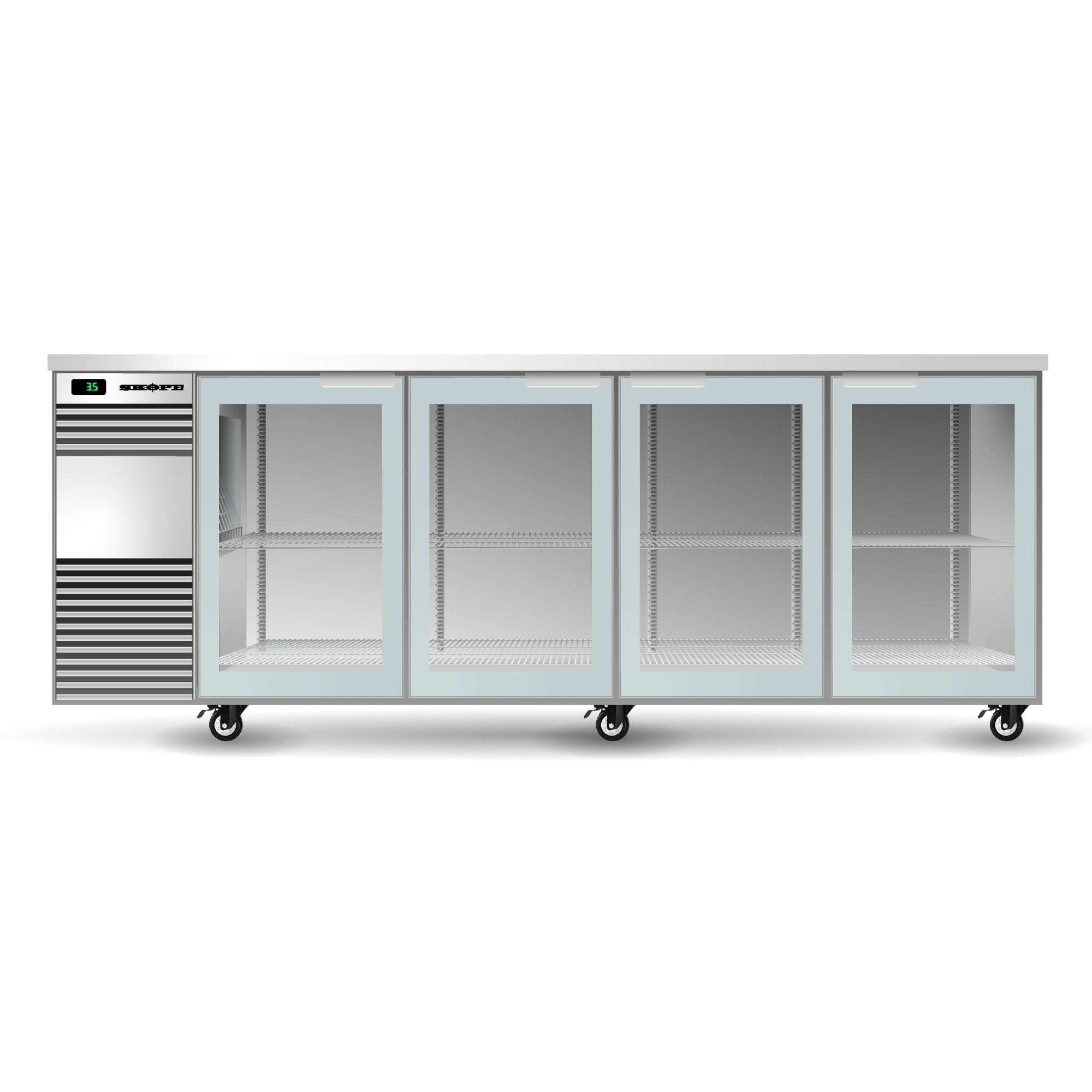

Skope BB.4.GSW BackBar 4 Glass Swing Door Fridge – 860L Self-Contained Undercounter Bar Chiller

The Skope BB.4.GSW is a premium four-glass swing door backbar fridge purpose-built for high-volume hospitality environments including restaurants, cafes, clubs, pubs and quick service restaurants. With an 860-litre gross capacity, it holds up to two rows of Riesling bottles or three rows of lager bottles per door section, keeping drinks at the point of service and ready for fast-paced trade. The unit is self-contained and front-breathing, finished in 304 stainless steel, and designed to sit comfortably under or behind the bar.

Built around eco-friendly R290 natural refrigerant technology, the BB.4.GSW delivers market-leading energy efficiency with up to 63% reduction in energy consumption compared to conventional units, saving up to $750 per year on power costs. SKOPE-connect integration allows digital temperature adjustment between 0°C and 15°C and enables hush mode for quieter operation in noise-sensitive settings. A fully interchangeable modular refrigeration cartridge simplifies servicing, while self-closing swing doors with built-in locking tabs on every door add security and operational convenience.

Key Benefits

• Drinks remain cold and accessible directly at the point of service, reducing wait times and improving bar workflow during busy periods.
• Up to 63% energy savings over conventional refrigeration units, potentially reducing power costs by up to $750 per year.
• Hush mode via SKOPE-connect lowers operating noise from under 66 dB to under 62 dB, making it suitable for quieter dining or lounge environments.
• Self-closing swing doors with integrated locking tabs on every door maintain temperature integrity and improve security.
• Dimmable full-height LED strip lighting enhances bottle and can presentation, encouraging purchase without generating excess heat.
• Tropical-rated for ambient temperatures up to 40°C, ensuring reliable performance even in hot commercial kitchen or bar environments.
• Front-breathing interchangeable modular cartridge design means faster, safer servicing without moving the unit or disrupting bar operations.
• SKOPE-connect app expands the adjustable temperature range to 0°C–15°C, giving operators flexibility to chill a wider variety of beverages.
• Eight adjustable-height powder-coated wire shelves allow the interior to be reconfigured quickly to suit different bottle sizes or stock arrangements.

Key Features

• 860-litre gross capacity across four glass swing door sections.
• Self-contained refrigeration system with front-breathing, fully interchangeable modular cartridge for simplified servicing.
• R290 natural refrigerant (81g charge) – low global warming potential, eco-friendly technology.
• GEMS rated energy consumption of 4.48 kWh/24h.
• Temperature range of 1°C to 4°C standard; adjustable 0°C to 15°C via SKOPE-connect.
• Maximum ambient operating temperature of 40°C; Climate Class 4 (Tropical).
• Fan-assisted cooling for even temperature distribution throughout the cabinet.
• Automatic defrost cycle.
• Single dimmable, cool white (5500–6500K) LED strip light mounted on the cabinet ceiling.
• Built-in hush mode accessible via SKOPE-connect; standard noise level under 66 dB, hush mode under 62 dB.
• Self-closing swing doors with built-in locking tabs on every door.
• Eight adjustable-height, powder-coated wire shelves: four outer shelves (497W x 440L mm) and four inner shelves (555W x 440L mm); two adjustable shelves per door.
• Exterior and interior body in 304 stainless steel; body construction of powdercoat galvanised steel or stainless steel.
• Height adjustable on castors from 1015 mm to 1030 mm; plinth mount option at 920 mm height; 2600 mm wide x 590 mm deep.
• Power: 0.96 kW, 4 amps, 220–240 V AC, 50 Hz, single-phase supply.
• 1.9 m power cord with 3-pin, 10-amp plug.
• Benchtop not included; available as an optional separate accessory.
• Fits two rows of Riesling bottles or three rows of lager bottles per door section.
• Suitable for restaurants and cafes, clubs, pubs and bars, and quick service restaurants.
• 3-year warranty.

Specifications

• Width (mm): 2605
• Depth (mm): 590
• Height (mm): 1025
• Weight (kg): 278
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 200
• Packed Width (mm): 2400.0
• Packed Height (mm): 1000
• Packed Depth (mm): 600.0
• Shipping Cubic: 1.440000000m3
• Capacity (Litres): 860
• No. of Doors: 4
• Door Type: Glass - Swing
• Shelf Configuration: Eight adjustable height, powder-coated wire shelves, 4 × outer shelf (497W × 440L), 4 × inner shelf (555W × 440L)
• Body Material: Powdercoat galvanised steel or stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 8
• Power (kW): 0.96
• Amps (A): 4
• Power Cord: 1.9m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 0°C to 15°C)
• Refrigerant: R290 / 81g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ​Standard <66 Hush Mode (via SKOPE-connect) <62
• Interior Lighting: Single dimmable, cool white (5500-6500K) LED strip on cabinet ceiling
• Control Type: SCS Connect (SKOPE-connect™ compatible)
• GEMS Class: 3M1
• GEMS Energy Consumption: 4.48
• GEMS Annual Running Cost: $490.56 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
