Overview

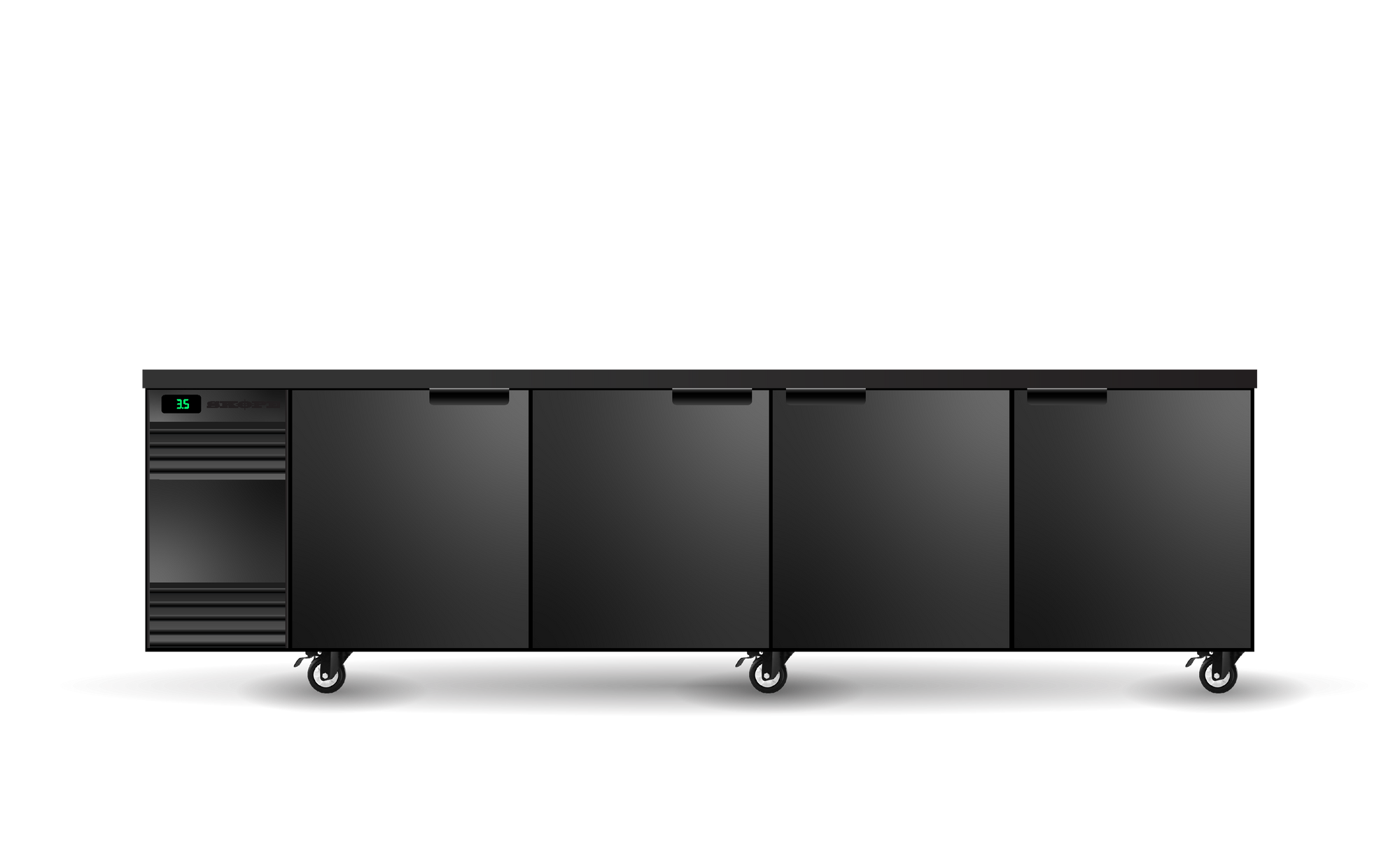

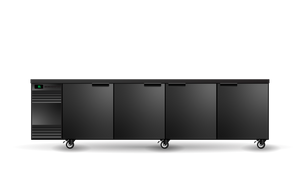

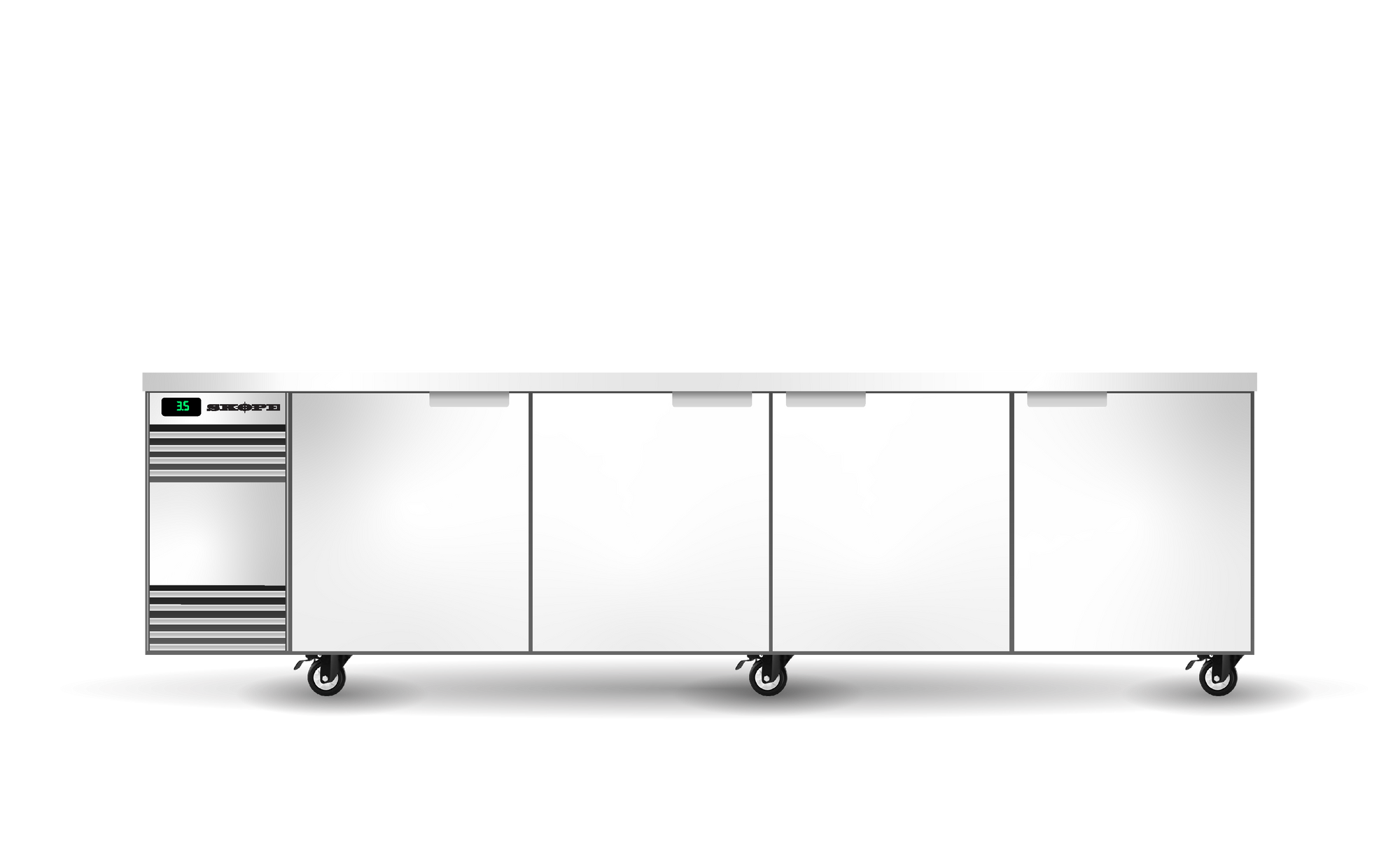

Skope SL.4.SSW BackBar 4 Solid Swing Door SlimLine Fridge

The Skope SL.4.SSW is a narrow-depth, four-door slimline bar fridge built for demanding hospitality environments where space behind the bar is at a premium. With a depth of just 590 mm, it fits comfortably in tight bar configurations while delivering a generous 606-litre gross capacity across four solid swing doors, each fitted with built-in locking tabs. The unit runs on eco-friendly R290 natural refrigerant, holds a Climate Class 4 (Tropical) rating for operation in ambient temperatures up to 40°C, and is compatible with the SKOPE-connect smart control system for remote temperature and settings management.

Designed to keep pace with busy service, the SL.4.SSW features a fully front-breathing, removable modular cartridge refrigeration system that allows for quicker and safer servicing without pulling the unit away from the wall. Dimmable, cool-white LED strip lighting illuminates product displays attractively, while a built-in hush mode reduces operating noise for quieter venues. Storage is versatile enough to accommodate a single row of 750 ml wine or Riesling bottles, two rows of 600 ml PET bottles, two rows of 355 ml beer bottles, or four rows of standard beer cans per door. Note: a benchtop is not included with this model and is available as an optional extra.

Key Benefits

• Slim 590 mm depth fits into tight under-bar or back-bar spaces without sacrificing storage capacity.
• Self-closing swing doors with integrated locking tabs on every door improve security and help maintain consistent temperatures during busy service.
• SKOPE-connect compatibility allows remote adjustment of temperature (0°C to 15°C), lighting dimming, and hush mode from a smart device.
• Built-in hush mode reduces operating noise to below 62 dB, making it suitable for quieter venues or open-plan bar environments.
• Front-breathing modular cartridge design enables quicker, safer servicing without repositioning the unit, reducing maintenance downtime.
• R290 natural refrigerant technology delivers up to 63% reduction in energy consumption compared to conventional refrigerants, with potential annual power bill savings of up to $750.
• Climate Class 4 (Tropical) rating ensures reliable performance in ambient temperatures up to 40°C, ideal for warm Australian hospitality venues.
• Flexible bottle and can storage per door supports a range of beverage formats, streamlining service and stock rotation.
• Dimmable full-height LED strip lighting enhances product visibility and presentation while allowing light levels to be adjusted to suit the venue ambience.

Key Features

• Four solid swing doors with self-closing mechanism and built-in locking tabs on every door.
• 606-litre gross capacity across a slim 590 mm depth cabinet footprint of 1.65 m².
• Height adjustable from 820 mm to 835 mm on castors, or 725 mm with plinth mount (833 mm standard height).
• Eight adjustable-height shelves: 4 outer shelves (547W × 440L mm) and 4 inner shelves (605W × 440L mm), powder-coated wire construction.
• Shelf configuration supports 1 row of 750 ml wine/Riesling bottles, 2 rows of 355 ml beer bottles, 2 rows of 600 ml PET bottles, or 4 rows of standard beer cans per door.
• Body material: powder-coated galvanised steel or 304 stainless steel exterior.
• Self-contained, fully front-breathing interchangeable modular cartridge refrigeration system.
• R290 natural refrigerant (81 g charge) for low global warming potential.
• Temperature range: 1°C to 4°C standard; adjustable to 0°C–15°C via SKOPE-connect.
• Maximum ambient operating temperature: 40°C (Climate Class 4, Tropical).
• Automatic defrost system.
• Fan-assisted cooling for rapid and even temperature recovery.
• SCS Connect controller with SKOPE-connect compatibility for smart monitoring and remote control.
• 2 × 16W cool-white (5500–6500K) dimmable LED strip lights mounted on the cabinet ceiling.
• Standard operating noise below 66 dB; hush mode (via SKOPE-connect) below 62 dB.
• Power supply: 220–240V AC, 50 Hz, single-phase; 4.0 A current draw.
• 1.9 m power cord with 3-pin, 10 A plug.
• GEMS Class 5M1 energy rating.
• Total weight: 255 kg.
• Benchtop not included; available as an optional accessory.

Specifications

• Width (mm): 2805
• Depth (mm): 590
• Height (mm): 830
• Weight (kg): 255
• Colour: Stainless Steel
• Gas Type: R290
• Capacity (Litres): 606
• No. of Doors: 4
• Door Type: Solid
• Shelf Configuration: Eight adjustable height, powder-coated wire shelves, 4 × outer shelf (547W × 440L), 4 × inner shelf (605W × 440L)
• Body Material: Powdercoat galvanised steel or stainless steel
• Material: 304 Stainless Steel
• No. of Shelves: 3
• Power (kW): 0.96
• Amps (A): 4
• Power Cord: 1.9m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 volts a.c., 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 0°C to 15°C)
• Refrigerant: R290 / 81g
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Noise (dB): ​​​Standard <66 Hush Mode (via SKOPE-connect) <62​​
• Interior Lighting: 2 × 16W, cool white (5500-6500K) LED strips on cabinet ceiling
• Control Type: SCS Connect (SKOPE-connect™ compatible)
• GEMS Class: 5M1
• GEMS Energy Consumption: 3.67
• GEMS Annual Running Cost: $402 (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
