Overview

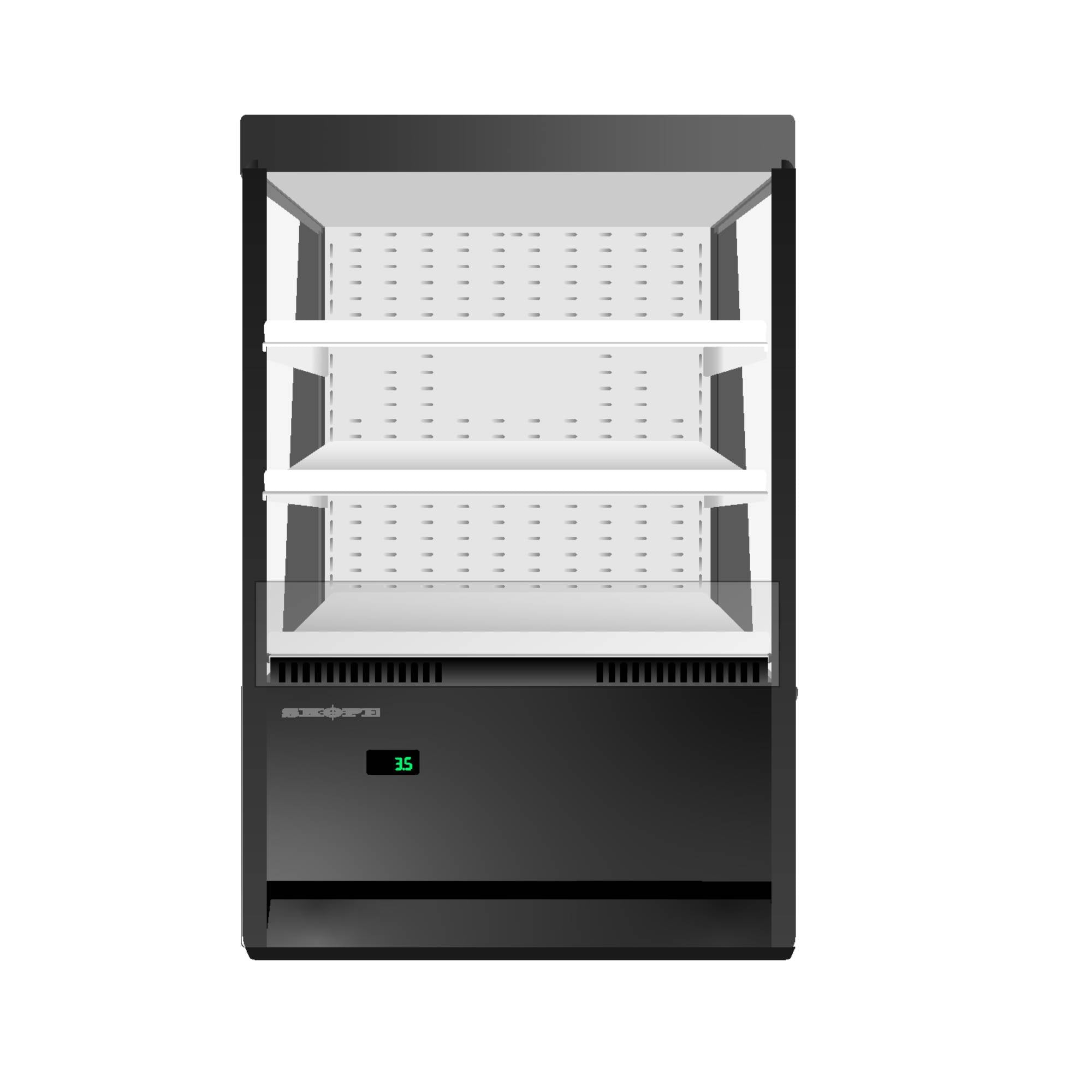

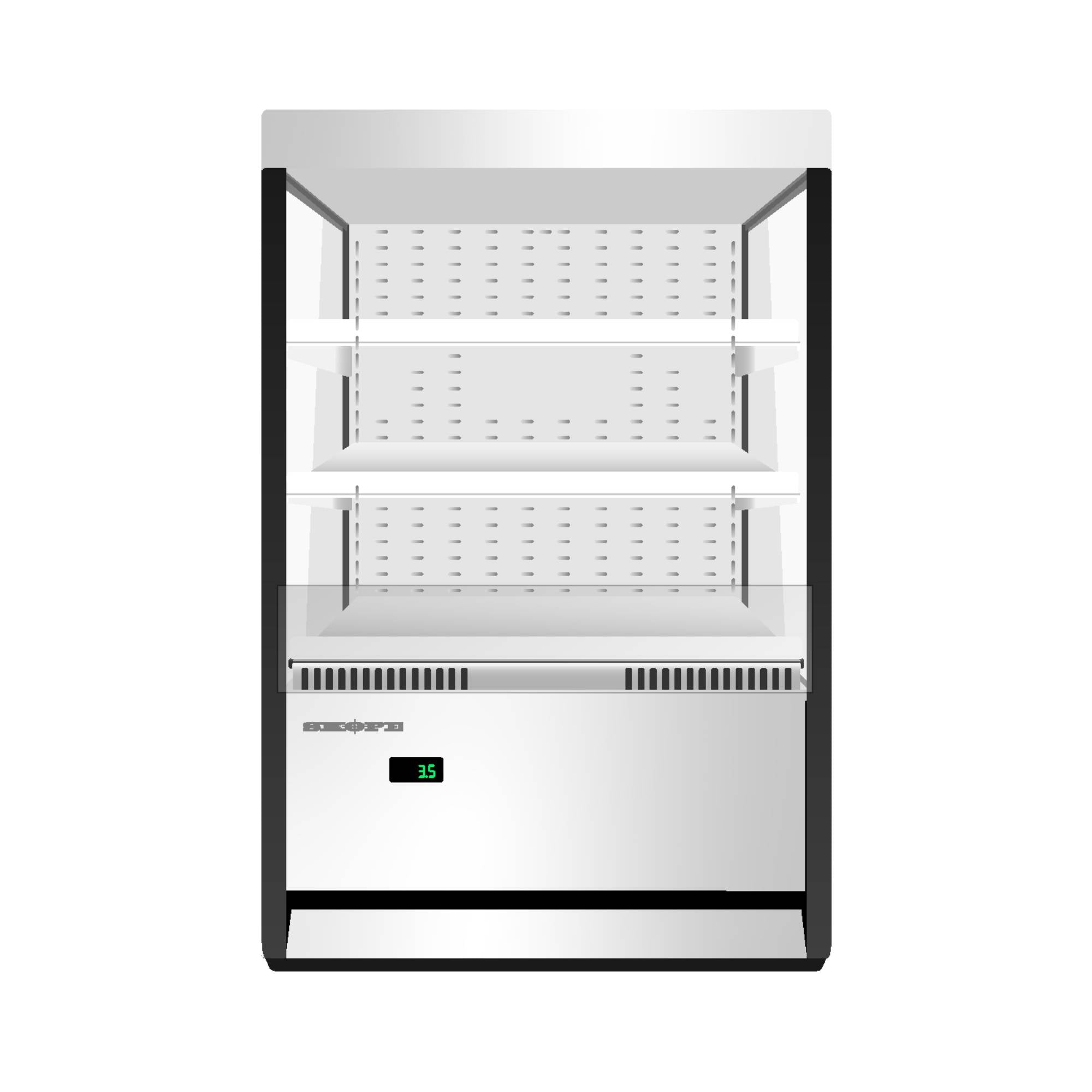

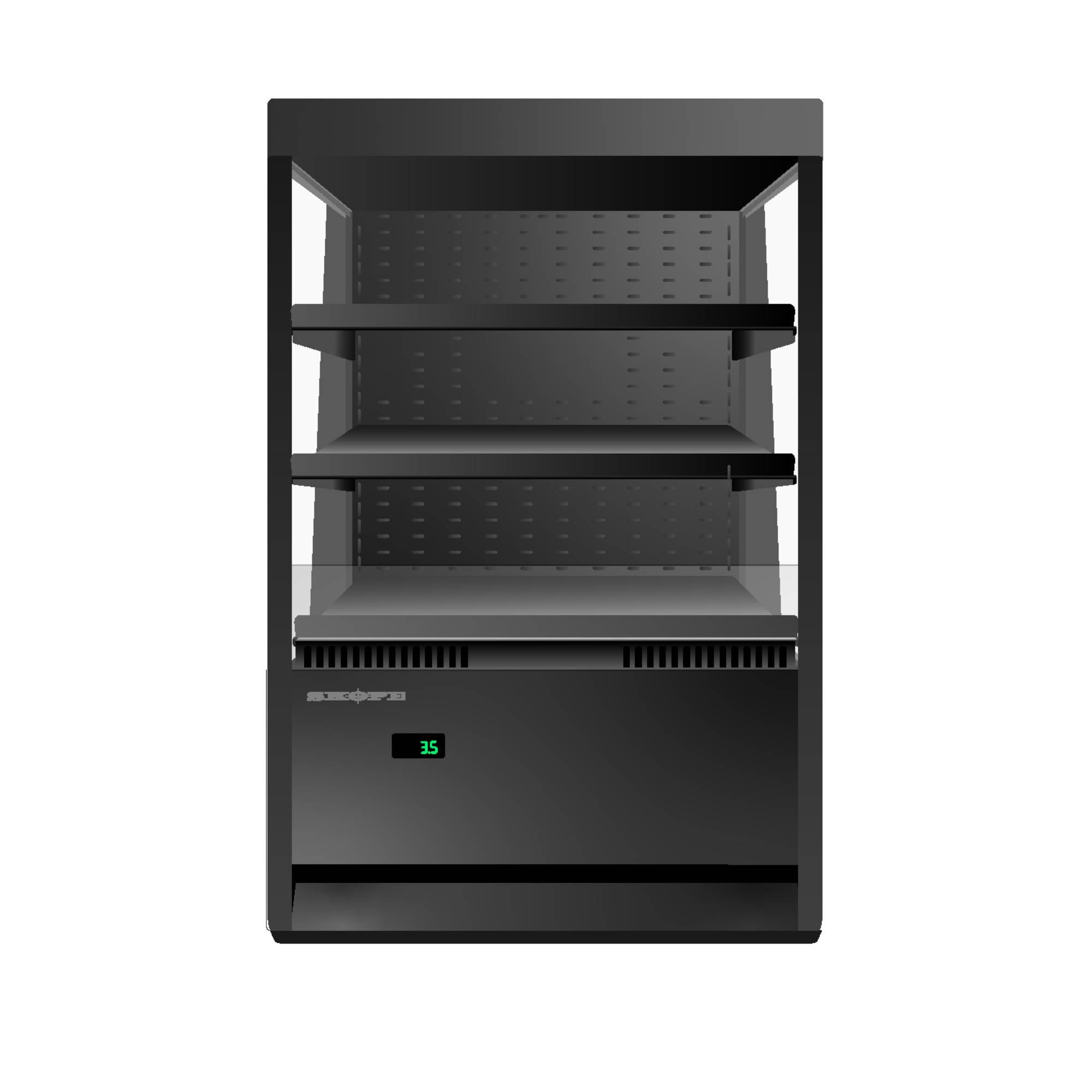

Skope OD400N Open Deck Fridge

The Skope OD400N is a freshly upgraded open deck multideck display fridge designed to maximise chilled product visibility and drive impulse grab-and-go sales in high-traffic commercial environments. Built with 304 stainless steel and available in white or black, it combines 314-litre gross capacity with three angled shelves, glass sides, and dimmable LED shelf-front lighting to create a compelling product presentation across quick service restaurants, convenience stores, supermarkets, hospitality venues, accommodation providers, and schools.

At the heart of the OD400N is Skope's ChillGuard technology, a leading-edge fan-assisted airflow system that maintains food-safe temperatures between 1°C and 5°C regardless of ambient conditions up to 25°C. The unit runs on R290 natural refrigerant for a genuinely low global-warming-potential refrigeration solution, and the SKOPE-connect app delivers remote monitoring, HACCP recording, and Hush Mode quiet operation, while a built-in night blind with energy saving mode and a bottom-mounted modular cartridge design round out an exceptionally practical and serviceable package.

Key Benefits

• Open multideck format with glass sides puts chilled products in full view from multiple angles, encouraging impulse purchases without any barrier to access.
• ChillGuard fan-assisted airflow engineering holds product mass average at 2°C to 4°C consistently, keeping stock fresh and food-safe throughout trading hours.
• R290 natural refrigerant (150 g charge) delivers a low environmental impact refrigeration cycle without sacrificing cooling performance.
• SKOPE-connect app control enables remote temperature monitoring, HACCP data recording, lighting adjustments, and Hush Mode activation directly from a smartphone.
• Built-in night blind activates an energy saving mode after trading hours, reducing running costs without requiring staff intervention.
• Dimmable LED shelf-front lighting lets operators tune brightness to suit the environment or time of day, balancing product appeal with energy consumption.
• Bottom-mounted interchangeable modular cartridge simplifies servicing and reduces technician labour time, minimising downtime in busy operations.
• Ticket strips are fitted to shelves as standard, making price and promotional labelling quick and consistent across all three shelf levels.
• Large flat surfaces on the unit provide maximum space for own branding, signage, and promotional graphics to reinforce venue or retail identity.

Key Features

• Open deck design with no door for instant, unobstructed customer access to chilled products.
• Three-shelf configuration: one top shelf adjustable in height and angle (800W x 270D mm), one middle shelf adjustable in height and angle (800W x 295D mm), and one fixed-angle bottom shelf (805W x 330D mm).
• Glass sides for 360-degree product visibility and maximum display impact.
• 3 x 6-watt LED shelf-front lights with dimmable control via SKOPE-connect.
• Ticket strips fitted to all shelves as standard for easy price and promotional labelling.
• Skope ChillGuard technology with fan-assisted cooling to maintain even temperatures throughout the cabinet.
• Temperature range of 1°C to 5°C; product mass average 2°C to 4°C; Climate Class 3M1.
• R290 natural refrigerant, 150 g charge, for low-GWP operation.
• Self-contained refrigeration system with automatic defrost.
• Built-in night blind with energy saving mode for after-hours operation.
• Bottom-mounted interchangeable modular cartridge design for faster, safer servicing.
• SCS Connect GEMS controller with SKOPE-connect app compatibility for remote monitoring, HACCP recording, and Hush Mode (noise reducible from 65.6 dB to 64.5 dB).
• 304 stainless steel construction; available in stainless steel, white, or black finishes.
• 3-metre power cord with 3-pin 10-amp plug; 220-240 V AC, 50 Hz single-phase supply.
• GEMS rated energy consumption of 6.68 kWh per 24 hours; estimated annual running cost of $731 at $0.30/kWh.
• Total floor area of 0.6 m².
• Suited to quick service restaurants, convenience and petrol outlets, supermarkets, hospitality venues, accommodation providers, restaurants, cafes, clubs, pubs, bars, and schools.

Specifications

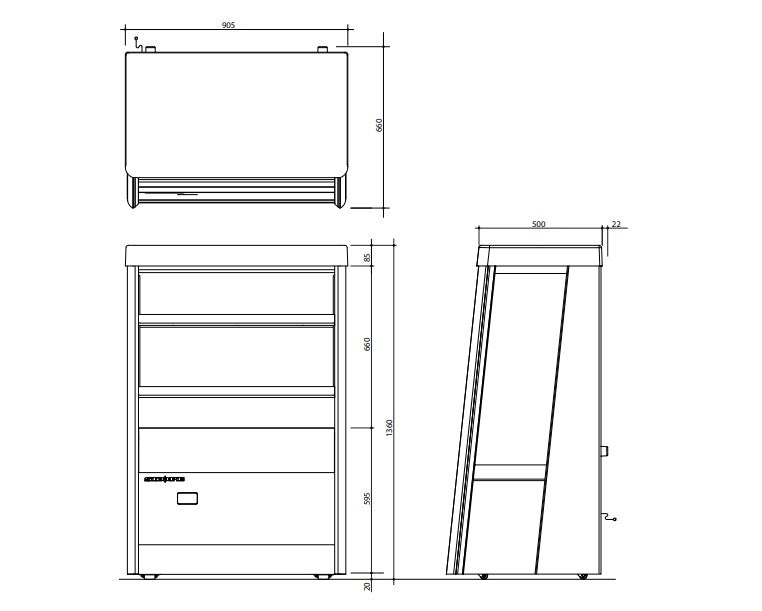

• Width (mm): 905
• Depth (mm): 660
• Height (mm): 1360
• Weight (kg): 135
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 135
• Packed Width (mm): 900.0
• Packed Height (mm): 1400.0
• Packed Depth (mm): 700.0
• Shipping Cubic: 0.882000000m3
• Capacity (Litres): 314
• Power (kW): 0.84
• Amps (A): 3.5
• Power Cord: 3 m power cord with 3-pin, 10 amp plug
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 25°C
• Temperature Range: 1°C - 5°C (2°C - 4°C product mass average)
• Climate Class: 3M1
• Refrigerant: R290/150 g
• Defrost Type: Automatic
• Cooling Type: Fan-assisted
• Door Type: No Door
• Shelf Configuration: 1 × top adjustable height and angle shelf (800W × 270D), 1 × middle adjustable height and angle shelf (800W × 295D), 1 × fixed angle bottom shelf (805W × 330D)
• Material: 304 Stainless Steel
• No. of Shelves: 3
• No. of Doors: 1
• Noise (dB): ​​65.6​ (adjustable to 64.5 with SKOPE-connect Hush Mode)​​
• Interior Lighting: 3 × 6 watt LED shelf-front lights
• Control Type: SCS Connect
• GEMS Energy Consumption: 6.68
• GEMS Annual Running Cost: $731 (@ $0.30/kWh)
• Warranty (months): 2 Year
• Country of Origin: New Zealand
• Energy Consumption (kWh/24h): GEMS Certified
