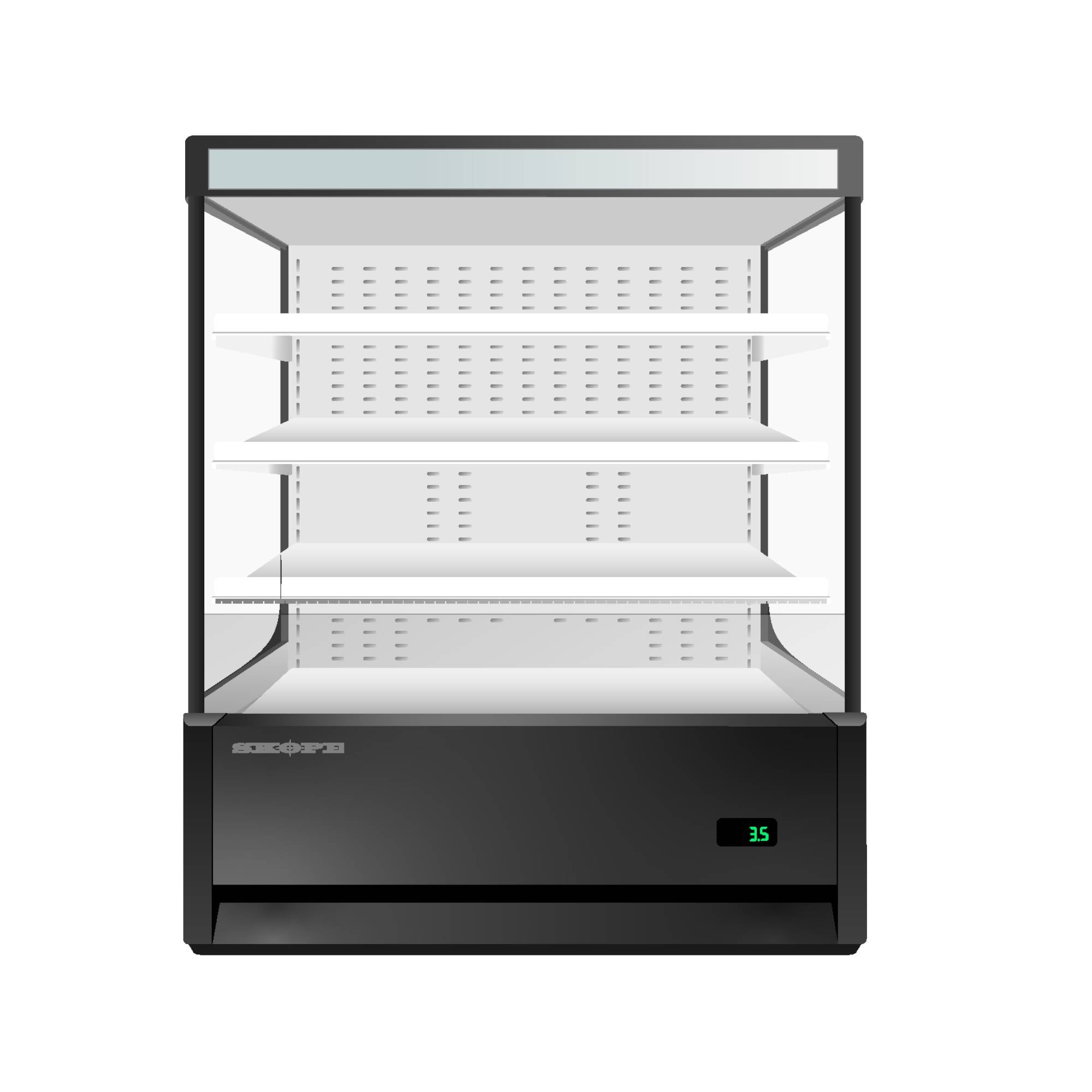

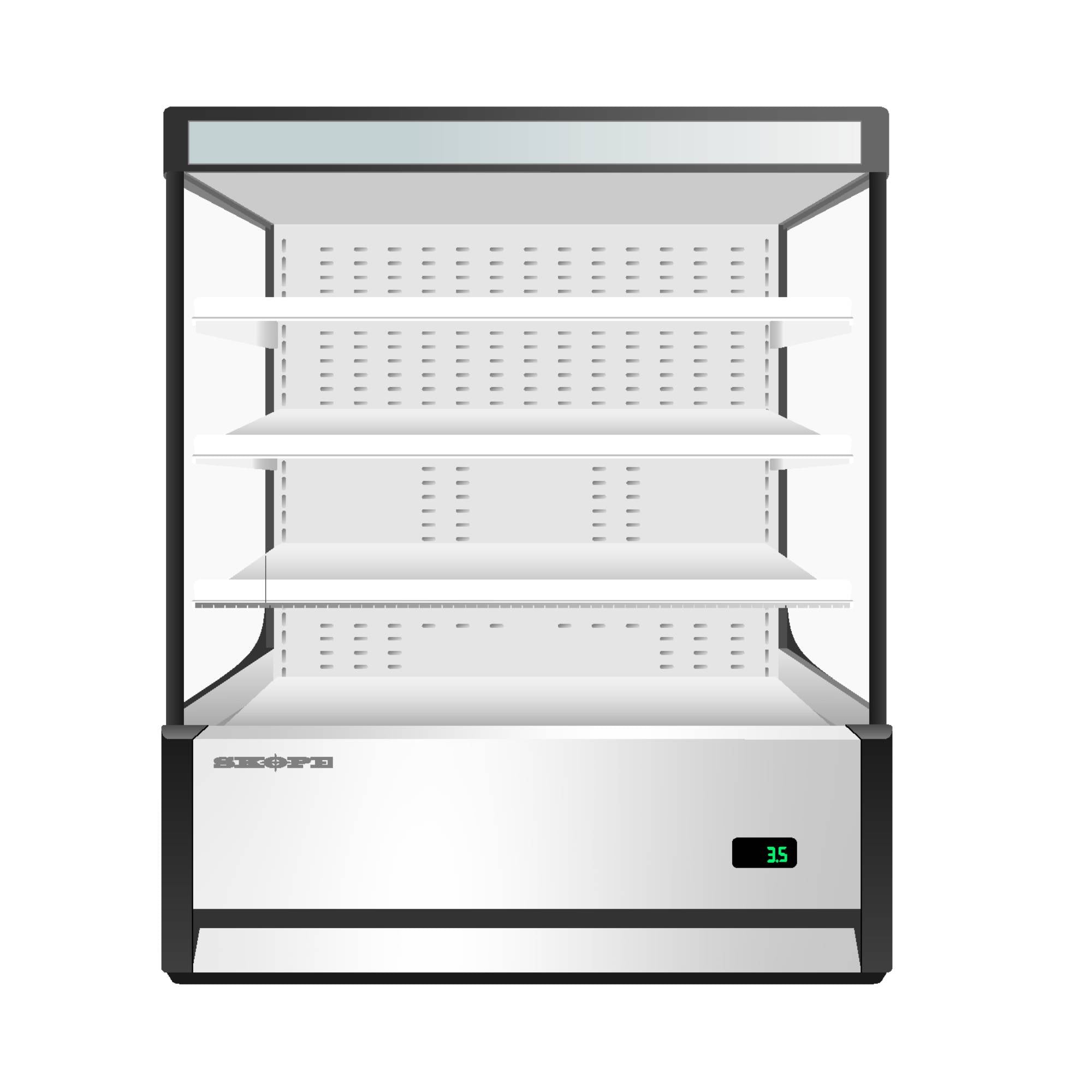

Skope 798L Open Deck Fridge OD720N
Couldn't load pickup availability
Overview
The all new OD720N is the newest addition to SKOPE's Open Deck range, bringing unique ChillguardTM technology, increased product visibility, and natural refrigerant technology. NB: Only available to purchase in Australia.
- Truly green natural refrigeration technology with R290 natural refrigerant
- SKOPE's unique ChillGuard technology; leading-edge airflow engineering ensuring product is always chilled and ready to serve at food-safe temperatures (M1 - 0°C to 5°C)
- Huge storage capactiy and incredible product visibility
- SKOPE-connect app control and convenience – including “hush mode” for quiet running, HACCP recording and more
- High impact, dimmable, shelf lighting and glass sides for maximum viewing
- Maximum space to apply own branding
- Ticket strips fitted to shelves as standard
- NB: Only available to purchase in Australia
- Best suited to: Restaurants / Cafes, Clubs / Pubs / Bars, Quick Service Restaurants, Convenience / Petrol / Supermarkets, Schools
- Dimensions: 1282 W x 836 D x 1540 H (mm)
- Door Type: No Door
- Shelves: 3 adjustable angle (8° or flat), adjustable height shelves + 1 fixed angle (8°) bottom shelf.
- Gross Volume (Litres): 798
- Total Floor Area (m2): 1.07
- Weight (kg): 248
- Refrigeration Unit: Self-Contained
- Temperature Range: -1 to +5
- Max Ambient Temperature: 25
- Refrigerant: R290 / 135 g
- GEMS Class: 3M1
- GEMS Energy Consumption (kWh/24h): 16.15
- GEMS Annual Running Costs: $1768 (@ $0.30/kWh)
- kW: 1.15
- Current Draw (Amps): 4.8
- Interior Lighting: 4 × 7.5 W LED shelf lights
- Power Cord: 3 m power cord with 3-pin, 10 amp plug
- Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply

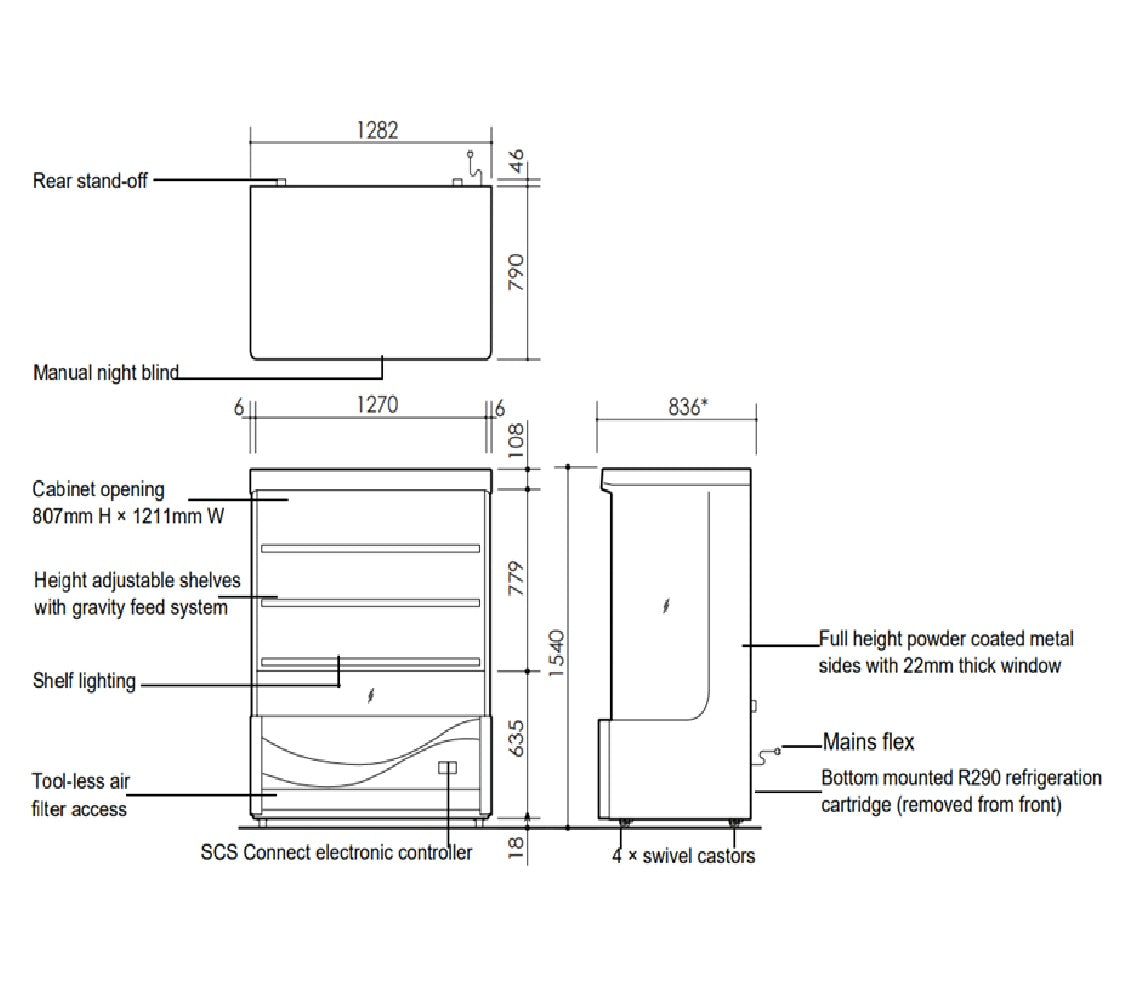

Product Dimensions: 1282(W) x 1540(H) x 836(D)mm
Options Available:
Contact Us for more Information
All Ice machines MUST be maintained to ensure high performance.
The cartridge on the water filter system needs to be replaced every 6 months and the unit must be de-scaled to clean the refrigeration evaporator plate.
This maintains the quality of the ice shape and thickness.
This program will extend machine life, improve ice quality, reduce bacterial growth risks, and ensure food safety compliance.
If your ice machine is not maintained, your warranty may be void.
6 Monthly Maintenance Program
-
Remove scale and mineral deposits from evaporator plate and water distribution system using approved descaler. -
Sanitise water reservoir, distribution tubes, and bin interior. -
Clean and flush condenser coils (air-cooled units). -
Inspect condenser fan motor and blades. -
Check inlet water valve, float, and filters for correct operation. -
Verify ice thickness probe or sensor calibration.
-
Inspect refrigerant pressures, superheat, and subcooling – adjust if necessary. -
Test compressor amperage and general performance. -
Inspect water pump operation and clean pump housing. -
Check harvest cycle operation (heater or hot gas valve). -
Inspect electrical connections, relays, and contactors. -
Replace inline water filter cartridge.
