Overview

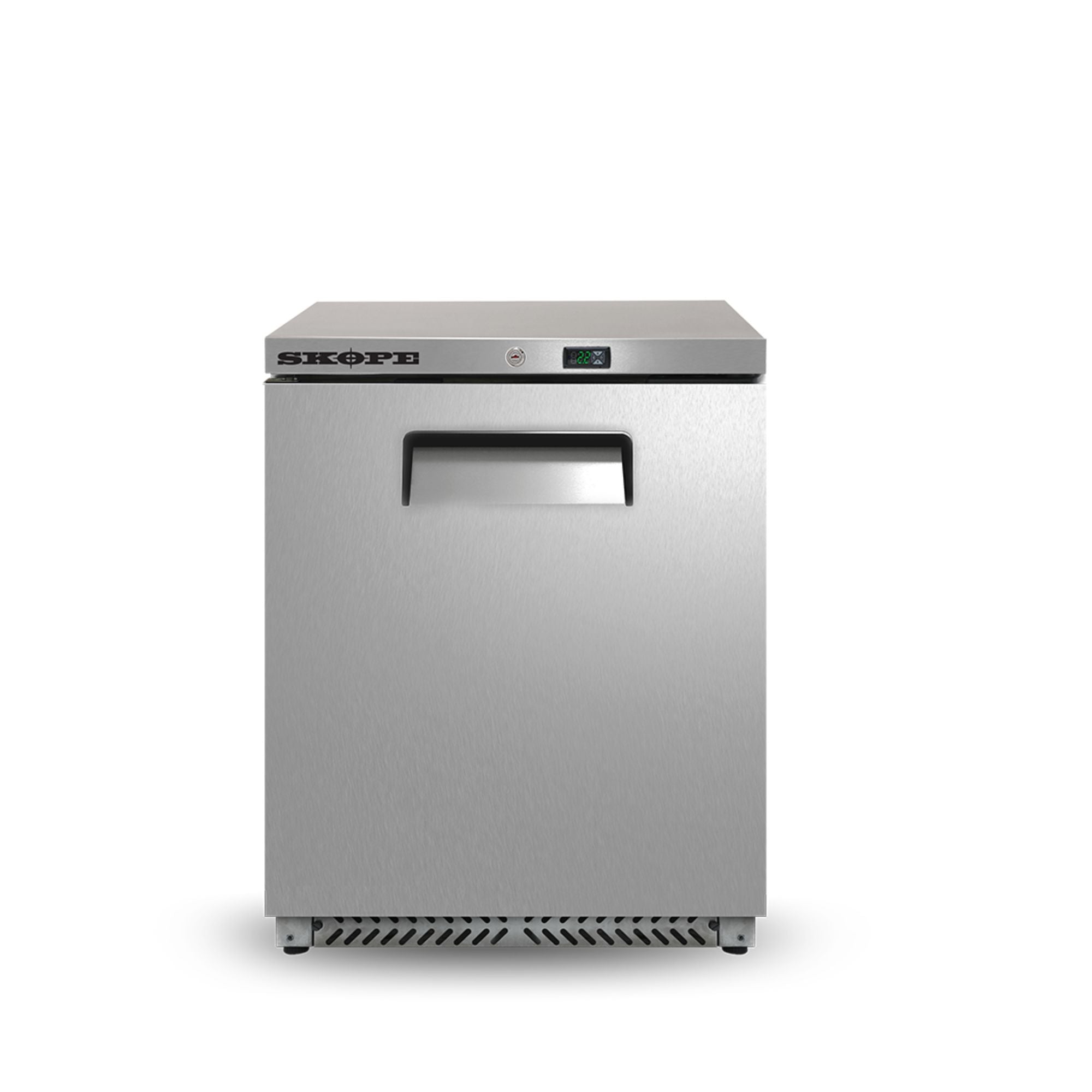

Skope RF6.UBF.1.SD ReFlex 1 Solid Door Underbench Freezer

The Skope RF6.UBF.1.SD ReFlex is a self-contained, single solid door underbench freezer engineered for demanding commercial kitchens. Constructed entirely from 304 AISI stainless steel inside and out, it fits neatly beneath a standard bench at 600mm wide and 850mm tall, delivering 146 litres of usable frozen storage without consuming valuable floor space. The unit operates on R290, a natural refrigerant with minimal environmental impact, and carries a GEMS Class 4L1 rating with an estimated annual running cost of just $530 at current electricity rates.

At the heart of the ReFlex is compatibility with the SKOPE-connect app via Bluetooth wireless technology, allowing operators to fine-tune the temperature range and switch instantly between pre-set profiles covering a full range of perishable categories including poultry, red meat, dairy, desserts, chocolate, drinks, both fresh and live seafood, and general food safety requirements. The SCS Connect controller makes these adjustments straightforward during a busy service, while automatic defrost, fan-assisted cooling, and a Climate Class 4 tropical rating ensure consistent performance in kitchens where ambient temperatures climb. A stainless steel benchtop is included as standard, and front levelling feet with rear rollers make positioning simple. Ideally suited to high-volume foodservice venues such as cafes, restaurants, clubs, pubs, bars, and quick service operations.

Key Benefits

• SKOPE-connect app and Bluetooth connectivity let staff switch between temperature pre-sets for specific produce categories in seconds, reducing the risk of improper storage temperatures.
• 146-litre GN-compatible interior accepts full 1/1 GN trays, streamlining prep workflows and maximising usable frozen storage within a compact underbench footprint.
• R290 natural refrigerant with a 45 g charge carries virtually zero ozone depletion potential and negligible global warming impact compared to synthetic refrigerants, supporting sustainability goals.
• GEMS Class 4L1 compliance with a daily consumption of 4.84 kWh translates to an estimated $530 annual running cost, keeping ongoing energy overheads low.
• 304 AISI stainless steel interior and exterior withstand heavy daily use, frequent cleaning, and the rigours of back-of-house environments while maintaining a professional appearance.
• Self-closing, lockable, and field-reversible door suits varied kitchen layouts and helps maintain temperature integrity during busy service periods.
• Stainless steel benchtop supplied as standard immediately extends usable prep surface area above the unit without additional outlay.
• Front levelling feet and rear rollers simplify installation and allow the unit to be repositioned easily during kitchen reconfigurations or cleaning.
• Automatic defrost and fan-assisted cooling maintain stable temperatures across the full cabinet with minimal operator intervention.

Key Features

• Self-contained refrigeration system with fan-assisted cooling and automatic defrost
• Temperature range of -21°C to -18°C standard; adjustable from -26°C to -12°C via SKOPE-connect app
• SCS Connect controller with Bluetooth wireless technology for SKOPE-connect app compatibility
• Nine pre-set temperature profiles covering general food safety, poultry, red meat, fresh seafood, live seafood, dairy, desserts, chocolate, and drinks
• GN compatible: accepts full 1/1 GN trays
• 146-litre gross capacity
• 304 AISI stainless steel interior and exterior construction
• Stainless steel benchtop included as standard
• 1 self-closing, lockable, field-reversible solid swing door with right-hand hinge (field reversible)
• 2 shelves per door: 1 adjustable, 1 floor-mounted
• Adjustable levelling feet (operating height 865–905 mm) and rear rollers
• R290 natural refrigerant, 45 g charge
• Climate Class 4 (tropical) rated for max ambient temperature of 30°C
• GEMS Class 4L1 compliant; 4.84 kWh/24 h energy consumption
• Estimated annual running cost $530 p.a. at $0.30/kWh
• Power supply: 220–240 V AC, 50 Hz, single-phase
• 0.36 kW power draw; 1.5 A current draw
• Supplied with 2 m, 10 A plug and cable; 3-year parts and labour warranty included

Specifications

• Width (mm): 600
• Depth (mm): 635
• Height (mm): 850
• Weight (kg): 52
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 52
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 700.0
• Capacity (Litres): 146
• Power (kW): 0.36
• Amps (A): 1.5
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Door Type: Self-closing, lockable, reversible, solid swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 1
• No. of Shelves: 2
• Max Ambient Temp (°C): 30°C
• Temperature Range: -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: R290 / 45g (natural refrigerant)
• Refrigeration Type: Underbench Freezer
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 4L1
• GEMS Energy Consumption: 4.84
• GEMS Annual Running Cost: $530 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
• Interior Lighting: LED
