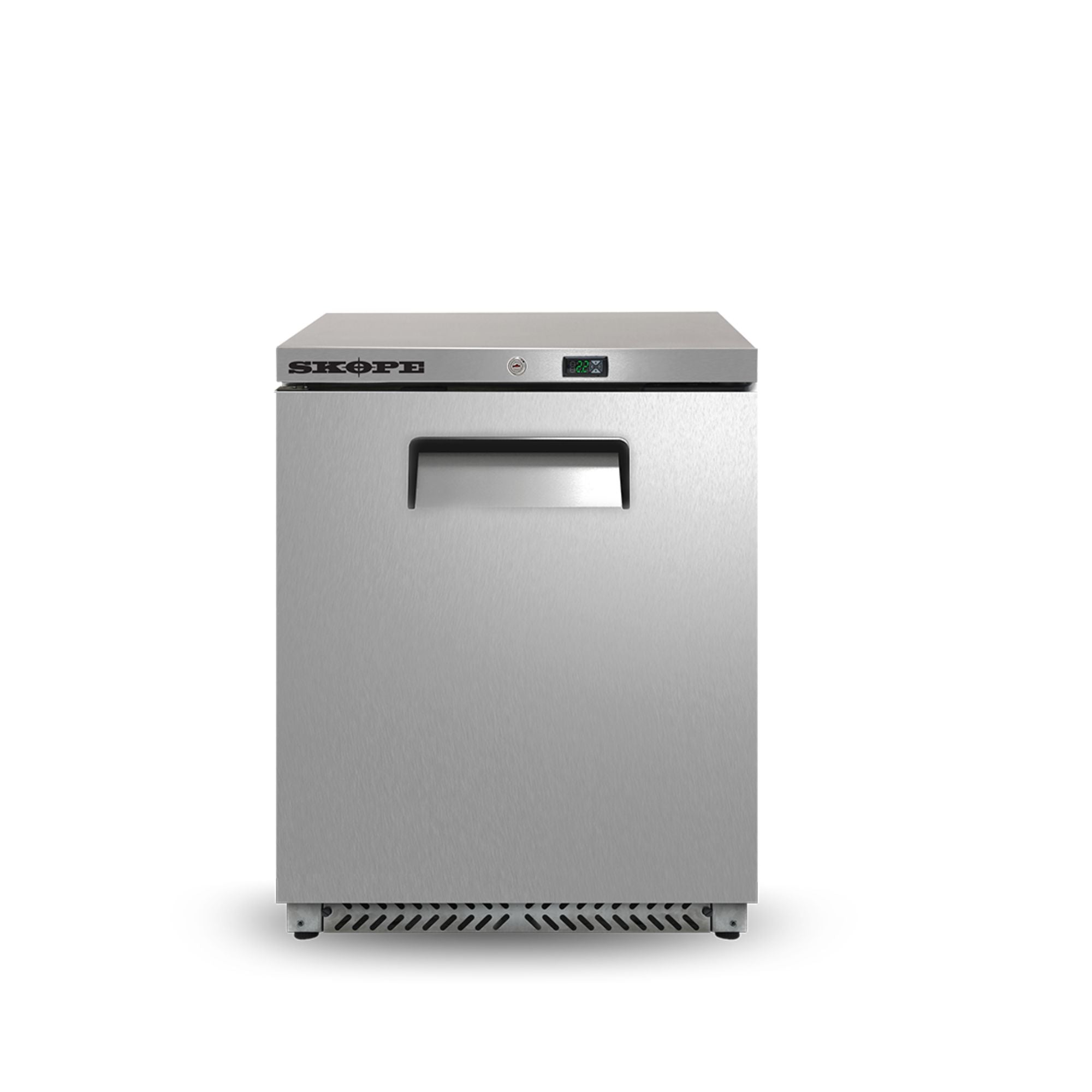

Skope RF6.UBR.1.SD ReFlex 1 Solid Door Underbench Fridge

The Skope ReFlex RF6.UBR.1.SD is a single solid door underbench fridge engineered for demanding commercial kitchens, bars, cafes and hospitality venues. Built with a 304 AISI stainless steel interior and exterior, it delivers reliable chilled storage at worktop height within a compact 600 mm wide footprint, making it ideal for tight back-of-house and front-of-house spaces where floor area is at a premium.

Powered by the SKOPE-connect app via Bluetooth wireless technology, the ReFlex lets operators switch temperature ranges instantly using food-type presets covering general food safety, poultry, red meat, fresh seafood, live seafood, dairy, desserts, drinks and chocolate. Combined with a natural R600a refrigerant, GEMS-compliant power economy, a self-contained refrigeration cartridge system and a stainless steel benchtop as standard, the RF6.UBR.1.SD is a practical, low-running-cost solution for restaurants, clubs, pubs, quick service restaurants, schools, aged care facilities and accommodation venues.

Key Benefits

• Worktop-height underbench design adds cold storage directly on the line without consuming additional floor space.
• SKOPE-connect app with Bluetooth lets staff switch between food-type temperature presets at the touch of a button, reducing manual adjustments and food safety risk.
• Natural R600a refrigerant (45 g charge) has virtually no environmental impact, supporting sustainability goals.
• GEMS Class 4M1 rating and a low 1.30 kWh per 24 hours energy consumption keeps annual running costs to approximately $143, reducing overheads.
• GN-compatible interior accepts full 1/1 GN trays, streamlining food prep and storage workflows.
• Self-closing, lockable and field-reversible door improves food safety compliance and suits variable kitchen layouts.
• Easy-to-service refrigeration cartridge system minimises downtime during maintenance.
• Front levelling feet and rear rollers allow straightforward repositioning and levelling on uneven floors.
• Stainless steel benchtop included as standard, providing an immediately usable work surface above the unit.

Key Features

• Single solid swing door; self-closing, lockable and field-reversible hinge (right-hand hinge standard on RF6 units)
• 304 AISI stainless steel interior and exterior construction for durability and hygiene
• Stainless steel benchtop supplied as standard
• 139-litre gross capacity
• 2 shelves per door: 1 adjustable shelf and 1 floor-mounted shelf
• GN-compatible: accepts 1/1 GN trays
• SCS Connect controller with SKOPE-connect app compatibility via Bluetooth wireless technology
• Food-type temperature presets for general food safety, poultry, red meat, fresh seafood, live seafood, dairy, desserts, drinks and chocolate
• Temperature range 1°C to 4°C standard; adjustable 1°C to 15°C via SKOPE-connect app
• Maximum ambient operating temperature 30°C (Climate Class 4 - Tropical)
• Self-contained, integral refrigeration system with easy-to-service refrigeration cartridge
• Fan-assisted cooling for even temperature distribution
• Automatic defrost
• R600a natural refrigerant, 45 g charge
• GEMS Class 4M1 compliant; 1.30 kWh/24 h energy consumption; estimated annual running cost $143 p.a. at $0.30/kWh
• 0.24 kW power draw; 1.0 amp current draw
• 220-240 V AC, 50 Hz single-phase power supply
• Supplied with 2 m, 10-amp plug and lead
• Front levelling feet and rear rollers for easy positioning
• Total floor area: 0.38 m²
• Unit weight: 50 kg
• Contemporary premium design suited to both back-of-house and customer-facing environments
• Suitable for restaurants, cafes, clubs, pubs, bars, quick service restaurants, hospitality venues, accommodation, schools, and medical/aged care facilities

Specifications

• Width (mm): 600
• Depth (mm): 635
• Height (mm): 850
• Weight (kg): 50
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 50
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 700.0
• Capacity (Litres): 139
• Power (kW): 0.24
• Amps (A): 1
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Door Type: Self-closing, lockable, reversible, solid swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 1
• No. of Shelves: 2
• Max Ambient Temp (°C): 30°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect 1°C to 15°C)
• Refrigerant: R600a / 45g (natural refrigerant)
• Refrigeration Type: Underbench Fridge
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 4M1
• GEMS Energy Consumption: 1.30
• GEMS Annual Running Cost: $143 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
• Interior Lighting: LED
