Overview

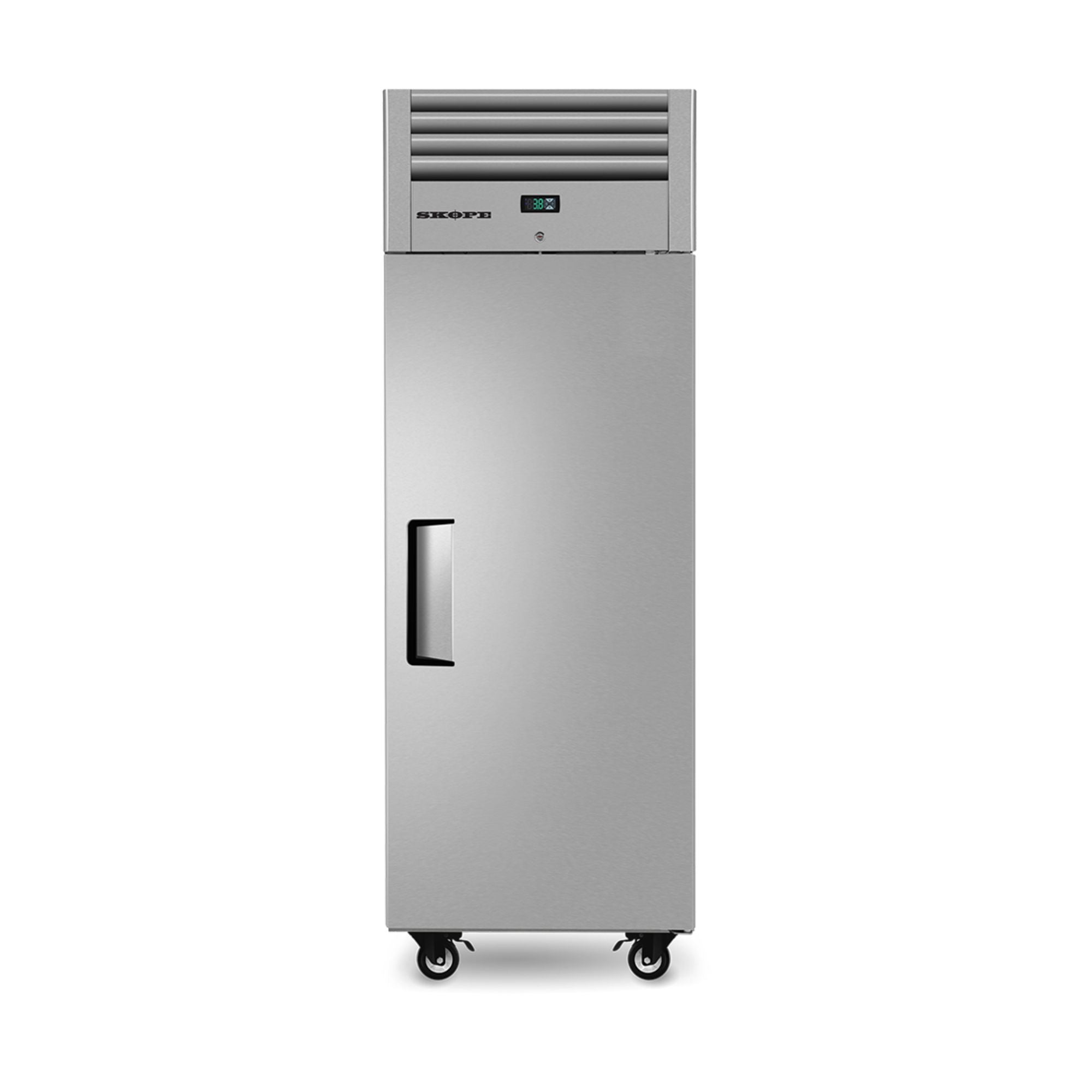

Skope RF7.UPR.1.SD ReFlex 1 Solid Door Upright Fridge

The Skope ReFlex RF7.UPR.1.SD is a 469-litre single solid door upright refrigerator engineered to meet the rigorous demands of commercial kitchens, healthcare facilities, quick service operations, and the broader hospitality industry. Despite a compact 0.52 m² footprint, it delivers generous chilled storage capacity, and its full 304 AISI stainless steel construction — inside and out — ensures lasting durability in demanding back-of-house environments. Powered by the natural R290 refrigerant and rated to Climate Class 4 (Tropical), the unit operates reliably in ambient conditions reaching 40°C.

Central to the ReFlex range is the SCS Connect controller, which pairs with the SKOPE-connect app over Bluetooth to give operators instant access to a suite of purpose-built temperature profiles covering a wide variety of chilled product categories — from proteins and seafood varieties through to dairy produce and desserts — eliminating the need for manual temperature adjustment and reducing food safety risk. The top-mounted refrigeration unit is engineered as an integral, removable cartridge for straightforward servicing, and the range earned recognition as Best New Hospitality Equipment Product 2019 from the Foodservice Consultants Society International (FCSI).

Key Benefits

• Instant profile switching via SKOPE-connect app presets removes the need for manual adjustment, lowering food safety risk across a diverse range of chilled product types.
• R290 natural refrigerant with a 70 g charge carries virtually no global warming impact, supporting sustainability commitments without any compromise to cooling performance.
• GEMS Class 5M1 rating with a consumption of just 2.00 kWh per 24 hours keeps operating costs low, equating to an estimated $219 per year based on $0.30/kWh.
• The integral, removable top-mounted refrigeration cartridge (model UTKCNI-0017) allows quick servicing access and minimises operational downtime in a busy commercial kitchen.
• A 0.52 m² total floor area makes this unit well suited to space-constrained back-of-house layouts where every square metre counts.
• Self-closing, lockable, and reversible solid swing doors maintain consistent cabinet temperatures and can be configured for either left- or right-hand opening to suit the surrounding layout.
• Door-activated LED interior lighting (1 x 1200 mm, 12 W) improves product visibility while drawing less energy than conventional fluorescent tube lighting.
• Full 304 AISI stainless steel construction throughout resists corrosion, withstands rigorous cleaning regimes, and presents a professional appearance in any commercial environment.
• Supplied ready to use with removable castors and a 2 m, 10-amp, 3-pin plug and lead, enabling straightforward installation and repositioning without the need for additional accessories.

Key Features

• 469-litre gross capacity across a 0.52 m² total floor area.
• Single solid swing door configuration; self-closing, lockable, and reversible for left- or right-hand opening.
• Five adjustable plastic-coated wire shelves for flexible product storage arrangements.
• Full 304 AISI stainless steel interior and exterior body.
• Top-mounted, integral, removable refrigeration cartridge (model UTKCNI-0017) for ease of servicing.
• SCS Connect controller, compatible with SKOPE-connect app via Bluetooth wireless technology.
• SKOPE-connect temperature profiles spanning seven distinct chilled product categories: general food safe, poultry, red meat, fresh seafood, live seafood, dairy, and desserts.
• Default operating range of 1°C through to 4°C; adjustable via the SKOPE-connect app across a broader span of -2°C up to 15°C.
• R290 natural refrigerant, 70 g charge, with virtually no global warming impact.
• Climate Class 4 (Tropical); maximum ambient operating temperature 40°C.
• Automatic defrost cycle.
• Self-contained refrigeration system.
• Power draw of 0.48 kW / 2.0 A (unit draw 1.5 A); single-phase 220–240 V AC, 50 Hz supply.
• GEMS Class 5M1; energy consumption 2.00 kWh/24 h; estimated annual running cost $219 p.a. at $0.30/kWh.
• GEMS compliant.
• Supplied with a 2 m, 10-amp, 3-pin plug and lead.
• Supplied with removable castors.
• 1 x 1200 mm, 12 W door-activated LED interior light.
• Winner of the FCSI Best New Hospitality Equipment Product award, 2019.
• Suitable for restaurants, cafes, clubs, pubs, quick service restaurants, hospitality venues, accommodation providers, schools, and healthcare facilities.

Specifications

• Width (mm): 680
• Depth (mm): 760
• Height (mm): 1985
• Weight (kg): 115
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 115
• Packed Width (mm): 800.0
• Packed Height (mm): 2000
• Packed Depth (mm): 700.0
• Capacity (Litres): 469
• Power (kW): 0.48
• Amps (A): 2
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C)
• Refrigerant: R290 / 70g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, reversible, solid swing doors
• Shelf Configuration: 5 adjustable plastic coated wire shelves
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Shelves: 5
• No. of Doors: 1
• GEMS Class: 5M1
• GEMS Energy Consumption: 2.00
• GEMS Annual Running Cost: $219 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 1 x 1200mm, 12W LED light (door activated)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
