Overview

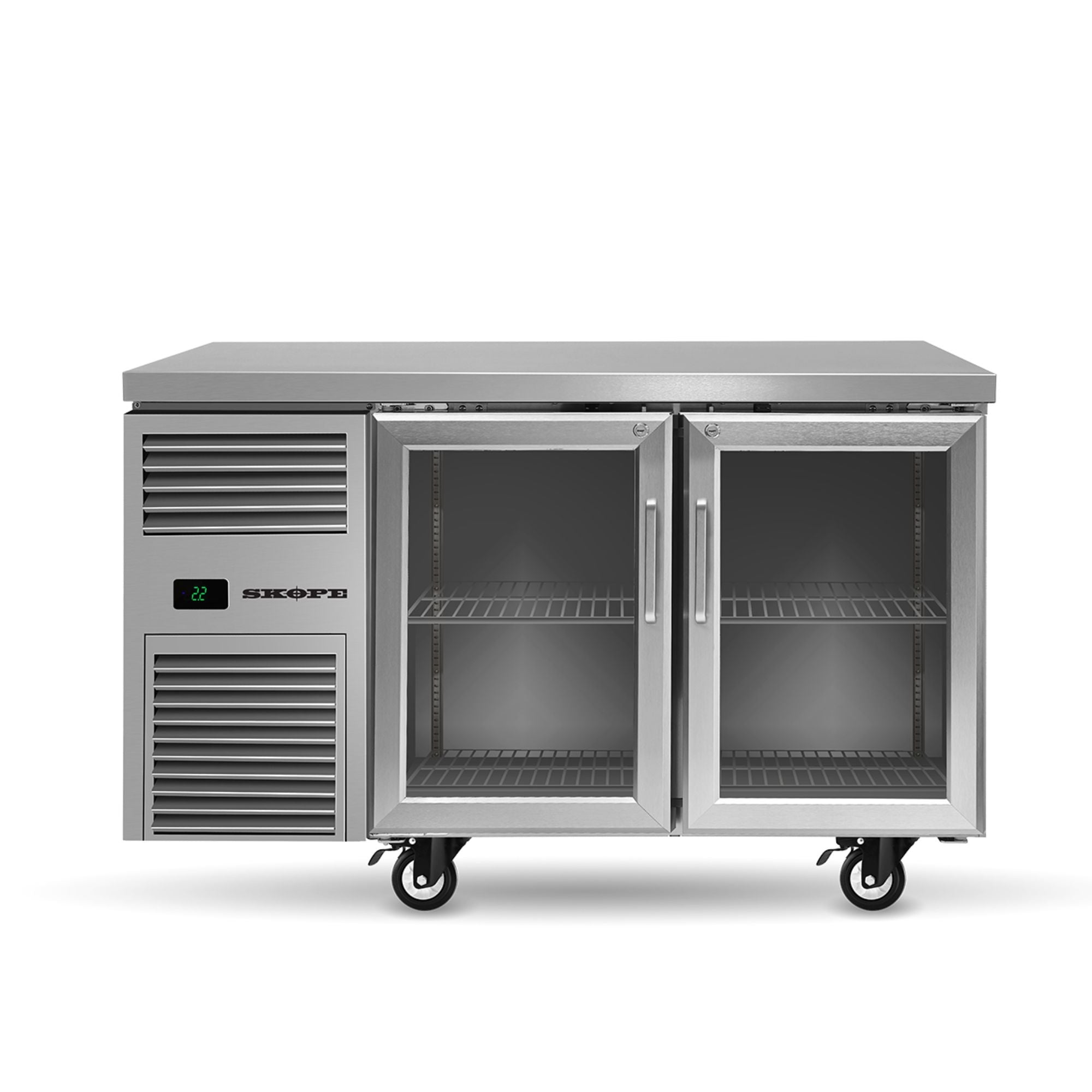

Skope RF7.UBR.2.GD ReFlex 2 Glass Door Underbench GN 1/1 Compatible Fridge

The Skope RF7.UBR.2.GD is the first glass door underbench model in the ReFlex series, combining full product visibility with the durability and energy efficiency that Skope commercial refrigeration is known for. Built from 304 AISI stainless steel inside and out, with a stainless steel benchtop as standard, it is engineered to handle the rigours of back-of-house operation in restaurants, cafes, bars, quick service restaurants, hotels, schools, and aged care facilities.

Powered by the SCS Connect controller with SKOPE-connect compatibility via Bluetooth wireless technology, the RF7.UBR.2.GD lets operators switch between purpose-built temperature presets for general food safety, poultry, red meat, fresh seafood, live seafood, dairy, chocolate, drinks, and desserts directly from a mobile app. The removable refrigeration cartridge system simplifies servicing, while the natural R290 refrigerant keeps environmental impact to a minimum and running costs low.

Key Benefits

• Glass doors provide instant visual stock checks without opening the cabinet, speeding up service and reducing unnecessary cold-air loss.
• SKOPE-connect app control allows staff to switch between food-category temperature presets at the press of a button, supporting precise food safety compliance across diverse menu items.
• GEMS Class 4M1 rating with just 2.39 kWh per 24 hours delivers an estimated annual running cost of approximately $262, helping operators manage energy overheads.
• R290 natural refrigerant with an 80 g charge carries virtually zero global warming impact compared with synthetic alternatives, supporting sustainability goals.
• The side-mounted, integral removable refrigeration cartridge can be pulled and replaced with minimal disruption, cutting downtime during maintenance or service calls.
• GN 1/1 tray compatibility integrates directly with standard commercial kitchen workflow, eliminating the need for adaptor frames or custom trays.
• Supplied with removable castors, allowing the unit to be repositioned or pulled out for cleaning and servicing without heavy lifting.
• Self-closing, lockable double-glazed Low-E glass swing doors maintain cabinet temperature automatically and secure contents when unattended.
• Climate Class 4 (Tropical) rating and a maximum ambient operating temperature of 40°C ensure consistent performance in hot kitchen environments.

Key Features

• 304 AISI stainless steel interior and exterior construction throughout, including a stainless steel benchtop as standard.
• 2 self-closing, lockable glass swing doors featuring double glazing with double Low-E coating for improved thermal performance.
• 2 shelves per door: 1 adjustable shelf and 1 floor-mounted shelf, providing flexible storage configuration.
• GN 1/1 compatible interior accepts full-size gastronorm trays directly.
• 248 litre gross capacity across a 0.94 m² total floor area footprint.
• Side-mounted, integral, removable refrigeration cartridge (model ULKCNI-0027) for straightforward on-site servicing.
• SCS Connect controller with SKOPE-connect compatibility; Bluetooth wireless technology enables mobile app monitoring and control.
• Temperature range of 1°C to 4°C standard; adjustable from -2°C to 15°C via SKOPE-connect, with enhanced product-type presets for poultry, red meat, fresh seafood, live seafood, dairy, chocolate, drinks, desserts, and general food safety.
• R290 natural refrigerant, 80 g charge.
• Automatic defrost cycle.
• Fan-assisted cooling for even temperature distribution throughout the cabinet.
• 1 x 400 mm, 4 W door-activated LED interior light.
• GEMS Class 4M1 compliant; energy consumption 2.39 kWh/24 h.
• Maximum ambient operating temperature 40°C; Climate Class 4 (Tropical).
• Power supply: 220–240 V AC, 50 Hz, single-phase; 0.48 kW; 2.0 A current draw (unit draw 1.5 A).
• Supplied with 2 m, 10 A plug and lead (3-pin).
• Removable castors included for ease of repositioning and cleaning.
• Self-contained refrigeration system.
• Suited to restaurants and cafes, clubs, pubs and bars, quick service restaurants, hospitality venues, accommodation, schools, and medical or aged care facilities.

Specifications

• Width (mm): 1290
• Depth (mm): 730
• Height (mm): 850
• Weight (kg): 116
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 116
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 1300.0
• Capacity (Litres): 248
• Power (kW): 0.48
• Amps (A): 2
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C)
• Refrigerant: R290 / 80g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, double glazed, double Low-E, glass swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 2
• No. of Shelves: 2
• GEMS Class: 4M1
• GEMS Energy Consumption: 2.39
• GEMS Annual Running Cost: $262 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 1 x 400mm, 4W LED light
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
