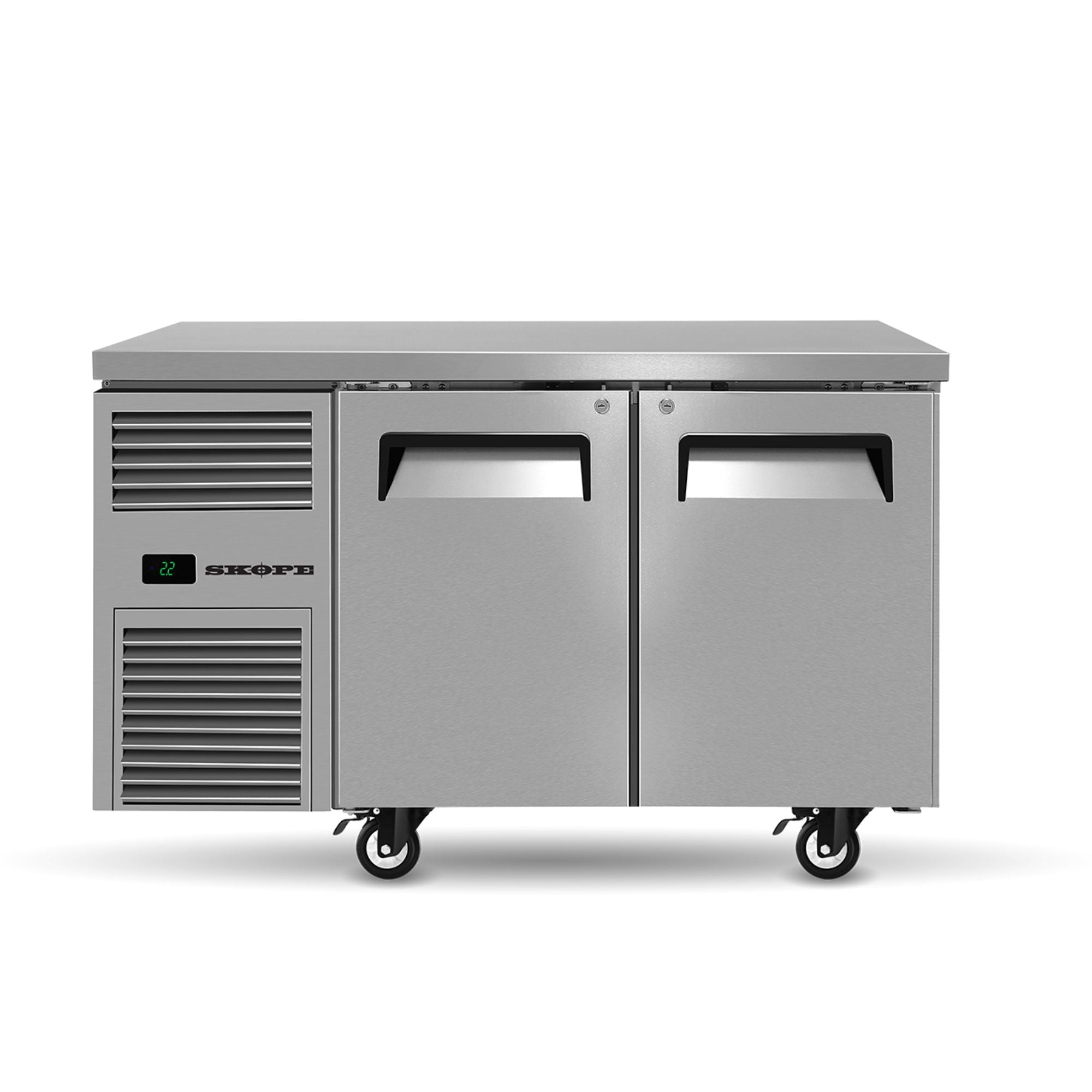

Skope RF7.UBF.2.SD ReFlex 2 Solid Door Underbench GN 1/1 Compatible Freezer

The Skope RF7.UBF.2.SD ReFlex underbench freezer combines smart Bluetooth connectivity with proven commercial durability in a compact two-door format under 1300mm wide. Constructed entirely from 304 AISI stainless steel inside and out, it accepts GN 1/1 trays directly and suits demanding back-of-house environments across restaurants, cafes, clubs, hotels, schools, aged care facilities and quick service operations where reliable bench-height frozen storage is essential.

Powered by R290 natural refrigerant and certified to GEMS Class 5L1, the RF7.UBF.2.SD delivers efficient, low-impact freezing throughout long commercial shifts. Its side-mounted removable refrigeration cartridge keeps servicing straightforward, while the integrated SKOPE-connect app gives operators instant control over temperature profiles tailored to specific ingredient categories, reducing compliance risk without manual intervention.

Key Benefits

• SKOPE-connect app control allows staff to switch instantly between dedicated temperature pre-sets for ingredient types including general food safe, poultry, red meat, various seafood categories, dairy and desserts, eliminating manual adjustment and reducing the risk of temperature non-compliance.
• GN 1/1 tray compatibility streamlines food preparation workflows, allowing trays to move directly from frozen storage to service without any decanting step.
• A compact footprint under 1300mm wide slots into tight underbench spaces while still delivering 248 litres of usable freezer capacity.
• R290 natural refrigerant with a 90g charge carries negligible global warming potential, supporting sustainability commitments and lowering the facility's environmental footprint.
• The side-mounted integral removable refrigeration cartridge simplifies servicing access and minimises operational downtime during maintenance.
• GEMS Class 5L1 certification with an annual running cost of approximately $621 keeps ongoing energy expenses competitive in busy commercial kitchens.
• Door-activated internal LED lighting combined with self-closing, lockable solid swing doors improves product visibility and security while limiting cold-air loss.
• A stainless steel benchtop is included as standard, providing an additional hygienic work surface above the unit without requiring extra fitout expenditure.
• Tropical Climate Class 4 rating with a maximum ambient tolerance of 40°C ensures consistent freezing performance even in hot kitchen environments.

Key Features

• 304 AISI stainless steel construction on both interior and exterior surfaces for durability and ease of cleaning.
• Two self-closing, lockable solid swing doors with 2 shelves per door: 1 adjustable shelf and 1 floor-mounted shelf.
• GN 1/1 compatible interior accommodates standard gastronorm trays.
• SCS Connect controller with SKOPE-connect compatibility via Bluetooth wireless technology.
• Enhanced SKOPE-connect pre-sets covering eight ingredient-specific temperature profiles: general food safe, poultry, red meat, fresh seafood, live seafood, dairy and desserts.
• Default temperature range of -21°C to -18°C; adjustable to -26°C to -12°C using SKOPE-connect.
• R290 natural refrigerant, 90g charge, with minimal environmental impact.
• Side-mounted, integral, removable freezer refrigeration cartridge (ULKDNI-0023) for straightforward servicing.
• Fan-assisted cooling with automatic defrost for consistent temperature distribution.
• 1 x 400mm, 4W LED interior light, door-activated.
• Stainless steel benchtop included as standard.
• Supplied with removable castors as standard; legs available as an option.
• Supplied with a 2m, 10 Amp plug and lead (single-phase, 220-240V AC, 50Hz).
• GEMS Class 5L1 certified; energy consumption 7.27 kWh per 24 hours.
• Maximum ambient operating temperature of 40°C, Climate Class 4 (Tropical).
• 248 litre gross capacity with a total floor area of 0.9 m².
• Self-contained refrigeration system.
• Suited to a wide range of commercial venues including restaurants, cafes, clubs, pubs, bars, hotels, accommodation venues, quick service restaurants, schools and medical or aged care facilities.

Specifications

• Width (mm): 1290
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 112
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 112
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 1300.0
• Capacity (Litres): 248
• Power (kW): 0.96
• Amps (A): 4
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: R290 / 90g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, solid swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 2
• No. of Shelves: 2
• GEMS Class: 5L1
• GEMS Energy Consumption: 7.27
• GEMS Annual Running Cost: $621 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 1 x 400mm, 4W LED light (door activated)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
