Overview

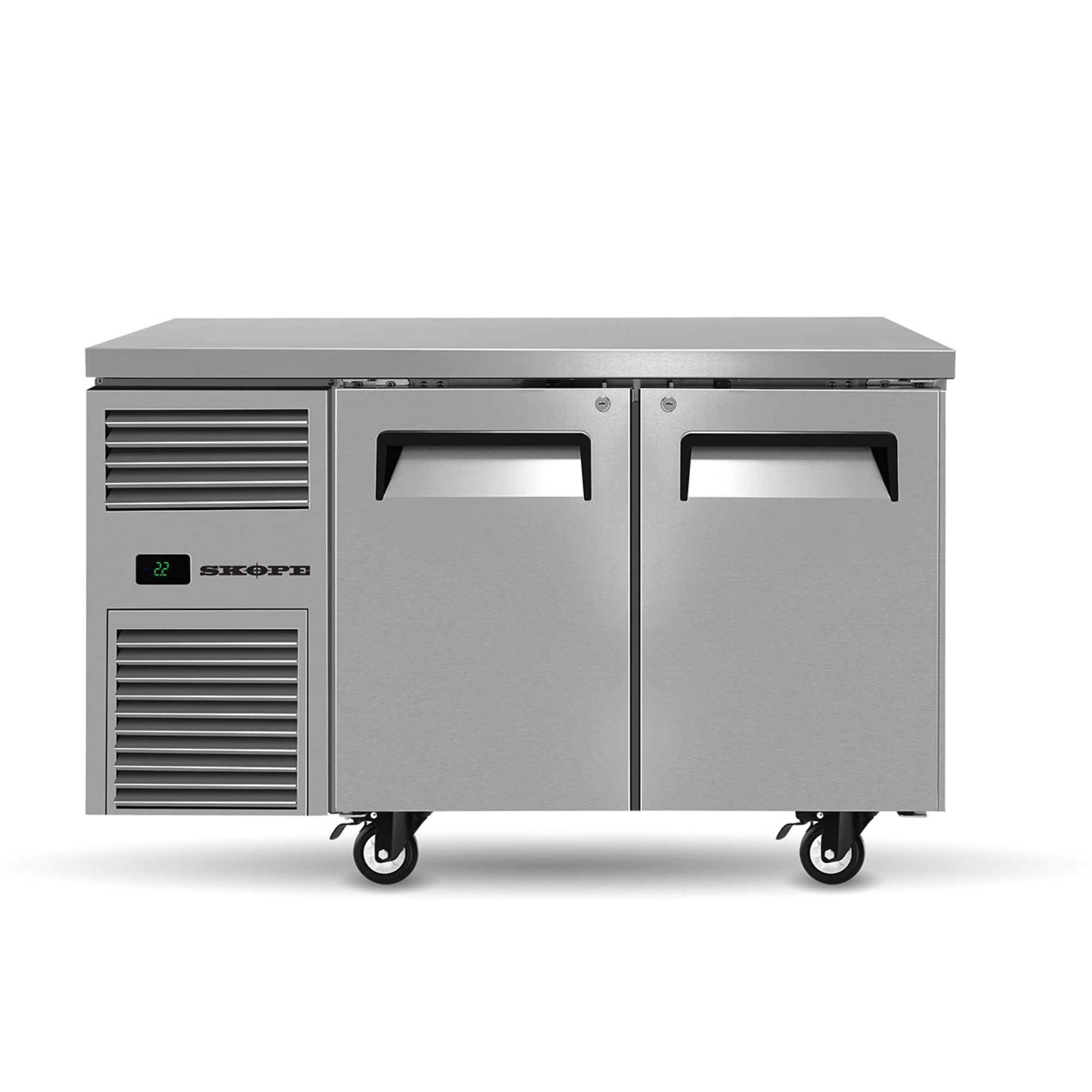

Skope RF7.UBR.2.SD ReFlex 2 Solid Door Underbench GN 1/1 Compatible Fridge

The Skope RF7.UBR.2.SD ReFlex underbench fridge delivers reliable commercial refrigeration in a compact, stainless steel package under 1300mm in length, making it ideal for space-conscious back-of-house environments. Built with 304 AISI stainless steel inside and out, it accommodates full GN 1/1 trays and suits a wide range of operations including restaurants, cafes, clubs, pubs, quick service restaurants, accommodation venues, schools, and medical or aged care facilities.

At the heart of this unit is the SKOPE-connect system, which uses Bluetooth wireless technology to let operators adjust temperature settings via a smartphone app. The SCS Connect controller includes enhanced product-type presets, allowing quick switching between temperature ranges optimised for general food safety, poultry, red meat, fresh seafood, live seafood, dairy, and desserts. Paired with an easy-to-service removable refrigeration cartridge, R290 natural refrigerant, and a GEMS Class 5M1 energy rating with an estimated annual running cost of just $204, this unit balances performance, convenience, and economy.

Key Benefits

• SKOPE-connect app control via Bluetooth lets staff switch between food-type temperature presets instantly, reducing handling risk and improving food safety compliance.
• R290 natural refrigerant with a charge of only 80g has virtually no environmental impact, supporting sustainability goals without sacrificing cooling performance.
• The removable, side-mounted refrigeration cartridge simplifies servicing and minimises downtime in busy commercial kitchens.
• GEMS Class 5M1 rating and a 0.48kW power draw keep operating costs low, with an estimated annual running cost of only $204 at $0.30/kWh.
• GN 1/1 tray compatibility streamlines food prep and storage workflows, fitting standard gastronorm containers used throughout professional kitchens.
• Climate Class 4 (Tropical) rating and a maximum ambient temperature tolerance of 40°C ensure consistent performance even in hot kitchen environments.
• A stainless steel benchtop as standard provides a hygienic, durable work surface above the unit, maximising bench space in tight layouts.
• Self-closing, lockable solid swing doors with a door-activated 4W LED interior light support food safety protocols and easy visibility of stored product.
• Supplied with castors for easy repositioning and a 2m, 10A plug-and-lead for straightforward installation with no special electrical requirements.

Key Features

• 304 AISI stainless steel interior and exterior construction for durability and hygiene in demanding back-of-house conditions.
• Stainless steel benchtop included as standard.
• 2 self-closing, lockable solid swing doors with 2 shelves per door: 1 adjustable and 1 floor-mounted.
• GN 1/1 compatible internal configuration accommodates standard gastronorm trays.
• SCS Connect controller with SKOPE-connect compatibility via Bluetooth wireless technology.
• SKOPE-connect app enables temperature adjustment and product-type presets for general food safety, poultry, red meat, fresh seafood, live seafood, dairy, and desserts.
• Temperature range of 1°C to 4°C standard; adjustable from -2°C to 15°C via SKOPE-connect.
• Side-mounted, integral, removable refrigeration cartridge (ULKCNI-0021) for easy access and servicing.
• R290 natural refrigerant, 80g charge, with minimal global warming potential.
• Automatic defrost system.
• Fan-assisted cooling for even temperature distribution throughout the cabinet.
• Self-contained refrigeration system.
• Climate Class 4 (Tropical); maximum ambient temperature 40°C.
• GEMS Class 5M1 with energy consumption of 1.86 kWh/24h and estimated annual running cost of $204 (at $0.30/kWh).
• Power draw of 0.48kW; current draw of 2.0A (including unit 1.5A).
• 220-240V AC, 50Hz single-phase power supply.
• Supplied with 2m, 10A plug and lead.
• 1 x 400mm, 4W LED interior light, door-activated.
• Total gross volume of 248 litres.
• Total floor area of 0.9m².
• Supplied with removable castors.
• Unit weight of 106kg.
• 3-year warranty.

Specifications

• Width (mm): 1290
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 106
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 106
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 1300.0
• Capacity (Litres): 248
• Power (kW): 0.48
• Amps (A): 2
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C)
• Refrigerant: R290 / 80g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, solid swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 2
• No. of Shelves: 2
• GEMS Class: 5M1
• GEMS Energy Consumption: 1.86
• GEMS Annual Running Cost: $204 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 1 x 400mm, 4W LED light (door activated)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
