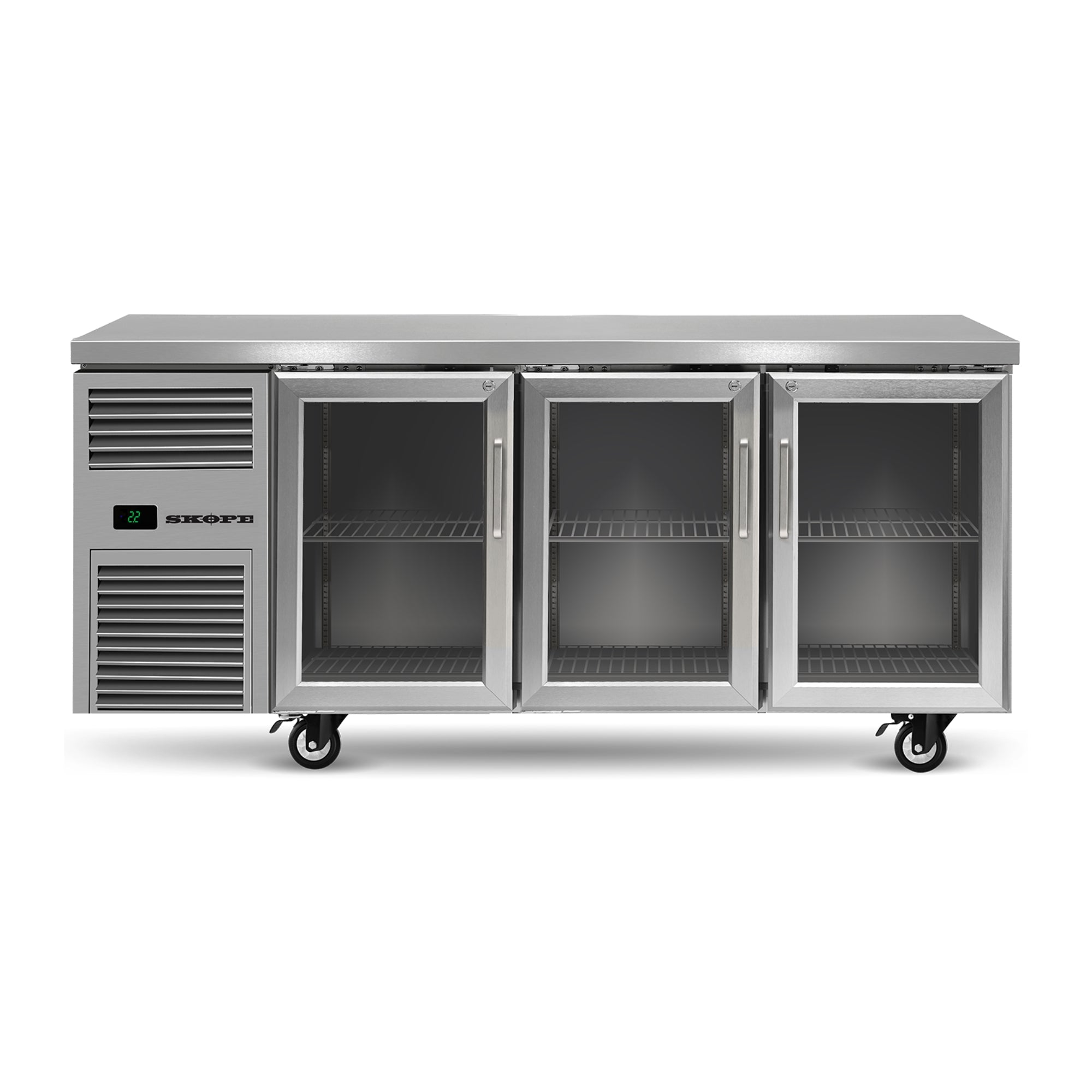

Skope RF7.UBR.3.GD ReFlex 3 Glass Door Underbench GN 1/1 Compatible Fridge

The Skope RF7.UBR.3.GD marks the debut of a glass door variant within the ReFlex underbench range, bringing full product visibility together with the rugged performance and innovation the ReFlex series is known for. Constructed throughout in 304 AISI stainless steel with a stainless steel benchtop supplied as standard, the unit is built to meet the rigorous demands of back-of-house commercial settings including restaurants, cafes, pubs, clubs, quick service outlets, accommodation providers, schools, and medical or aged care facilities.

Driven by R290 natural refrigerant and equipped with SKOPE-connect via Bluetooth wireless technology, this underbench fridge enables operators to manage temperature settings through a smartphone app. Product-type presets span a wide range of food categories, and the combination of a GEMS Class 4M1 energy rating, an easy-to-service removable refrigeration cartridge, and GN 1/1 tray compatibility makes it a highly practical choice for high-volume commercial kitchens.

Key Benefits

• Glass door visibility allows staff to identify contents at a glance without opening the doors, minimising cold air loss and improving service efficiency.
• SKOPE-connect app control via Bluetooth enables effortless remote temperature adjustments and switching between product-type presets, supporting compliance with food safety requirements.
• R290 natural refrigerant delivers minimal environmental impact, contributing to a lower carbon footprint while helping to keep energy costs down.
• The removable refrigeration cartridge system simplifies servicing and reduces downtime in busy commercial kitchens.
• GN 1/1 tray compatibility streamlines food storage and preparation workflows, removing the need for additional containers or adapters.
• GEMS Class 4M1 rating with an estimated annual running cost of approximately $413 at $0.30/kWh helps operators manage ongoing energy expenses.
• Tropical Climate Class 4 rating with a maximum ambient operating temperature of 40°C ensures reliable performance in hot kitchen environments.
• Three swing doors fitted with double-glazed Low-E glass, automatic self-closing action, and individual locks maintain consistent internal temperatures and support food safety management.
• Supplied with removable castors for straightforward repositioning and easy cleaning beneath and around the unit.

Key Features

• Inaugural glass door underbench model to join the Skope ReFlex product lineup.
• Three swing doors, each with automatic self-closing action, individual locks, and double-glazed Low-E glass panels for clear product visibility.
• 304 AISI stainless steel construction throughout, interior and exterior.
• Stainless steel benchtop included as standard.
• GN 1/1 compatible interior accepts standard gastronorm trays directly.
• Six shelves in total: two per door section, comprising one adjustable shelf and one floor-mounted shelf per section.
• 387 litre gross capacity across the three-door configuration.
• Side-mounted, integral, removable refrigeration cartridge system (model ULKCNI-0028) for straightforward servicing.
• R290 natural refrigerant, 95g charge.
• Standard temperature range 1°C to 4°C; adjustable from -2°C to 15°C via SKOPE-connect.
• Maximum ambient operating temperature of 40°C; Tropical Climate Class 4.
• SCS Connect controller with SKOPE-connect compatibility via Bluetooth wireless technology.
• Enhanced SKOPE-connect product-type presets covering general food safety, poultry, red meat, fresh seafood, live seafood, dairy, chocolate, drinks, and desserts.
• Interior lighting: 2 x 400mm, 4W LED lights.
• Automatic defrost.
• Fan-assisted cooling for even temperature distribution.
• Self-contained refrigeration system.
• Power: 0.48 kW; current draw 2.0 A (unit draw 1.5 A).
• Power supply: 220-240V AC, 50Hz, single-phase.
• Supplied with 10 Amp, 3-pin plug and lead.
• GEMS Class 4M1; GEMS energy consumption 3.77 kWh/24h; estimated annual running cost $413 p.a. at $0.30/kWh.
• Total floor area: 1.28 m².
• Supplied with removable castors.
• Dimensions: 1750mm W x 730mm D x 855mm H; weight 135 kg.
• Suited to restaurants, cafes, clubs, pubs, quick service outlets, accommodation providers, schools, and medical or aged care facilities.

Specifications

• Width (mm): 1750
• Depth (mm): 730
• Height (mm): 850
• Weight (kg): 135
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 135
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 1800.0
• Capacity (Litres): 387
• Power (kW): 0.48
• Amps (A): 2
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C)
• Refrigerant: R290 / 95g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, double glazed, double Low-E, glass swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 3
• No. of Shelves: 2
• GEMS Class: 4M1
• GEMS Energy Consumption: 3.77
• GEMS Annual Running Cost: $413 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 2 x 400mm, 4W LED light
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
