Overview

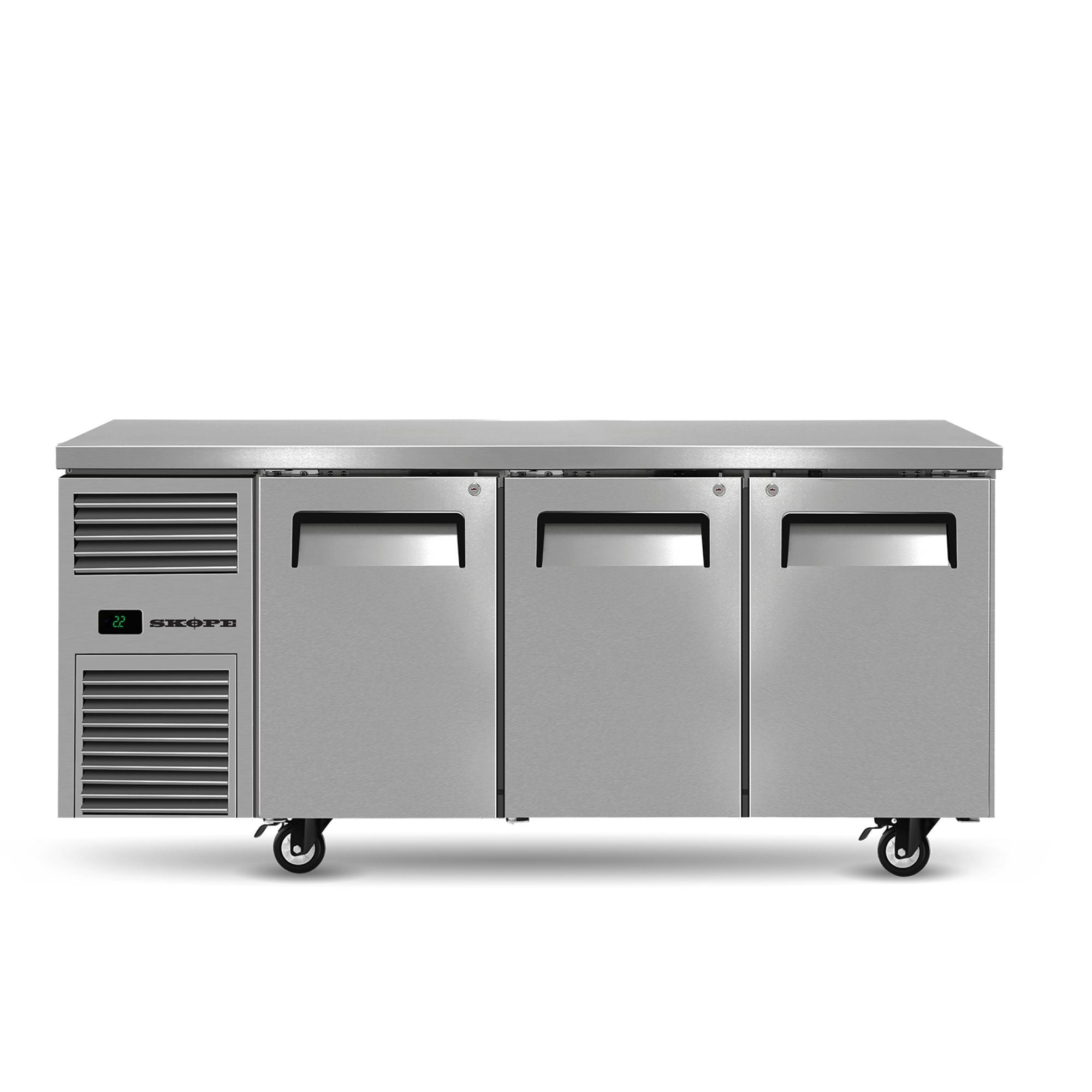

Skope RF7.UBF.3.SD ReFlex 3 Solid Door Underbench GN 1/1 Compatible Freezer

The Skope RF7.UBF.3.SD ReFlex is a three-door underbench freezer purpose-built for fast-paced commercial kitchens, delivering 387 litres of GN 1/1 compatible storage within a compact 1.23 m² floor footprint. Built entirely from 304 AISI stainless steel inside and out, it is engineered to withstand the rigours of back-of-house environments across a wide range of food service operations including restaurants, cafes, pubs, clubs, aged care facilities, schools, accommodation venues and quick service outlets. Winner of the FCSI Best New Hospitality Equipment Product award in 2019, this unit combines proven SKOPE build quality with genuinely practical innovations.

At the heart of the ReFlex is SKOPE-connect technology, which uses Bluetooth wireless connectivity and an SCS Connect controller to let operators switch temperature ranges via a user-friendly app at the press of a button. Pre-set product-type profiles are available for a broad range of perishables, covering general food safety compliance, poultry, red meat, seafood (both fresh and live), dairy products and desserts, making it straightforward to align storage conditions with whatever produce is on hand. The unit runs on R290 natural refrigerant with a charge of just 90 g, minimising environmental impact, while GEMS Class 4L1 certification and cutting-edge power economy help keep ongoing running costs low.

Key Benefits

• SKOPE-connect Bluetooth app allows instant temperature adjustment between product-specific presets, removing guesswork and supporting food safety compliance across diverse produce types.
• GN 1/1 tray compatibility means standard gastronorm containers slot straight in, reducing the need for decanting and speeding up service during busy periods.
• Underbench height and 1.23 m² floor footprint maximise kitchen space efficiency, keeping frozen storage accessible at prep level without consuming valuable standing room.
• R290 natural refrigerant with a minimal 90 g charge has virtually no global warming impact, supporting sustainability goals and future-proofing the unit against refrigerant regulation changes.
• Side-mounted, integral removable refrigeration cartridge simplifies servicing and reduces downtime, as the refrigeration module can be accessed and replaced without major disruption to kitchen operations.
• Door-activated LED interior lighting (2 x 400 mm, 4 W) illuminates stored product the moment a door opens, improving stock visibility and reducing time spent searching during service.
• Self-closing, lockable solid swing doors maintain consistent internal temperatures, enhance security for high-value produce, and reduce accidental energy losses.
• Stainless steel benchtop included as standard, providing a hygienic and immediately usable prep surface directly above the unit.
• GEMS Class 4L1 rating with an annual running cost of approximately $919 at $0.30/kWh reflects strong energy efficiency for a three-door commercial freezer operating in up to 40°C ambient conditions.

Key Features

• Three self-closing, lockable solid swing doors with 2 shelves per door: 1 adjustable and 1 floor-mounted (6 shelves total).
• Full 304 AISI stainless steel interior and exterior construction for durability and ease of cleaning.
• Stainless steel benchtop supplied as standard.
• GN 1/1 compatible interior accommodates standard gastronorm trays.
• 387-litre gross capacity across a 1.23 m² floor area.
• SKOPE-connect compatible SCS Connect controller with Bluetooth wireless technology for remote temperature monitoring and adjustment via app.
• Enhanced product-type temperature presets spanning general food safety, poultry, red meat, a range of seafood categories including both fresh-catch and live product, dairy products and desserts.
• Temperature range of -21°C to -18°C standard; adjustable from -26°C to -12°C via SKOPE-connect.
• Rated for operation in ambient temperatures up to 40°C (Climate Class 4 Tropical).
• R290 natural refrigerant, 90 g charge, with negligible environmental impact.
• Side-mounted, integral, removable freezer refrigeration cartridge (model ULKDNI-0023) for easy serviceability.
• Automatic defrost cycle included.

Specifications

• Width (mm): 1750
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 136
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 136
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 1800.0
• Capacity (Litres): 387
• Power (kW): 0.96
• Amps (A): 4
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C)
• Refrigerant: R290 / 90g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, solid swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 3
• No. of Shelves: 2
• GEMS Class: 4L1
• GEMS Energy Consumption: 9.45
• GEMS Annual Running Cost: $919 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 2 x 400mm, 4W LED light (door activated)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
