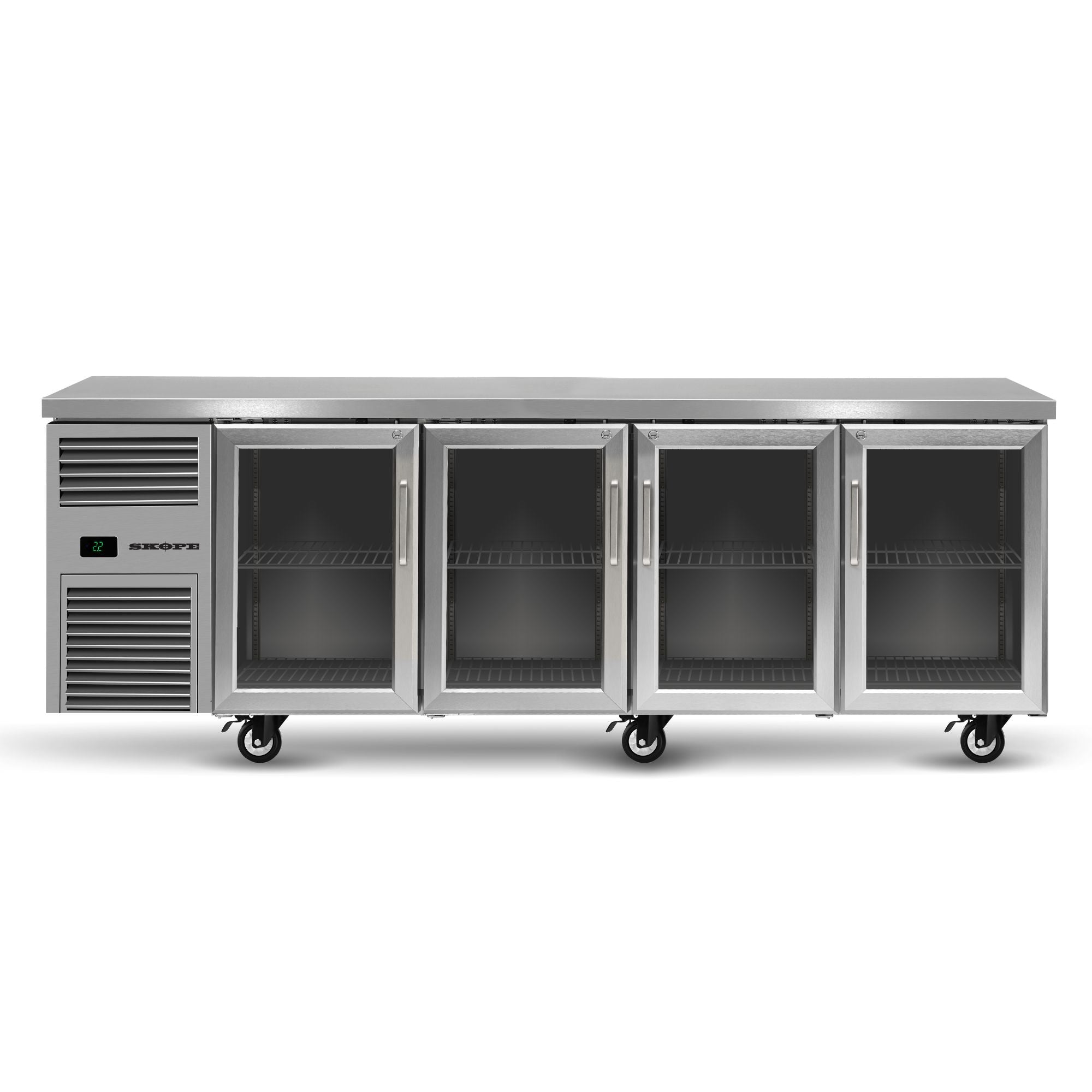

Skope RF7.UBR.4.GD ReFlex 4 Glass Door Underbench GN 1/1 Compatible Fridge

The Skope RF7.UBR.4.GD is a 526-litre, 4-door underbench fridge from the ReFlex series, built for demanding commercial kitchen environments. Constructed with 304 AISI stainless steel on both the interior and exterior, it combines a robust benchtop-ready footprint with full glass door visibility, making it ideal for back-of-house cold storage in restaurants, cafes, clubs, bars, quick service restaurants, hotels, schools, aged care facilities and more.

Powered by R290 natural refrigerant and equipped with a SKOPE-connect compatible SCS controller with Bluetooth wireless technology, this unit delivers precise, programmable temperature management across a wide range of food categories. Its side-mounted, removable refrigeration cartridge simplifies servicing, while GEMS Class 4M1 certification and an annual running cost of approximately $490 confirm its credentials as an energy-efficient, environmentally responsible refrigeration solution.

Key Benefits

• Glass doors provide instant visual stock checks without opening the unit, reducing cold air loss during busy service periods.
• SKOPE-connect compatibility lets operators switch between pre-set temperature profiles for food types such as general food safe, fresh seafood, live seafood, poultry, red meat, dairy, chocolate, drinks and desserts at the touch of a button.
• The removable, side-mounted refrigeration cartridge allows fast on-site servicing with minimal downtime, keeping the kitchen running smoothly.
• R290 natural refrigerant carries a near-zero global warming potential, helping operators reduce their environmental footprint and meet sustainability commitments.
• GN 1/1 tray compatibility streamlines food preparation workflows by allowing standard gastronorm trays to be stored directly inside without additional adapters.
• A tropical Climate Class 4 rating and 40°C maximum ambient temperature tolerance ensure reliable performance in hot, high-humidity commercial kitchen conditions.
• The stainless steel benchtop is included as standard, providing a hygienic, durable work surface above the unit and maximising the value of the footprint.
• Three interior LED lights (3 × 400 mm, 4 W each) illuminate stored product clearly, supporting both stock visibility and a professional presentation.
• Supplied with castors for straightforward repositioning during cleaning or kitchen reconfiguration.

Key Features

• 526-litre gross capacity across 4 self-closing, lockable, double-glazed, double Low-E glass swing doors.
• 304 AISI stainless steel interior and exterior construction for hygienic, corrosion-resistant durability.
• Stainless steel benchtop included as standard.
• 2 shelves per door: 1 adjustable and 1 floor-mounted, giving 8 shelves in total.
• GN 1/1 compatible interior accommodates standard gastronorm trays directly.
• Side-mounted, integral, removable refrigeration cartridge (part number ULKCNI-0028) for easy field servicing.
• R290/95 g natural refrigerant with near-zero environmental impact.
• Temperature range of 1°C to 4°C standard; adjustable from -2°C to 15°C via SKOPE-connect.
• SCS Connect controller with SKOPE-connect compatibility and Bluetooth wireless technology.
• Multiple SKOPE-connect pre-sets covering general food safe, fresh seafood, live seafood, poultry, red meat, dairy, chocolate, drinks and desserts.
• Fan-assisted cooling for even temperature distribution throughout the cabinet.
• Automatic defrost cycle.
• 3 × 400 mm, 4 W interior LED lights for clear product illumination.
• GEMS Class 4M1 certified; energy consumption of 4.47 kWh/24 h; estimated annual running cost of $490 (at $0.30/kWh).
• Maximum ambient operating temperature of 40°C; Climate Class 4 (Tropical).
• Current draw of 2.0 A (unit draw 1.5 A); 0.48 kW electrical power.
• 220–240 V AC, 50 Hz single-phase power supply; supplied with a 10 A plug and 2 m lead.
• Total floor area of 1.612 m².
• Supplied with removable castors for ease of repositioning.
• Unit weight of 167 kg.

Specifications

• Width (mm): 2210
• Depth (mm): 730
• Height (mm): 850
• Weight (kg): 167
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 155
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 2200.0
• Capacity (Litres): 526
• No. of Doors: 4
• Door Type: Self-closing, lockable, double glazed, double Low-E, glass swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Shelves: 2
• Power (kW): 48
• Amps (A): 2
• Power Cord: Supplied with a 10 amp plug and 2m lead
• Power Supply: 220-240 volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C)
• Refrigerant: R290/95g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• GEMS Class: 4M1
• GEMS Energy Consumption: 4.47
• GEMS Annual Running Cost: $490 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 3 × 400mm, 4W LED lights
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
