Overview

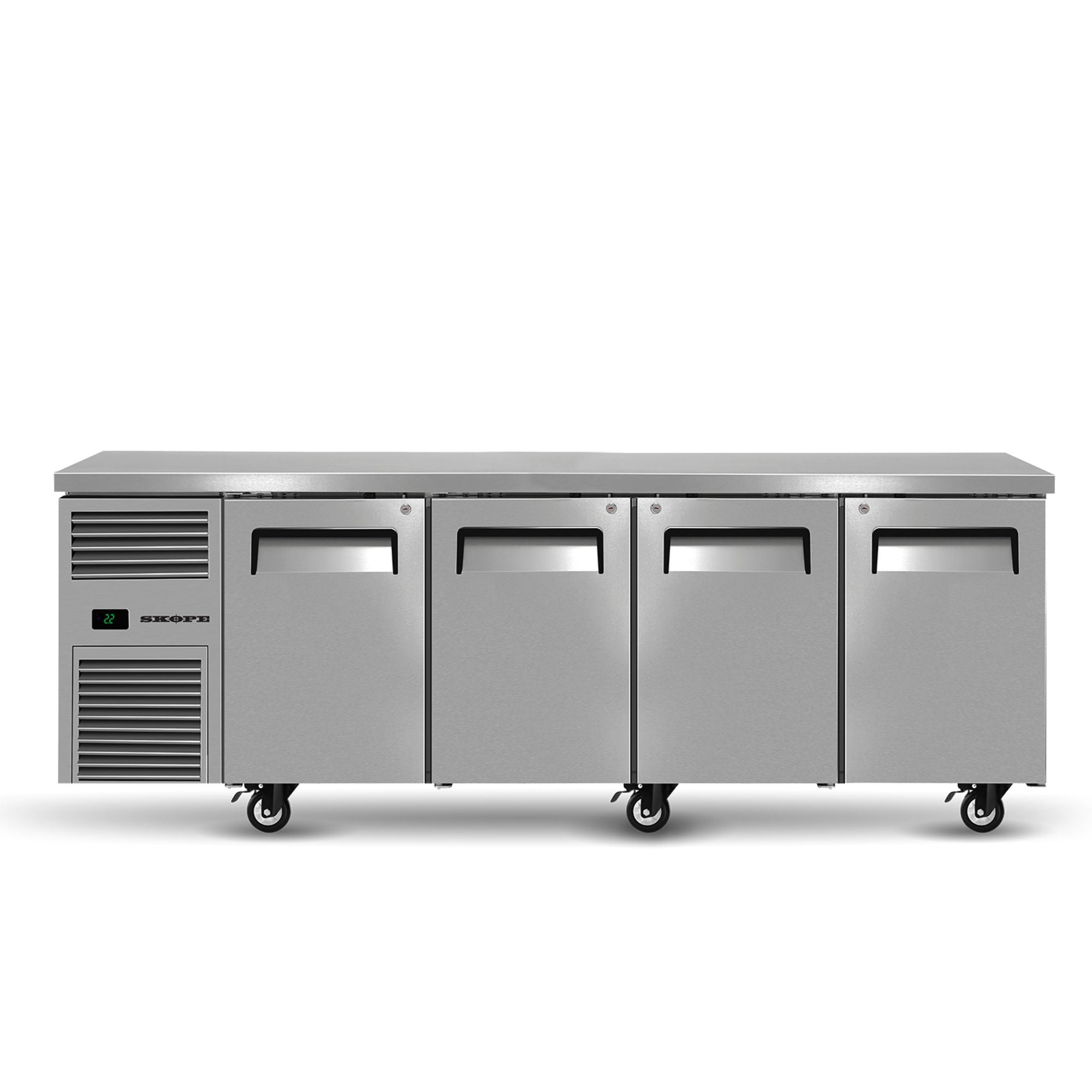

Skope RF7.UBR.4.SD ReFlex 4 Solid Door Underbench GN 1/1 Compatible Fridge

The Skope RF7.UBR.4.SD ReFlex is a 526-litre, four solid door underbench refrigerator engineered for high-demand commercial kitchen environments. Built entirely from 304 AISI stainless steel inside and out across a 1.55 m² floor footprint, it sits neatly beneath a standard workbench while accepting full GN 1/1 trays, making it a practical cold storage solution for operations including restaurants, cafes, clubs, pubs, quick service outlets, accommodation venues, schools, aged care and medical facilities.

Temperature management is handled through the SCS Connect controller, which pairs with the SKOPE-connect smartphone app over Bluetooth wireless technology for remote monitoring and adjustment. Dedicated product-type modes allow staff to switch instantly between pre-configured temperature profiles covering general food safety, poultry, red meat, fresh produce, seafood of all varieties, dairy products and desserts, all without guesswork. The unit operates on R290 natural refrigerant with a 95 g charge, and its side-mounted refrigeration cartridge is designed to be fully removable for straightforward servicing.

Key Benefits

• SKOPE-connect app control via Bluetooth enables remote temperature monitoring and adjustment from a smartphone, reducing the need for manual checks during busy service periods.
• Seven dedicated product-type pre-sets, covering categories from poultry and red meat through to seafood varieties, dairy and desserts, let staff dial in the correct temperature range instantly to support food safety compliance.
• GN 1/1 compatibility means standard gastronorm trays slide straight in, streamlining preparation and service workflows without requiring adapters.
• The removable, side-mounted refrigeration cartridge simplifies servicing and reduces downtime, as the unit can be maintained without full disassembly.
• R290 natural refrigerant carries a near-zero global warming potential, helping operations reduce their environmental footprint and meet sustainability targets.
• A GEMS Class 5M1 energy rating with consumption of just 3.77 kWh per 24 hours keeps running costs low, estimated at $413 per year at $0.30/kWh.
• Self-closing, lockable solid swing doors help maintain consistent cabinet temperatures during busy service, protecting product quality and reducing compressor workload.
• Door-activated LED interior lighting improves product visibility and identification without adding unnecessary heat load to the cabinet.
• Supplied on castors as standard, the unit can be repositioned easily for cleaning or kitchen reconfiguration.

Key Features

• Four self-closing, lockable solid swing doors with 2 shelves per door: 1 adjustable shelf and 1 floor-mounted wire grid
• 526-litre gross internal volume across a 1.55 m² floor footprint
• 304 AISI stainless steel interior and exterior construction throughout
• Stainless steel benchtop included as standard
• GN 1/1 tray compatible internal configuration
• Side-mounted, integral, removable refrigeration cartridge (model ULKCNI-0022) for easy servicing
• SCS Connect controller, compatible with SKOPE-connect app via Bluetooth wireless technology
• SKOPE-connect product-type pre-sets: general food safety, poultry, red meat, fresh seafood, live seafood, dairy and desserts
• Temperature range 1°C to 4°C standard; adjustable -2°C to 15°C via SKOPE-connect
• R290 natural refrigerant, 95 g charge
• Automatic defrost system
• Fan-assisted cooling for even temperature distribution throughout the cabinet
• Maximum ambient operating temperature 40°C; Climate Class 4 (Tropical)
• 3 x 400 mm, 4 W door-activated LED interior lights
• GEMS Class 5M1 rated; energy consumption 3.77 kWh/24h; estimated annual running cost $413 p.a. at $0.30/kWh
• Power draw 0.48 kW / 2.0 A (unit 1.5 A); 220-240 V a.c., 50 Hz, single-phase supply
• Supplied with 2 m, 10 A plug and lead
• Self-contained refrigeration system
• Supplied on castors as standard; legs available as an optional alternative
• Suited to restaurants, cafes, clubs, pubs, quick service outlets, hospitality and accommodation venues, schools, and medical and aged care facilities

Specifications

• Width (mm): 2210
• Depth (mm): 700
• Height (mm): 850
• Weight (kg): 155
• Colour: Stainless Steel
• Gas Type: R290
• Shipping Weight: 155
• Packed Width (mm): 700.0
• Packed Height (mm): 900.0
• Packed Depth (mm): 2200.0
• Capacity (Litres): 526
• Power (kW): 0.48
• Amps (A): 2
• Power Cord: Supplied with 2m, 10 Amp plug and lead
• Power Supply: 220-240 Volts a.c. 50 Hz, single phase supply
• Refrigeration Type: Self-Contained
• Max Ambient Temp (°C): 40°C
• Temperature Range: 1°C to 4°C (adjustable with SKOPE-connect -2°C to 15°C)
• Refrigerant: R290 / 95g (natural refrigerant)
• Defrost Type: Automatic
• Climate Class: 4 (Tropical)
• Cooling Type: Fan-assisted
• Door Type: Self-closing, lockable, solid swing doors
• Shelf Configuration: 2 per door - 1 adjustable, 1 floor mounted
• Body Material: 304 AISI stainless steel interior and exterior
• Material: 304 Stainless Steel
• No. of Doors: 4
• No. of Shelves: 2
• GEMS Class: 5M1
• GEMS Energy Consumption: 3.77
• GEMS Annual Running Cost: $413 p.a. (@ $0.30/kWh)
• Warranty (months): 3 Year
• Country of Origin: China
• Energy Consumption (kWh/24h): GEMS Certified
• Interior Lighting: 3 x 400mm, 4W LED light (door activated)
• Control Type: SCS Connect (SKOPE-connect compatible)
• Connectivity: Bluetooth® wireless technology
